CRL 105° No Hold Open Overhead Concealed Closer, End-Load, ADA A

• Center-hung end-load hardware package for doors with 1" deep top rails
• For doors with 1" (25 mm) top rail depth
• Adjustable dual-purpose bottom pivot set for floor or threshold mounting
• U.L. Listed with a five year limited warranty

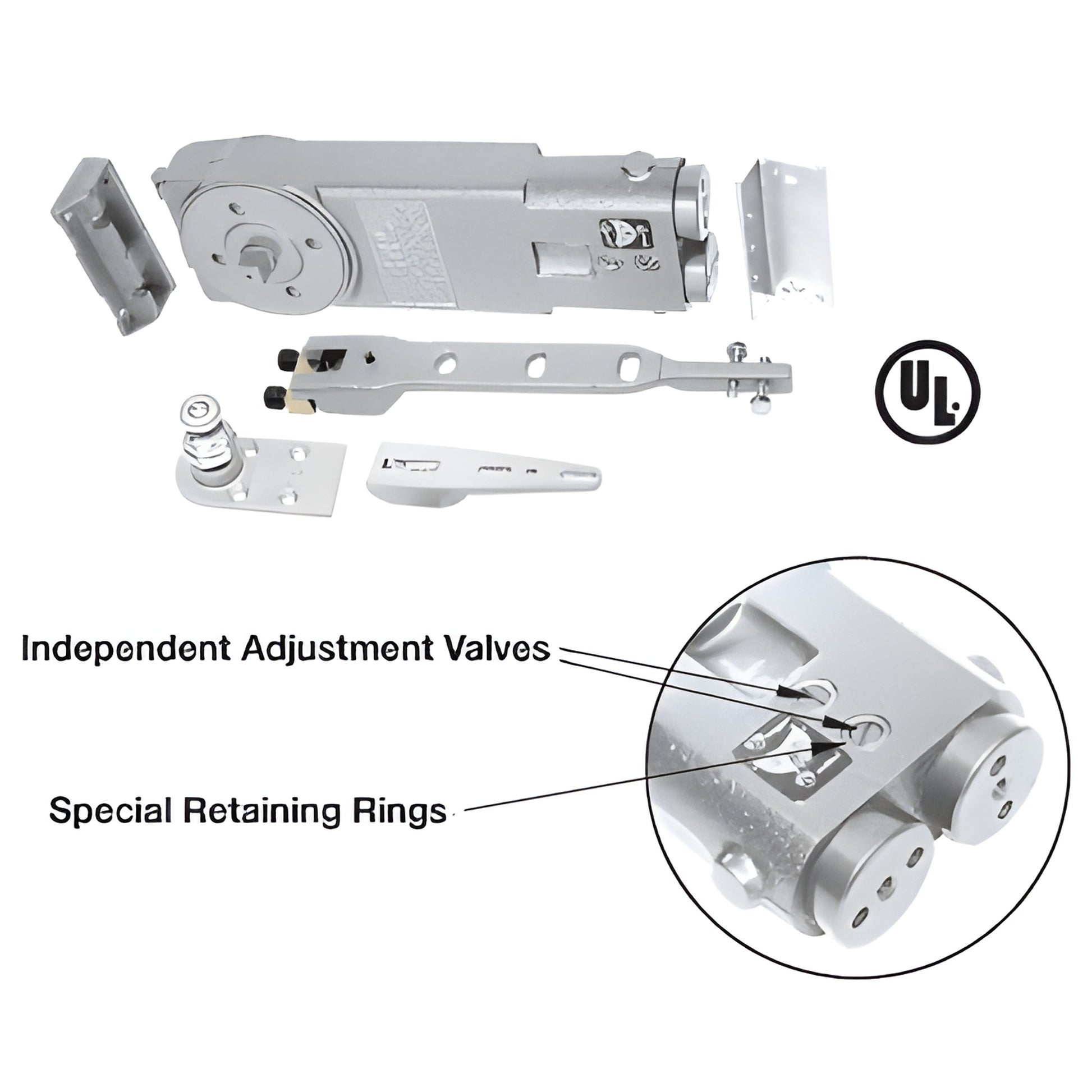

These CRL Overhead Door Closer Kits (SKU: CRL8972A) include a medium spring-size door closer, mounting clips, a Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set. The closer body fits into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is suitable as an overhead concealed door closer for commercial aluminum storefronts and entry doors.

Independent Adjustment Valves
Non-critical valves provide independent control of closing speed and latching speed for precise operation.

Special Retaining Rings
Retaining rings prevent the adjustment valve screws from being backed completely out of the door closer body.

Both 90° and 105° hold-open and no-hold-open models are available. Closers with different spring sizes, additional hardware options, and mounting clip/accessory kits are also offered to match site requirements.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the maximum allowable door swing.

NOTE: Although A.D.A. Series door closers comply with A.D.A. specified opening forces, they may not provide sufficient spring power to control and close the door under all site conditions or with larger/heavier doors.

Product Warning:
Closers set to comply with A.D.A. opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This closer is not to be used for doors weighing in excess of 200 lbs. (91 kg) or wider than 36" (914 mm).

Order the CRL8972A center-hung end-load overhead door closer kit today to ensure reliable, adjustable closing performance—contact CRL Customer Service to confirm fit and options.
