CRL Concealed Overhead Door Closer 105Β° Hold-Open, Side-Load ADA GE
CRL Concealed Overhead Door Closer 105Β° Hold-Open, Side-Load ADA GE
Regular price
$198.80 CAD
Regular price
Sale price
$198.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8970GE
Shipping Weight: 11.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105Β°
Includes
CRL6970, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
Package Type
Side load ADA GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8770GE
Spindle
1/2
Spring Size
8.5
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (12.7 mm) top rail depth
- Adjustable side-load bottom pivot set for threshold mounting (GE model)
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed
CRL Overhead Door Closer Kit β SKU: CRL8970GE

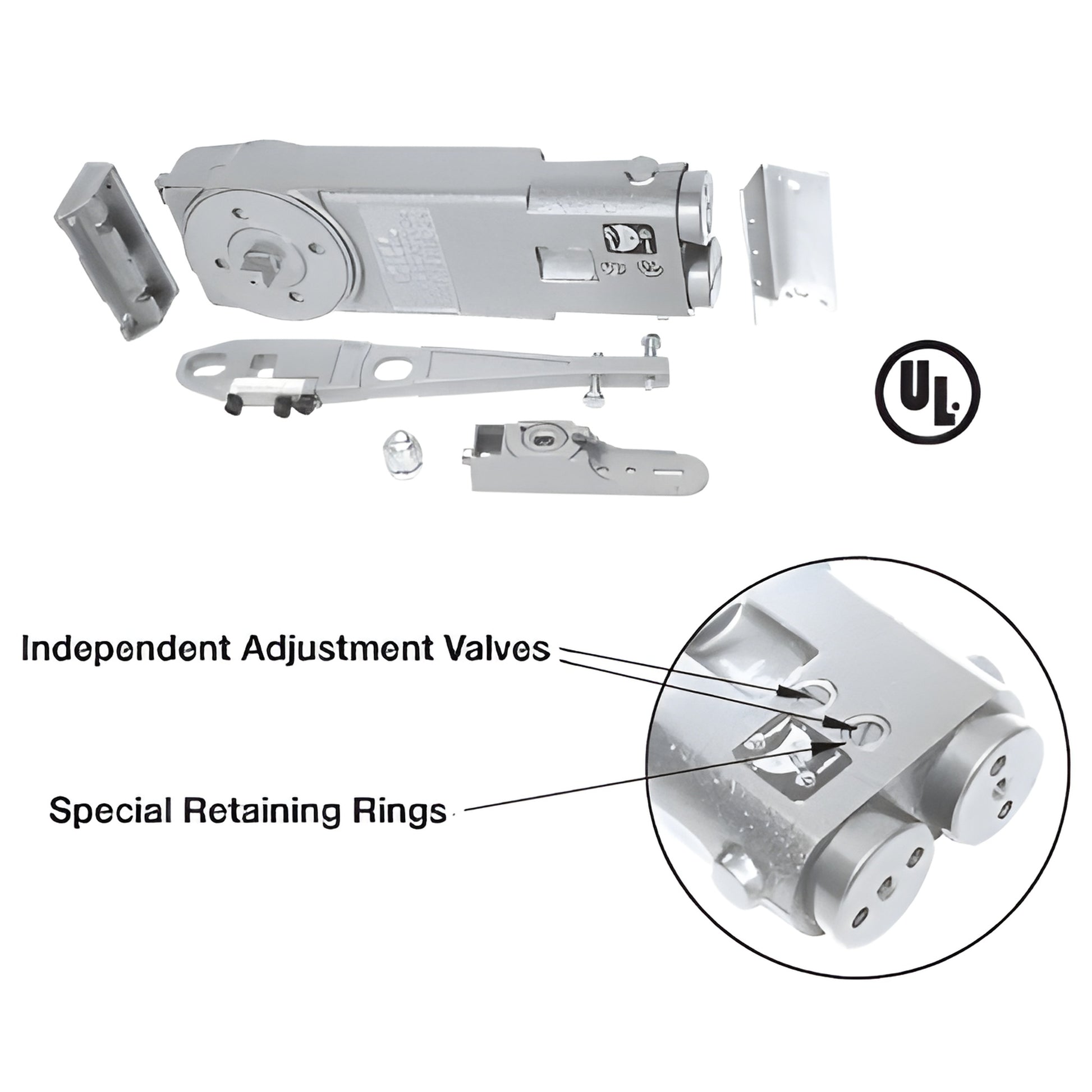

This overhead door closer kit includes a medium spring-size closer, mounting clips, a Type "S" side-load arm, and a "GE" bottom pivot set. The closer features independent, dual-action valves for precise closing speed and latching speed control and fits into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Available in both 90Β° and 105Β° hold-open or no-hold-open models. Additional spring sizes, hardware options, and concealed overhead accessories are available.
Key features & differentiators
- Independent adjustment valves β non-critical valves adjust closing and latching speeds separately for reliable, customizable door control.
- Special retaining rings β prevent valve screws from being backed out of the closer body, reducing maintenance issues.
- Designed for threshold mounting with an adjustable side-load bottom pivot for smooth operation on ADA-compliant entrances.
Important notes & limitations
- An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable swing.
- Although ADA-series door closers comply with ADA opening force limits, site conditions and door size may affect whether the closer provides adequate spring power.
- Not for use on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm).
Product warning: Closers set to meet ADA opening force requirements may not provide sufficient spring power to control and close certain doors due to varying site conditions and door size.
Order SKU CRL8970GE today to get an adjustable overhead door closer kit with precision valves and retaining rings β contact us or add to cart to get started.
