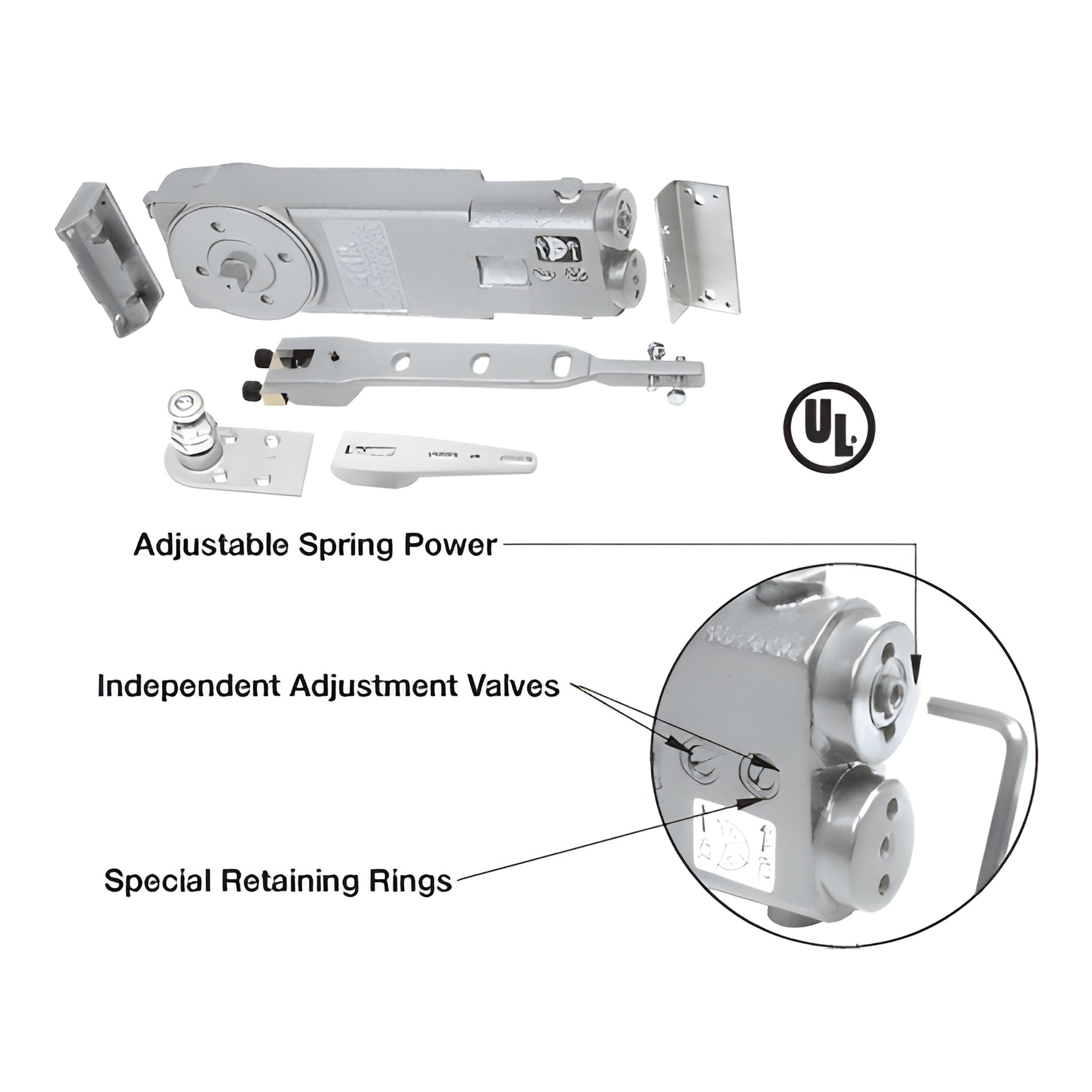

• CRL8772A adjustable overhead concealed door closer kit - silver aluminum body, arm, pivot and mounting hardware.
1 2

CRL

CRL 105Β° Concealed Overhead Door Closer - Adjustable, No Hold Open

CRL 105Β° Concealed Overhead Door Closer - Adjustable, No Hold Open

$276.91 CAD
$276.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CRL8772A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6772, CRL8010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8972A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes

Overview

  • Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
  • Adjustable end-load bottom pivot set for floor or threshold mounting
  • For doors with 1" (25 mm) top rail depth
  • 5 Year Limited Warranty
  • UL Listed

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8772A) is an overhead concealed door closer engineered for ADA opening force compliance and retrofit flexibility. Offered as a body-only unit with mounting clips to replace non-adjustable closers, or as complete packages including the door closer body, mounting clips, Type "S" side-load arm or Type "A" end-load arm, and your choice of "DP" adjustable dual-purpose bottom pivot set or "GE" pivot set. Ideal long-tail keyword focus: adjustable concealed door closer for ADA doors, overhead concealed door closer for storefronts and commercial entrances.

Adjustable Spring Power
Allows spring tension adjustment from a minimum of 8-1/2 lbs. opening force up to a medium spring size to match site conditions and door weight.

Independent Adjustment Valves
Non-critical dual-action valves independently control closing speed and latching speed for precise, field-tunable operation.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed completely out of the door closer body, reducing maintenance issues.

Available in both 90Β° and 105Β° hold-open models and no-hold-open models. Door closer bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes and hardware options are available to accommodate different door sizes and site requirements.

Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.

Product Warning:
Closers set to comply with A.D.A. specified opening forces may not provide sufficient spring power to reliably close the door under all site conditions or with larger/heavier doorsβ€”verify suitability for your application.

Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before placing your order. Product images are actual products or close representations; colors may vary by monitor.

Shop CRL8772A now to get an ADA-compliant, adjustable overhead concealed door closerβ€”contact us for retrofit options and volume pricing.
