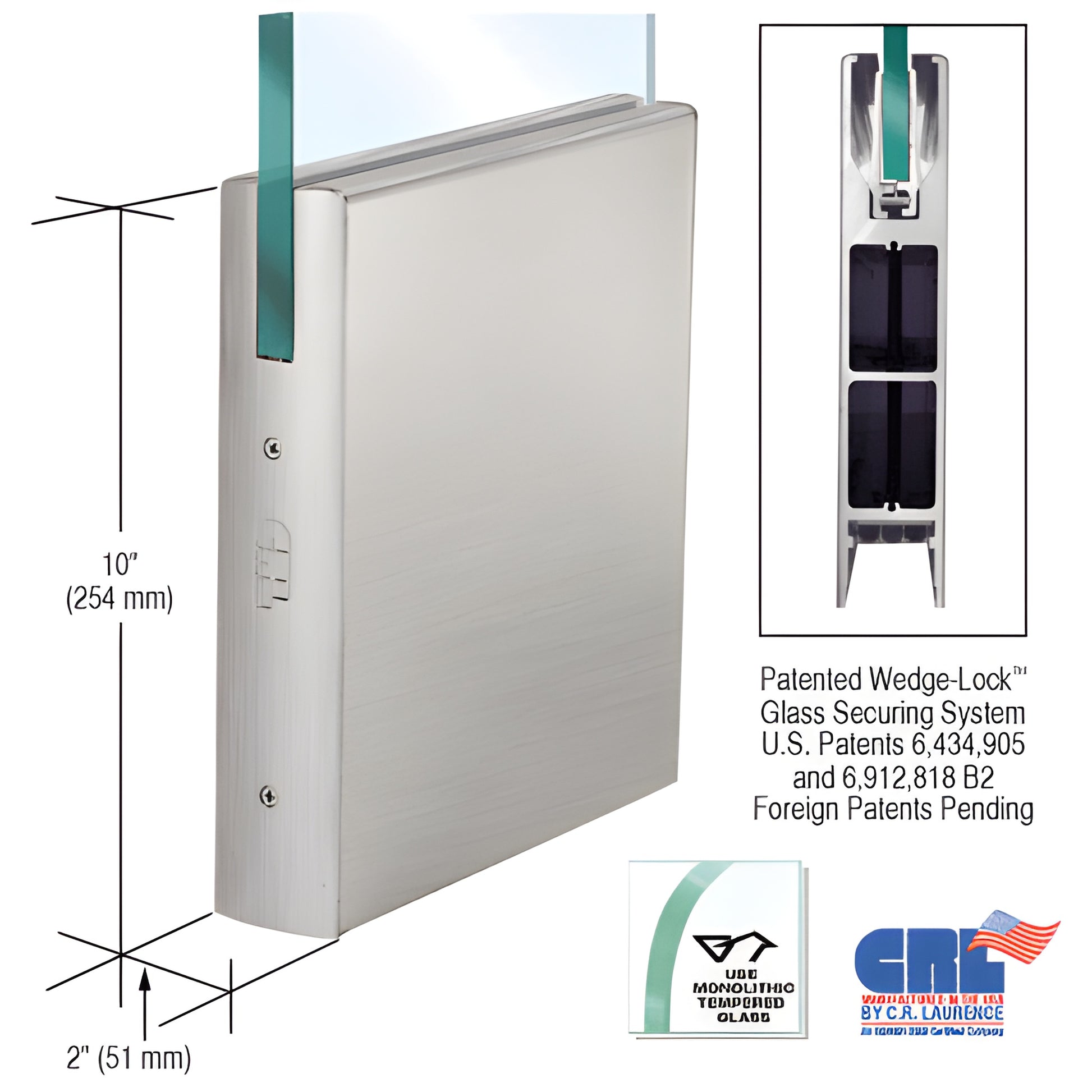

CRL 10in Brushed Stainless Square Rail for 1/2in Glass Door - No Lock

• Custom length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit from 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SBS12C) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). The system secures the glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar tightened with socket head cap bolts. Angled extrusions engage an angled groove in the rail to generate high clamping force (over 900 lbs. in the 9" corner rail), delivering secure attachment for 1/2" tempered glass and fast, repeatable installation for commercial glass doors.

NOTE: Actual product height: 10" (254 mm)

Highlights and differentiators:

• Fast installation — experienced installers can prepare a door for installation in under ten minutes
• Completely fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System — ±1/8" (3 mm) adjustment without removing the door; standard top and bottom
• Low-profile adjustable slide allows non-standard pivot setbacks and fabrication for out-of-square openings
• Rigid single-component housing that resists shifting and maintains adjustment over time
• Internal components remain in place during installation; durable glass-securing pads for extreme environments

Installation and ordering notes:

• Comes with built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements
• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Available with factory-installed locks; keyed cylinders or thumbturns ordered separately
• End caps included in stock rail lengths; specify door rail length (including end caps) for custom lengths
• Standard Kwik-Adjust™ Pivot Alignment System included; closer arms and floor/overhead pivots are sold separately

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths upon request. Rail specifications, templates and hardware packages are available from CRL Technical Sales —
