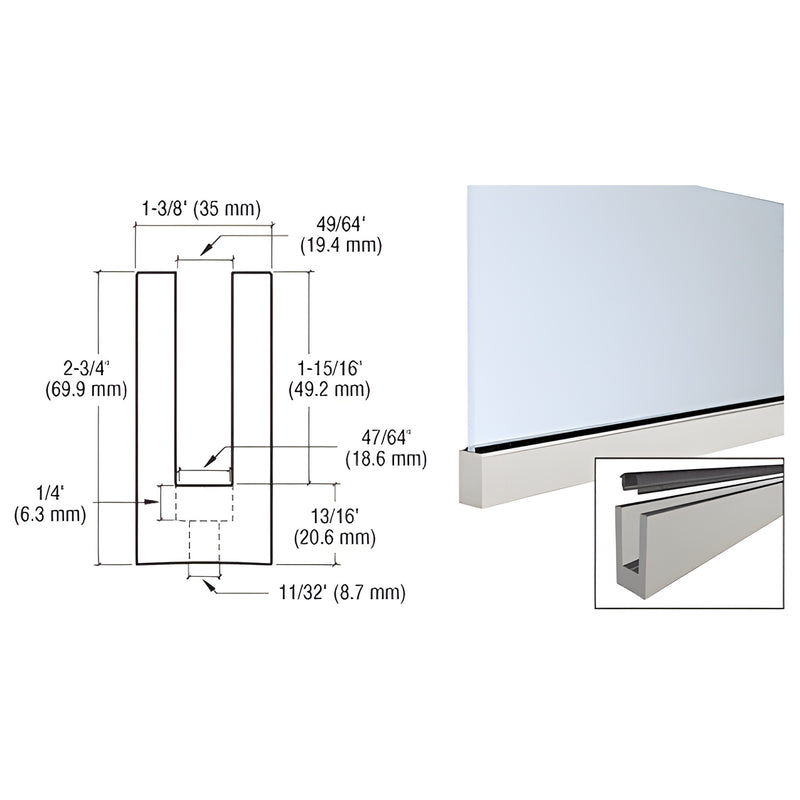

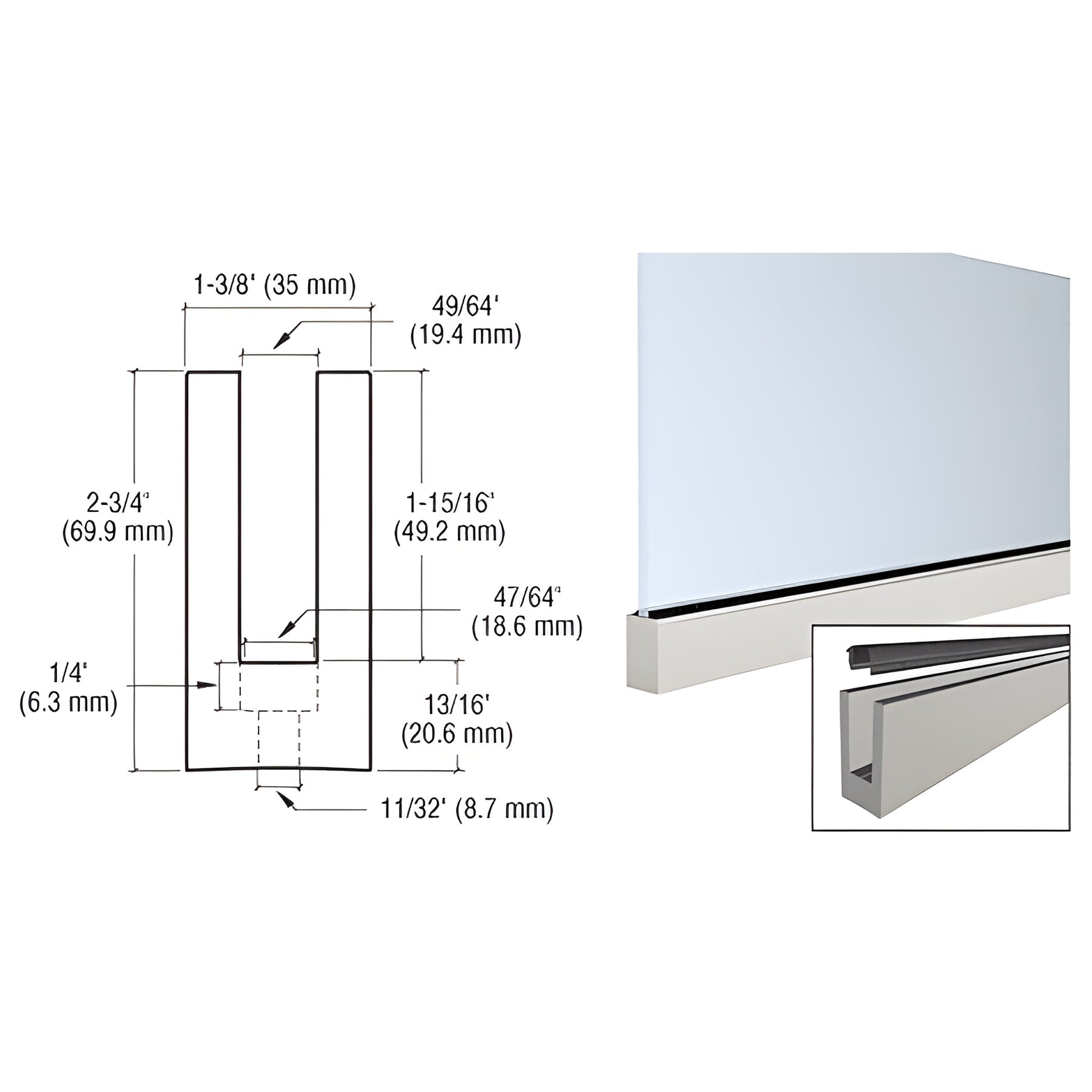

CRL 120" Aluminum Windscreen Base Shoe, Drilled, 3/8"-1/2" Glass
Item# W5B10D
Shipping Weight: 27.53 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 27.53 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Drilling Center To Center
12 in. (305 mm)
Finish/Color
Mill
Glazing Thickness - Dry Glaze
3/8 Inch
Glazing Thickness - Monolithic
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
120 in. (3048 mm)
Material
Aluminum
Profile
With Drilled Holes
Width
1-3/8 in. (35 mm)
- For 3/8" to 1/2" (10 to 12 mm) Monolithic Tempered Glass
- Available pre-drilled in 10 and 20 foot lengths
- Available in drilled and counter-bored; custom drilling to your specifications
- 6063 alloy, T52 temper
CRL standard small-profile windscreen base shoe (SKU: W5B10D) is designed for 3/8" or 1/2" (10 or 12 mm) tempered glass and is typically used as the base channel for windscreens and privacy partitions. It is not recommended for handrail/guardrail applications. Most standard glass windscreen installations use 3/8" (10 mm) monolithic tempered glass. Each panel is secured in the base shoe using CRL's patented dry-glazed TAPER-LOC® system. NOTE: If 1/2" (12 mm) glass is required, use CRL's wet-glaze method.
Product Warning:
All heavy base shoes have a stock length tolerance of ±3/4" (19 mm).
Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Order the W5B10D small-profile windscreen base shoe for tempered glass panels today to ensure a secure, low-profile installation.
