CRL 1202 Brushed Stainless Custom Glass-to-Glass Gate In-Rail Closer
CRL 1202 Brushed Stainless Custom Glass-to-Glass Gate In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202G3BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)

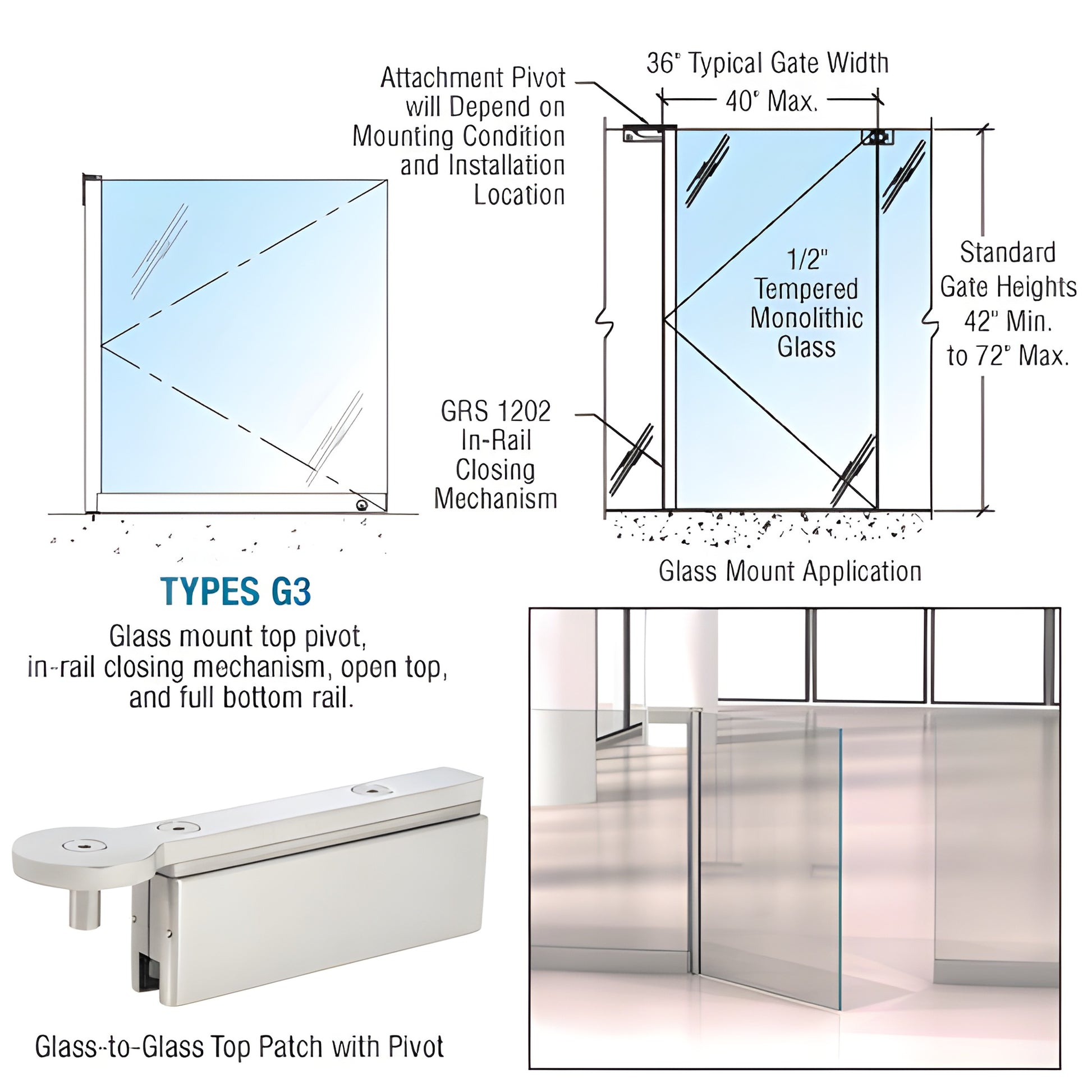

Overview
- Heavy-duty glass gate with optional cap rail for glass railing systems
- Attractive contemporary design paired with reliable, functional operation
- Unique in-rail closing device concealed inside the vertical post
- Round vertical edge pivot post prevents finger pinch hazards
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass panels
- Double-acting (no hold-open) swinging gate — returns to closed position automatically
- Optional keyed or passage locks available
Our Swinging Gates are engineered for commercial and residential installations and integrate seamlessly with the GRS Glass Rail System or Wedge-Lock® Door Rail System. The gate top and bottom swing on heavy-duty ball-bearing pivots for smooth, long-lasting operation.
Minimum required height: 40". Maximum gate size: 40" x 70".
Engineered with a concealed In-Rail Closing Mechanism located in the vertical post, this design eliminates large floor enclosures. The closer returns the gate to the closed position with adjustable closing speed. Note: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Stainless steel offers corrosion resistance but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for full details.
SKU: 1202G3BSC. For pricing, lead time, or custom options, contact our Technical Sales team to get started.
Specifications
CAD Drawings - pdf
