CRL 1202 Brushed Stainless Steel Wall-Mount Gate w/ In-Rail Closer
CRL 1202 Brushed Stainless Steel Wall-Mount Gate w/ In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202W1BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail
- Attractive design with reliable, functional operation
- Unique in-rail closing device concealed in the vertical post
- Round vertical edge pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Double-acting (no hold open) swing design
- Optional locks available

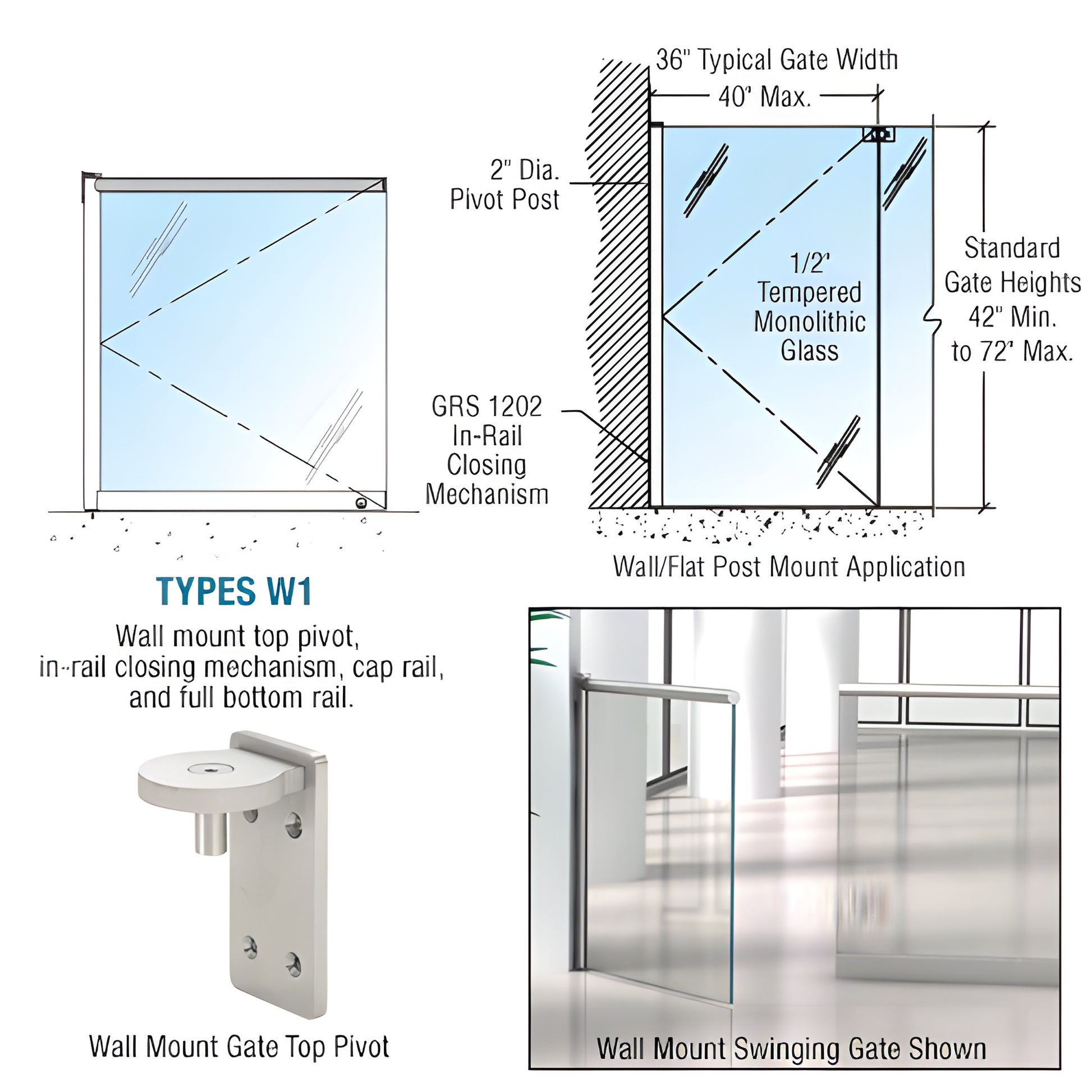

Our Swinging Gates (SKU: 1202W1BSC) are engineered for commercial and residential applications and integrate seamlessly with the GRS Glass Rail System or the Wedge-Lock® Door Rail System. The gate rides on heavy-duty ball-bearing pivots at top and bottom for smooth, durable operation.
Minimum required height: 40". Maximum gate size: 40" x 70".
Engineers designed a concealed in-rail closing mechanism housed in the vertical post, eliminating bulky floor enclosures. The closer automatically returns the gate to closed and offers adjustable closing speed for customizable performance. NOTE: Available by custom order only. Most orders can be fabricated within five business days at our Los Angeles, California facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications. Verify dimensions and shipping requirements before ordering.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For custom pricing, lead time, or specification help for this commercial glass swing gate (tempered glass gate with in-rail closing mechanism), contact our Technical Sales or CRL Customer Service today.
Specifications
CAD Drawings - pdf
