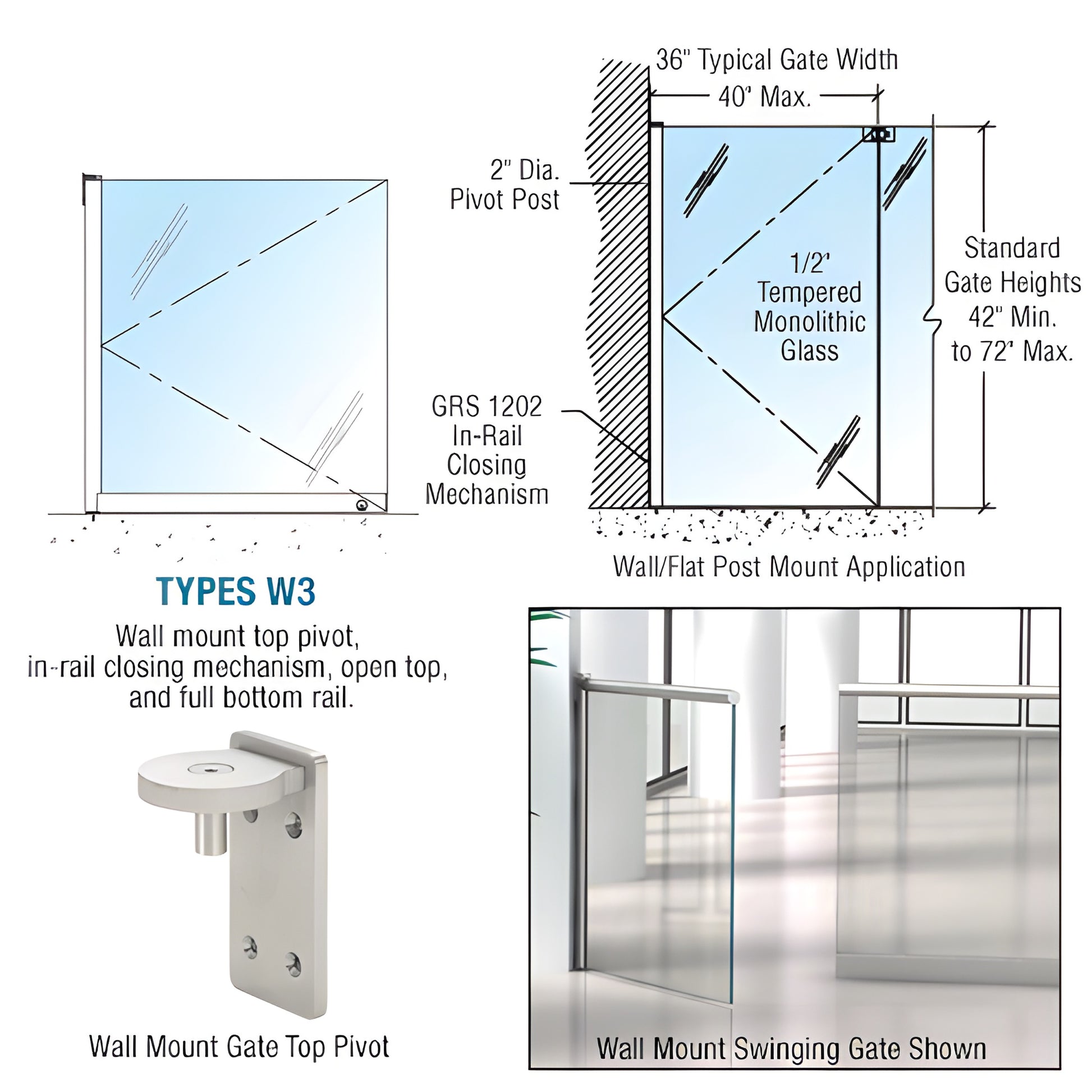

CRL 1202 Custom Brushed Stainless Wall-Mounted Gate w/ In-Rail Closer
CRL 1202 Custom Brushed Stainless Wall-Mounted Gate w/ In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202W3BSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
Overview
- Heavy-duty glass gate with optional cap rail—designed for commercial and residential installations
- Attractive, functional design with durable stainless steel components
- Unique in-rail closing device concealed in the vertical post for clean floor lines
- Round vertical edge gate pivot post prevents finger pinch for safer operation
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass panels
- Double-acting (no hold open) swinging gate design
- Optional locks available; custom sizes and finishes available
Our Swinging Gates are engineered for use alone or paired with the GRS Glass Rail System. Derived from the Wedge-Lock® Door Rail System, they integrate with GRS cap rails and swing on heavy-duty ball bearing pivots for smooth, reliable performance.
Minimum height required: 40". Maximum gate size: 40" x 70".
Engineers designed a concealed, adjustable in-rail closing mechanism housed in the vertical post to eliminate bulky floor enclosures. The closer reliably returns the gate to the closed position; closing speed is adjustable. NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California facility. Contact our Technical Sales Department for assistance.
Product Warning:
All Swinging Gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
SKU: 1202W3BSC
Request a custom quote or contact Technical Sales to start your order—secure a durable, code-compliant tempered glass swinging gate today.
Specifications
CAD Drawings - pdf
