CRL 1202 Custom Polished Stainless Wall-Mounted Gate w/In-Rail Closer
Item# 1202W3PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)
- Heavy-duty glass gate with optional cap rail
- Attractive design paired with reliable, functional operation
- Unique in-rail closing device concealed in the vertical post
- Round vertical edge pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 mm or 12 mm) tempered glass
- Double-acting (no hold-open) swinging gate design
- Optional locks available

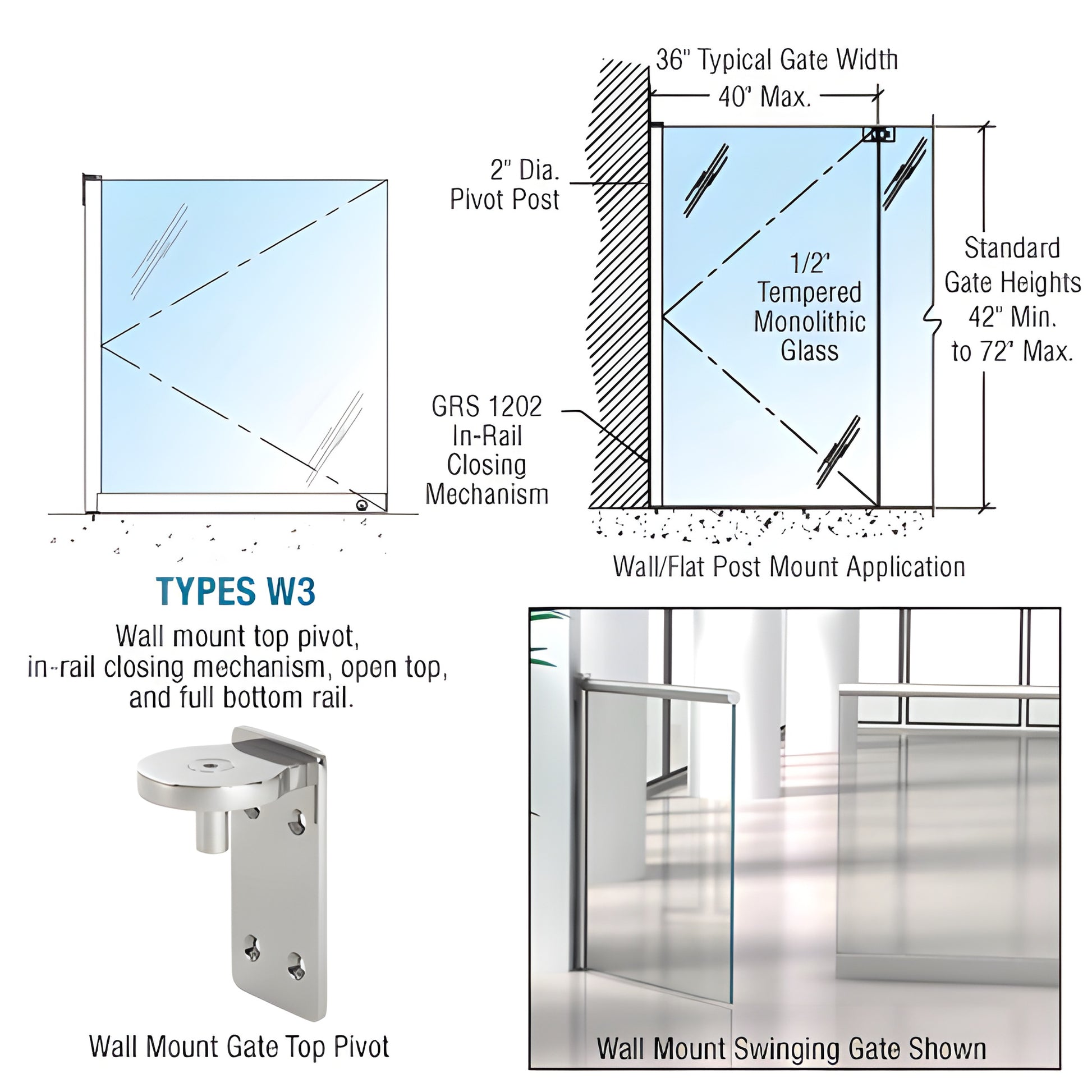

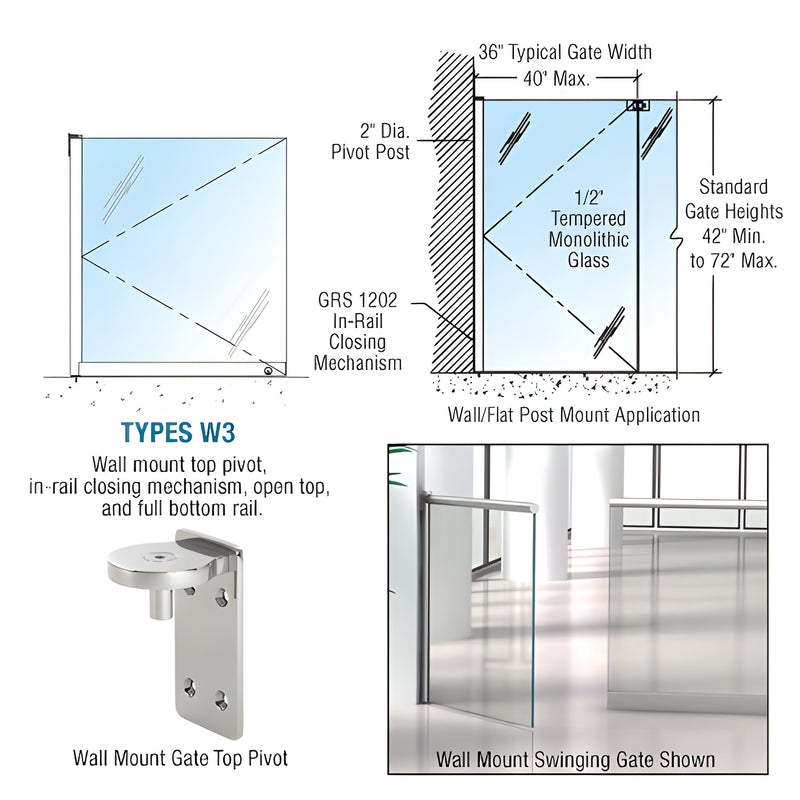

Designed for commercial or residential use, these swinging glass gates integrate with the GRS Glass Rail System and are derived from our Wedge-Lock® Door Rail System. The gate's top and bottom swing on heavy-duty ball-bearing pivots for smooth, durable operation. Minimum required height: 40". Maximum gate size: 40" x 70".
Our engineers developed a concealed in-rail closing mechanism located inside the vertical post, eliminating bulky floor enclosures while providing consistent self-closing action. The adjustable closing speed ensures reliable performance for tempered glass swinging gates. NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.
Product Warning:
All swinging gates are custom fabricated to your specifications.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary based on your monitor.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: 1202W3PSC — For pricing, custom options, or to start a custom order for this heavy-duty tempered glass swinging gate, contact CRL Technical Sales or request a quote today.
CAD Drawings - pdf
