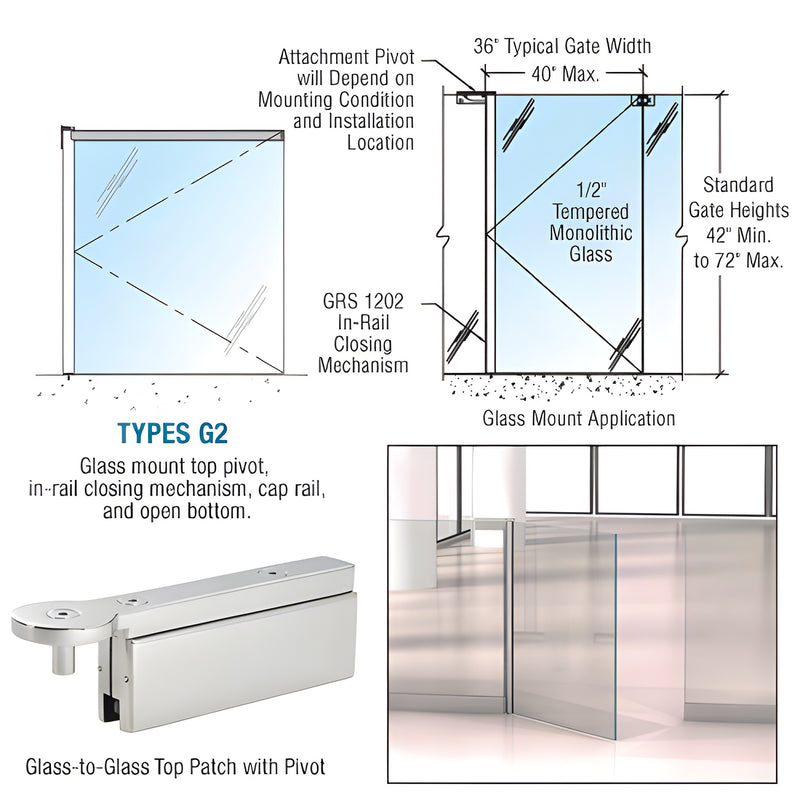

• Polished stainless steel GRS 1202 G2 glass swinging gate hardware with concealed in rail closer, top pivot; fits 3/8-1/2 gla
1 2

CRL

CRL 1202 Polished Stainless Glass Gate w/ In-Rail Closer, Cap Rail

CRL 1202 Polished Stainless Glass Gate w/ In-Rail Closer, Cap Rail

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 1202G2PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)

Overview

  • Heavy-duty glass gate with optional cap rail
  • Beautifully designed and functional in operation
  • Unique in-rail closing device concealed in the vertical post
  • Round vertical edge gate pivot post prevents finger pinch
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Double-acting (no hold open) design
  • Optional locks available

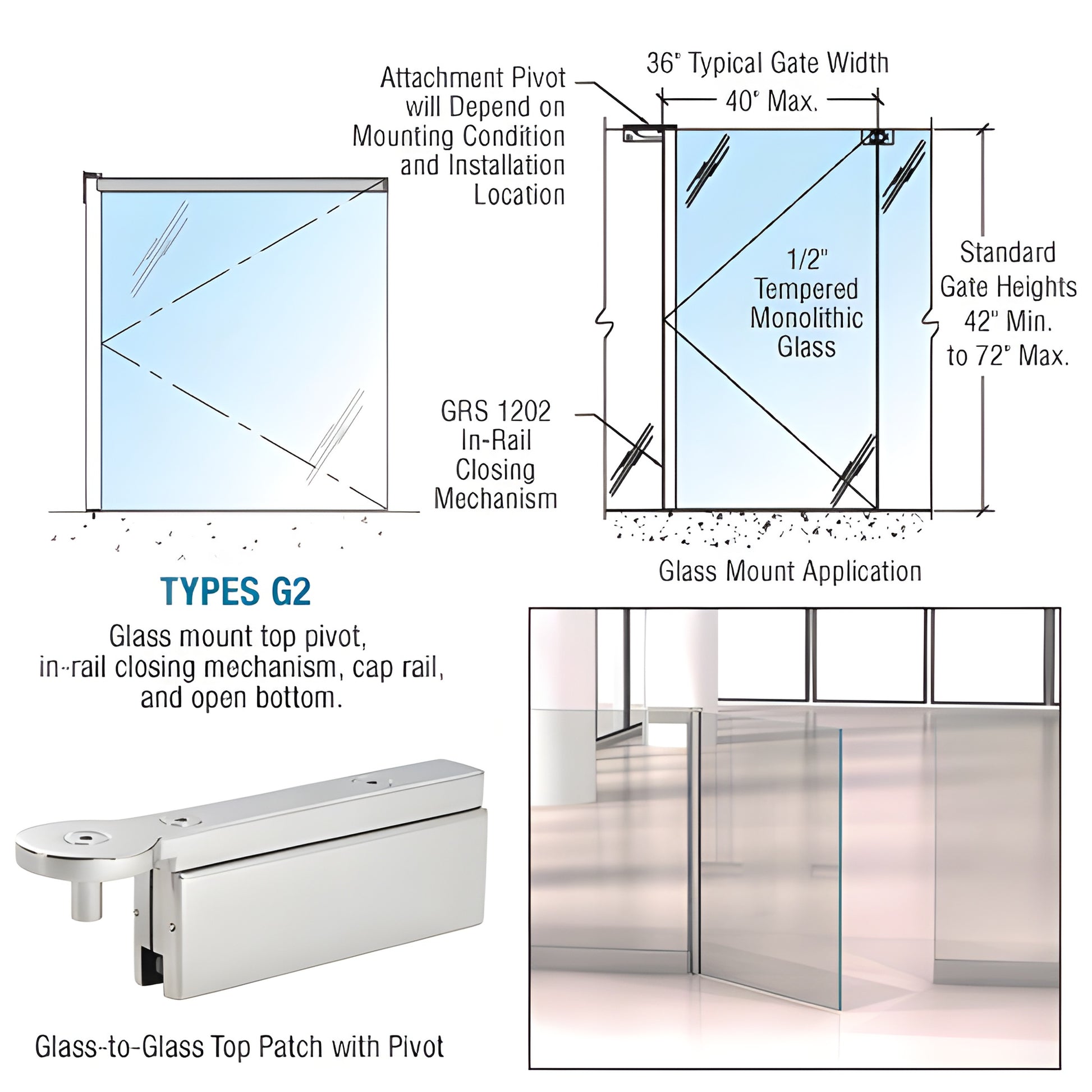

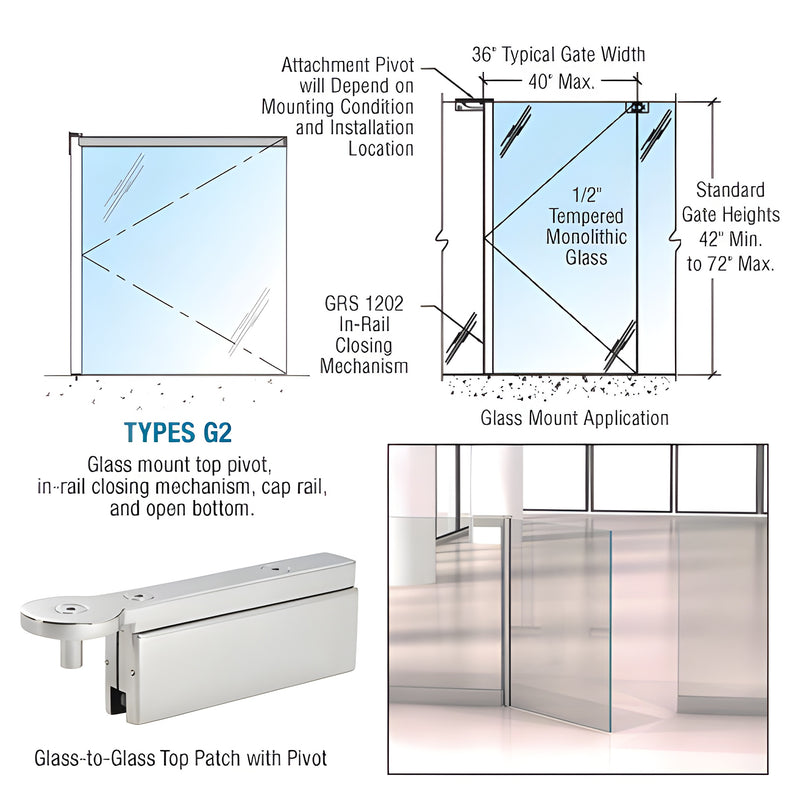

Our Swinging Gates are engineered for commercial and residential applications—use them standalone or integrated with the GRS Glass Rail System. Built as an offshoot of the Wedge-Lock® Door Rail System, these gates can be combined with GRS cap rails. Top and bottom swing on heavy-duty ball-bearing pivots for smooth, durable operation.

Minimum required height: 40". Maximum gate size: 40" x 70".

Engineers designed a concealed in-rail closing mechanism located inside the vertical post, eliminating large floor enclosures. The closer always returns the gate to the closed position and the closing speed is adjustable. This in-post closer is a key differentiator for clean aesthetics and safer, more reliable operation.

SKU: 1202G2PSC

Availability: Available by custom order only. Most orders ship from our Los Angeles, California facility within five business days. Contact our Technical Sales Department for assistance with custom specifications, tempered glass options (3/8" or 1/2"), and optional locks.


Product Warning:
All Swinging Gates are custom fabricated to your specifications.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more details, view the Stainless Steel Disclaimer in the Technical References section below.



For custom tempered glass gates, stainless steel hardware, and fast fabrication in Los Angeles, contact our Technical Sales team to get a quote and place your order today.

Specifications

CAD Drawings - pdf
GRS 1202 Series Swinging Gate CAD Drawings.pdf
