CRL 1202 Polished Stainless Steel Post-Mounted Gate with In-Rail Closer
CRL 1202 Polished Stainless Steel Post-Mounted Gate with In-Rail Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1202P2PSC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Gate Opening Width
Max. 40 in. (Max. 1016 mm)
Glass Included
No
Glazing Thickness
3/8 in. & 1/2 in. (10 mm To 12 mm)
Height
42 in. To 72 in. (1067 mm To 1829 mm)

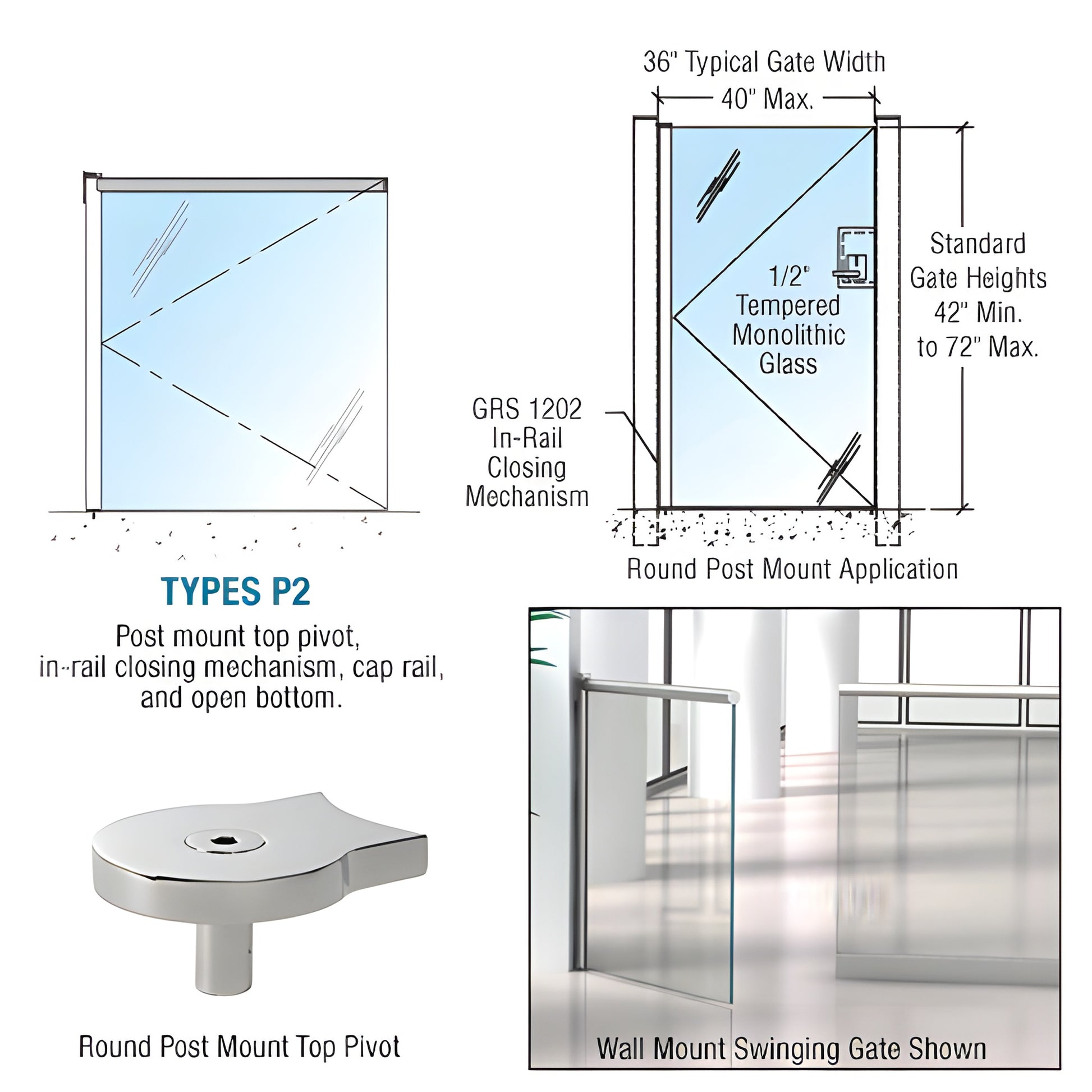

Overview
- Heavy-duty glass gate with optional cap rail for commercial and residential use
- Elegant design that is functional in operation
- Unique in-rail closing device concealed in the vertical post (adjustable closing speed)
- Round vertical edge pivot post reduces finger-pinch risk
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass panels
- Double-acting (no hold open) swing design
- Optional locks available
Designed for compatibility with our GRS Glass Rail System and derived from the Wedge-Lock® Door Rail System, these swinging gates use heavy-duty ball-bearing pivots at the top and bottom for smooth, reliable operation. Minimum required height: 40". Maximum gate size: 40" x 70". SKU: 1202P2PSC.
Our engineers developed a concealed In-Rail Closing Mechanism located inside the vertical post, eliminating bulky floor enclosures and providing a tidy, secure finish. The closer always returns the gate to closed and the closing speed is adjustable. NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California facility. Contact our Technical Sales Department for assistance.
Product Warning:
All swinging gates are custom fabricated to your specifications.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Order a custom heavy-duty tempered glass swing gate with in-rail closer today — contact Technical Sales to get started.
Specifications
CAD Drawings - pdf
