- For 5/16" to 1/2" (8 to 12 mm) Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
- Use Monolithic Tempered Glass

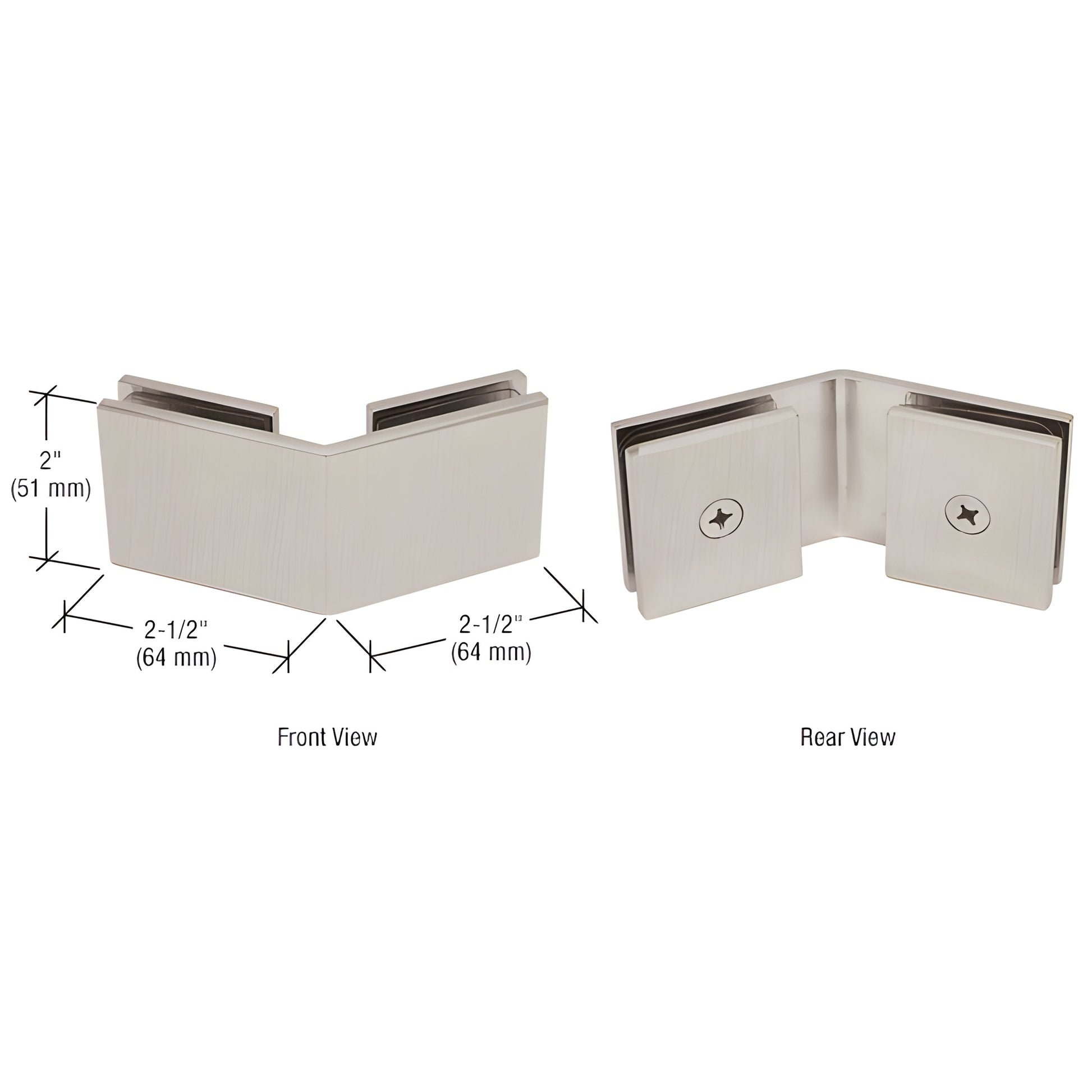

CRL Square 135 Degree Glass-to-Glass Clamps
have sharp corners. The glass can be mitered or flat edged. They are designed to join two panels at 135 degrees. These Clamps have many uses, and are typically utilized in the fabrication of custom showcase displays, trophy cases, partitions, and 'all-glass' enclosures. Available in a variety of popular finishes and styles to match designer hardware. Made of solid brass, these Clamps are engineered to remain beautiful for years with proper care and cleaning. Drawings and templates are available.
NOTE
Replacement Gasket is Cat. No. SGCU1G.
SPECIFICATIONS
Materials
Solid Brass
Glass Thickness Range
3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required
SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes
Mounting Screws (for Wall Clamps) and Gaskets
