- Square Profile
- Welded and Finished
- Ready-to-Install
- Two Finishes Available
- Requires Two Connector Sleeves (Not Included)

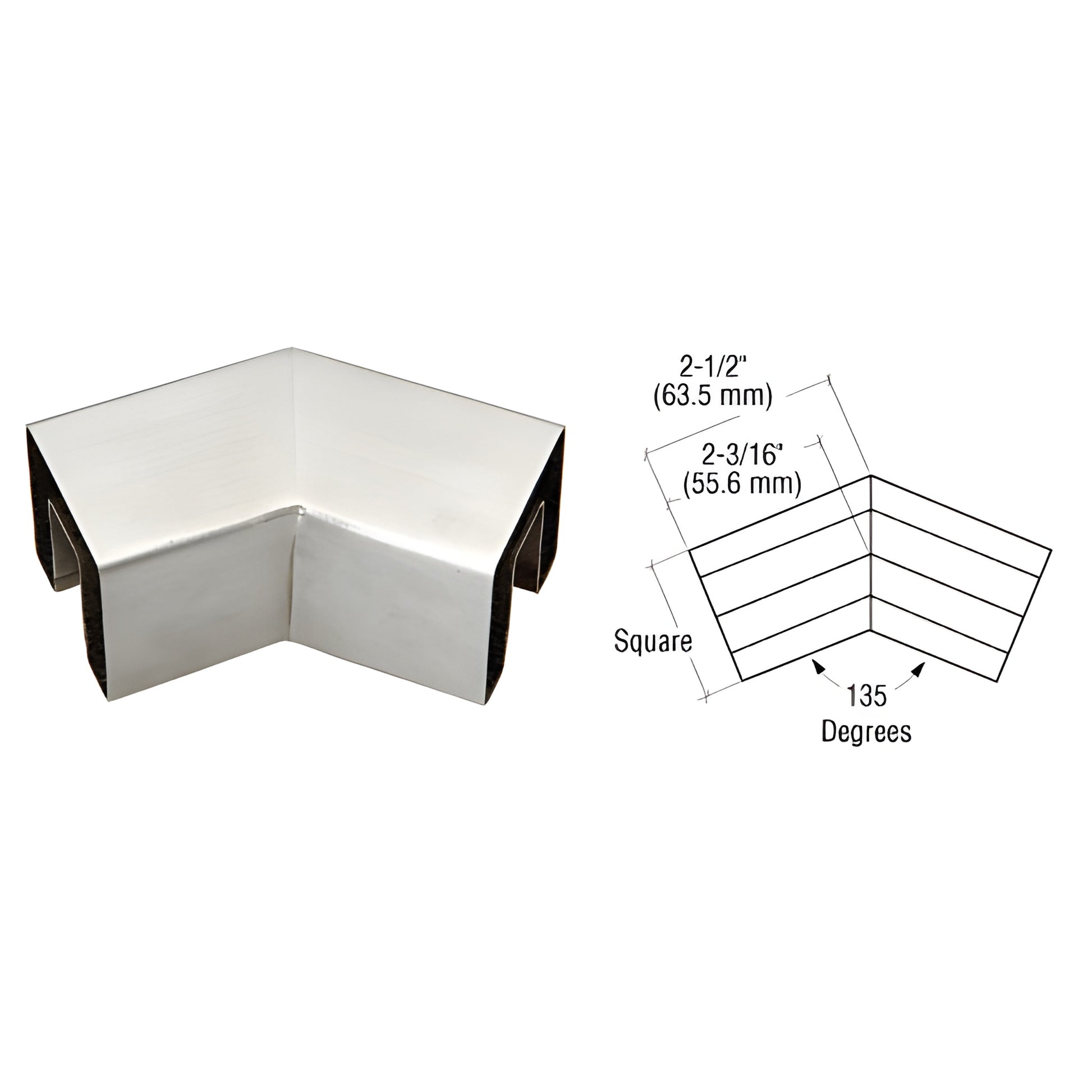

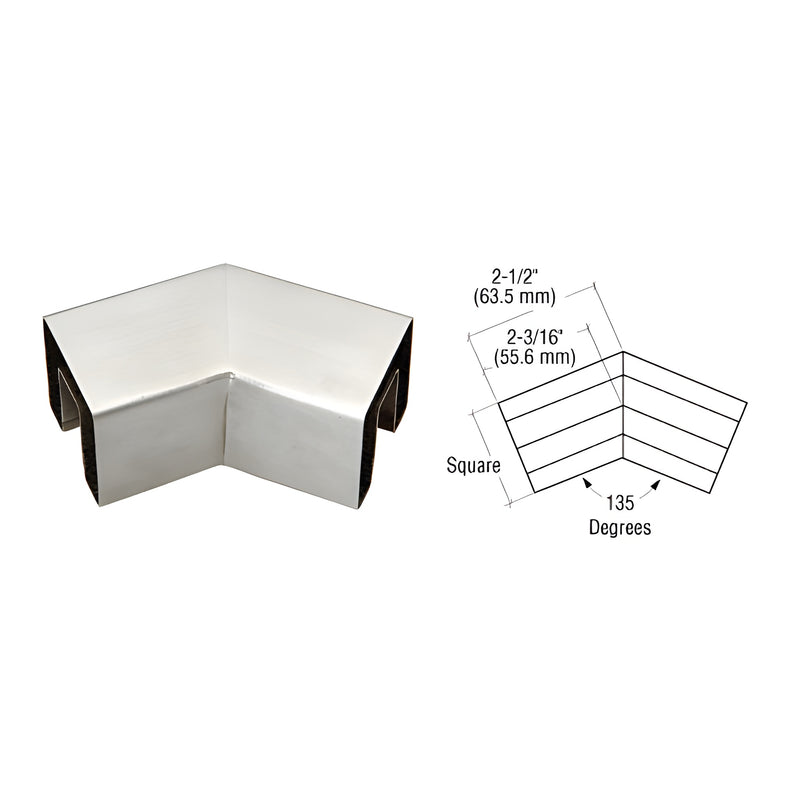

CRL Interior Slip-Fit Horizontal Corners
for 1/2" (12 mm) to 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Square Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Horizontal Corner is fabricated, finished, and individually packed. All of our stainless corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales Department for more information or a quote.
NOTE
With the exception of the GRS15H3 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GRS15H3 Series Cap Rail Corners with 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
