Product Details
- Non-Handed
- Stainless Steel

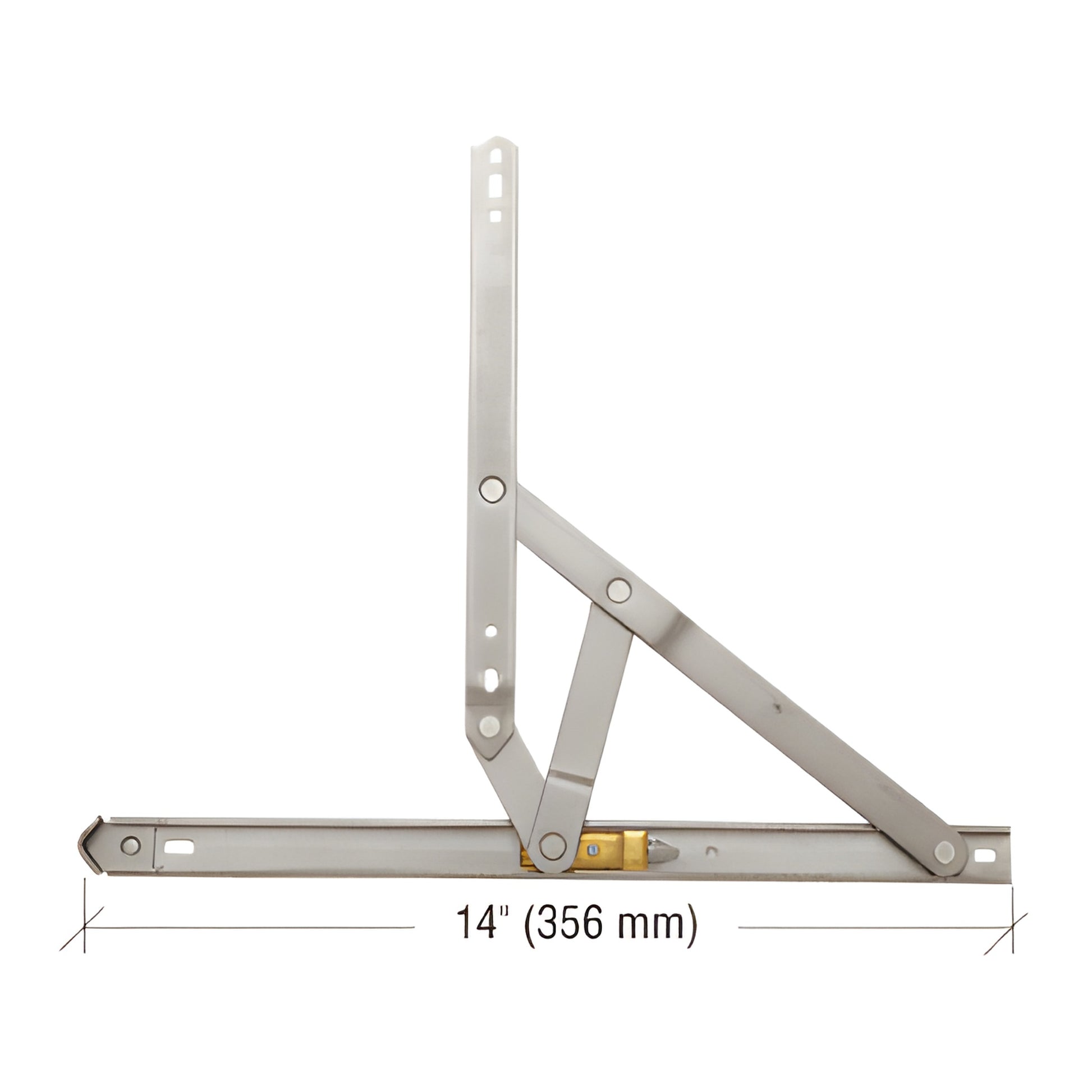

This CRL 90 Degree 4 Bar Hinge is designed for casement window applications. Similar to the standard 4-bar hinge, with the exception of allowing a full 90 degree opening of the vent. All 90 degree hinges come with a brass or nylon/stainless steel slide shoe for friction adjustment. This heavy-duty hinge is recommended for a maximum vent weight of 100 pounds (45.5 kg). Since these hinges pull the sash away from the jamb as it opens, these hinges only work with Dyad type casement operators. One hinge per package.
