CRL 156 in Matte Bronze Heavy-Duty Windscreen Post for Glass
CRL 156 in Matte Bronze Heavy-Duty Windscreen Post for Glass
Regular price
$922.16 CAD
Regular price
Sale price
$922.16 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD156BRZ
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Depth
13/16 in. (21 mm)
Finish/Color
Matte Bronze
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
156 in. (3962 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as posts only or in kits containing post, flat top cap, and glazing vinyl
- Seven standard colors, plus mill aluminum
- Custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry-glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass wet-glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl

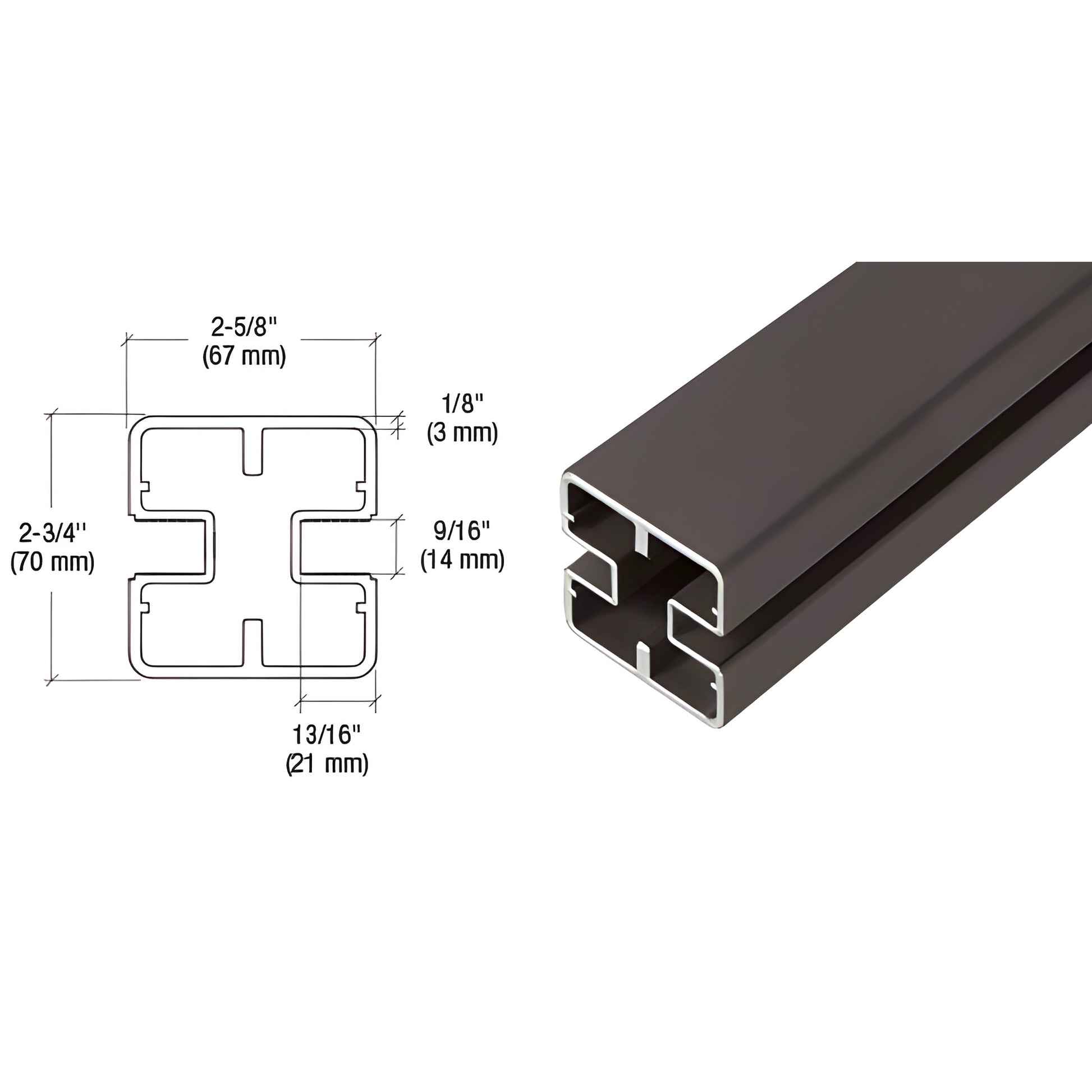

HD posts (SKU: HD156BRZ) are engineered for heavy-duty glass railing and balustrade applications—use them as end posts or to join two panels at 180°. Designed for both dry-glazed vinyl installations and wet-glazed structural silicone, these posts support multiple glass thicknesses for commercial and residential glass railing systems. Choose from seven standard finishes or mill aluminum; custom color matching is available on request.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area 24 sq ft (per panel).
Product Warning: All ARS/AWS painted products are made to order and are non-refundable and non-returnable.
Order HD156BRZ heavy-duty glass railing posts or request a custom color quote today.
Specifications
CAD Drawings - pdf
