CRL 16" Spiral Tilt Window Balance Replacement - Red Bushing
CRL 16" Spiral Tilt Window Balance Replacement - Red Bushing
Couldn't load pickup availability
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Overview

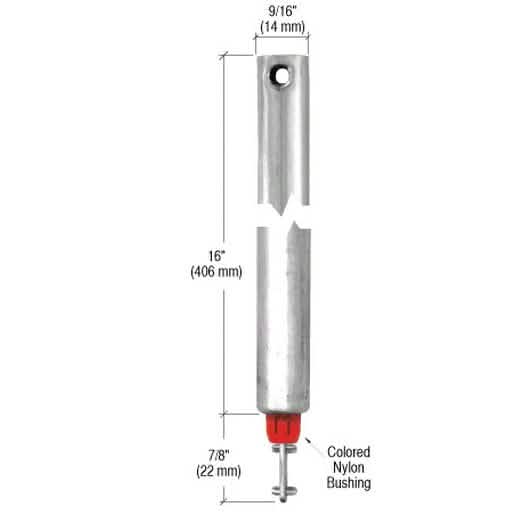

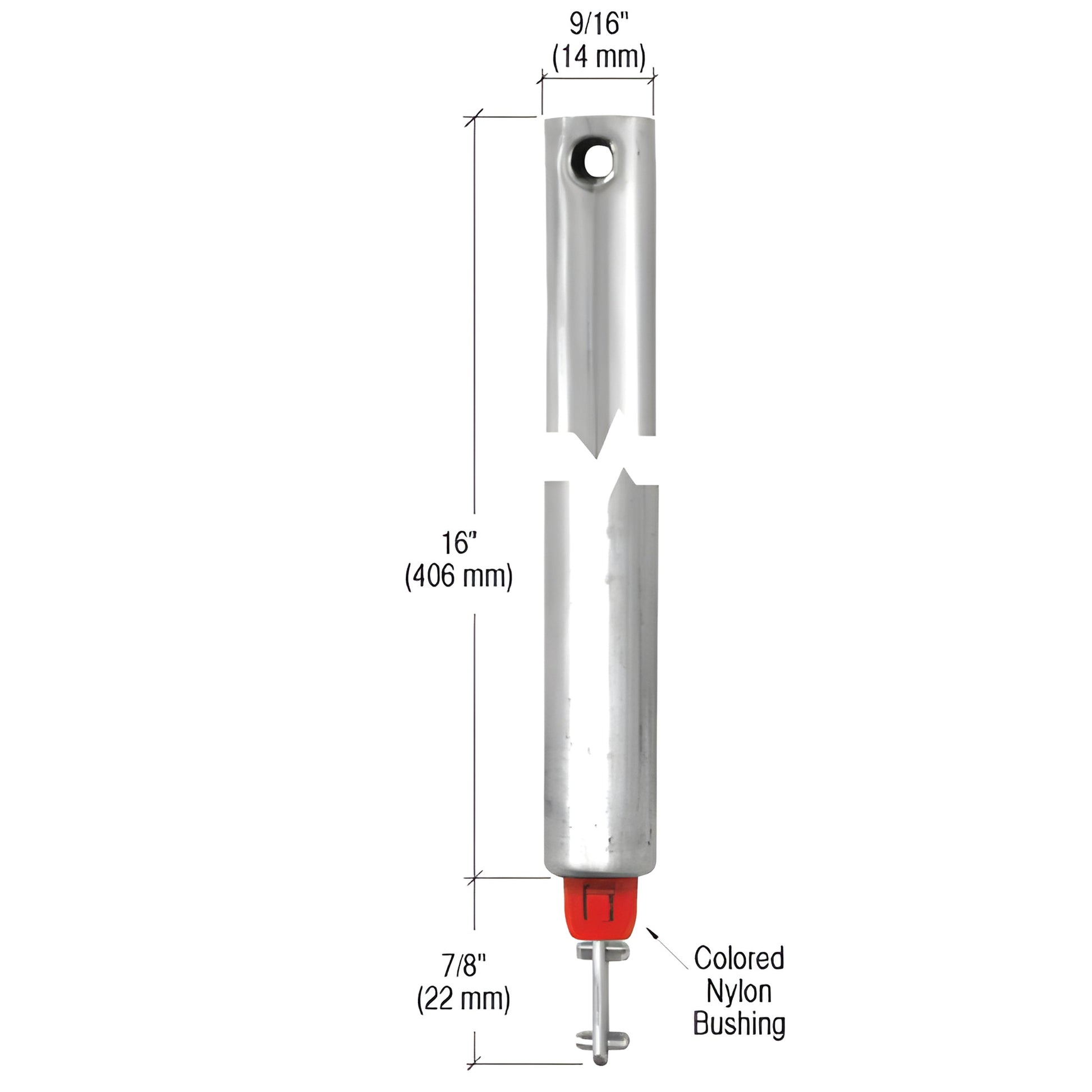

- Red bushing — for sash load weights up to 25 pounds (11.3 kg)
- Tilt window tubular spiral balance with 9/16" (14 mm) tube diameter
- Direct replacement for metal or plastic tube balances (same size)
CRL Tubular Spiral Window Balance (SKU: FH1620) — Replacement spiral balance for tilt-type windows. Designed to replace a 9/16" (14.3 mm) metal or plastic tube balance with a red nylon bushing and a sash load capacity up to 25 lb (11.3 kg). Commonly listed in the industry as 5/8" (16 mm) tube size. Sold individually; we recommend replacing both balances in a window at the same time to ensure even operation.
How to Order Tubular Spiral Window Balances
- Check the tube diameter on the old balance.
- Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
- Confirm the color of the nylon bushing (red for this SKU).
- Verify the rod extension protruding from the nylon bushing matches the photo.
- Match tube diameter, tube length, and bushing color against the Catalog Number; if all match, this is the correct balance.
Find the correct CRL tubular spiral window balance (9/16" red bushing) for your tilt windows — order replacement FH1620 now.
