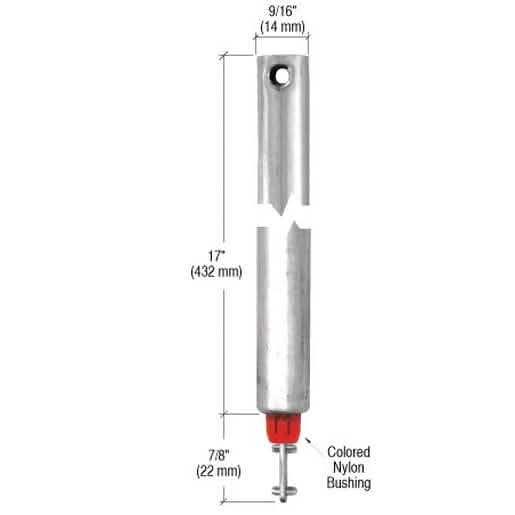

CRL 17 in Replacement Tubular Spiral Tilt Sash Balance - Red Bushing

• Red bushing indicates sash load up to 25 lb (11.3 kg)
• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

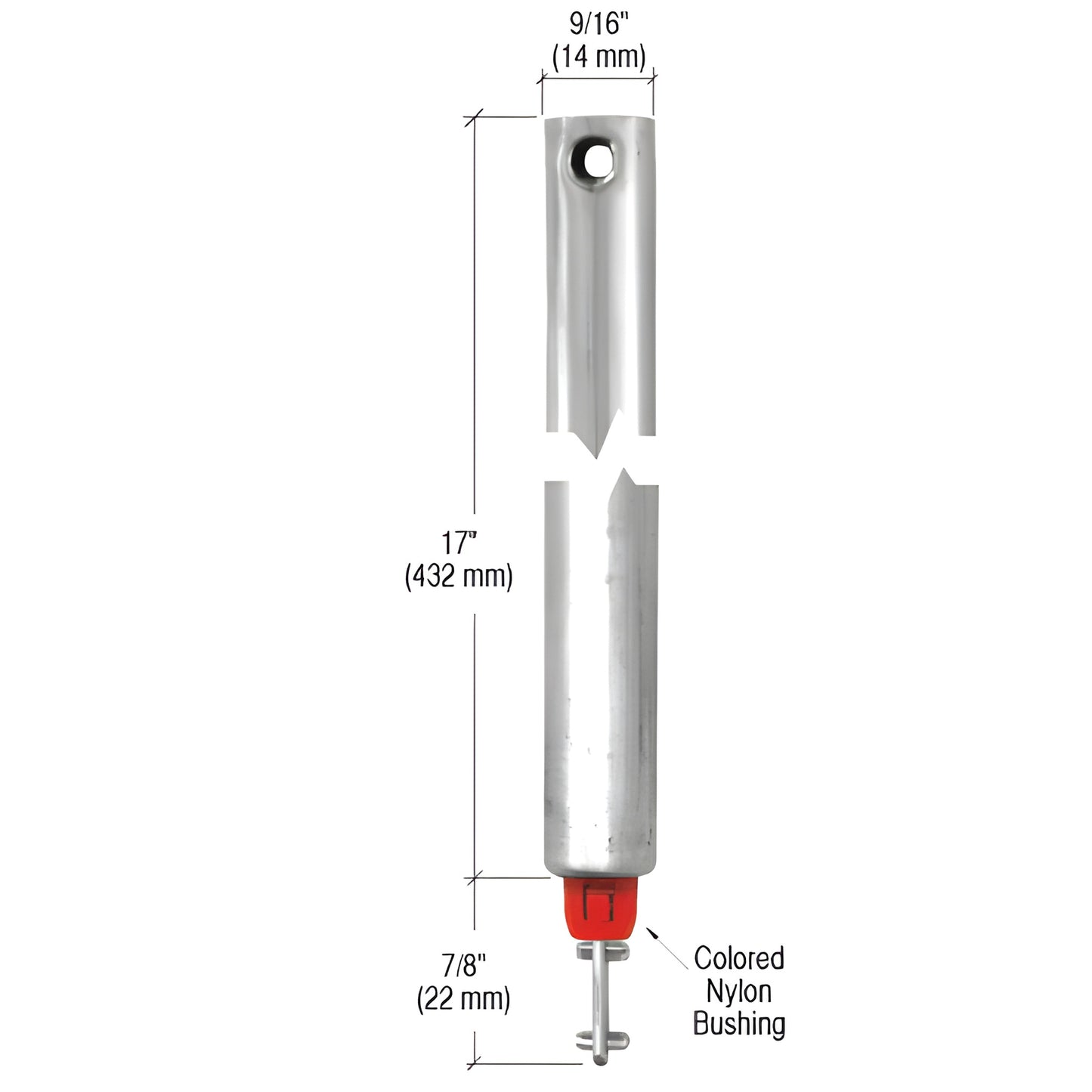

CRL Tubular Spiral Window Balance (SKU: FH1720) — For tilt-type windows requiring a 9/16" tube. This individual spiral balance features a red nylon bushing for sash loads up to 25 pounds (11.3 kg) and replaces the same-size white-bushing or metal/plastic tube balances. For best performance, replace both balances in the window at the same time.

How to order the correct tubular spiral window balance:

1. Confirm the tube diameter of the existing metal or plastic tube (9/16" / 14 mm).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Check the color of the nylon bushing (red = up to 25 lb).
4. Verify the rod extension protruding from the bushing matches the photo and specifications.
5. Match tube diameter, tube length, and bushing color to the catalog information. If all match, this balance (FH1720) is the correct replacement.

Need help confirming measurements or selecting the right tilt window spiral balance? Contact CRL Customer Service or add SKU FH1720 to your cart to order now.
