CRL Tremco VISIONstrip .187 in Glazing Seal Replacement Gasket
CRL Tremco VISIONstrip .187 in Glazing Seal Replacement Gasket
Regular price
$91.91 CAD
Regular price
Sale price
$91.91 CAD
Shipping calculated at checkout.
Quantity
Increments of 10Minimum of 10
Couldn't load pickup availability
Item# 733V25
Shipping Weight: 2.88 Pounds
Shipping Limitations: None
Minimum Order Quantity: 10
Unit of Measure: Roll
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.88 Pounds
Shipping Limitations: None
Minimum Order Quantity: 10
Unit of Measure: Roll
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Tremco
Finish/Color
Black
Thickness
0.187 in. (5 mm)
Type
Butyl
Overview
- Clean gasket appearance with positive wet-seal
- EPDM rubber with 100% cross‑linked butyl preformed sealant

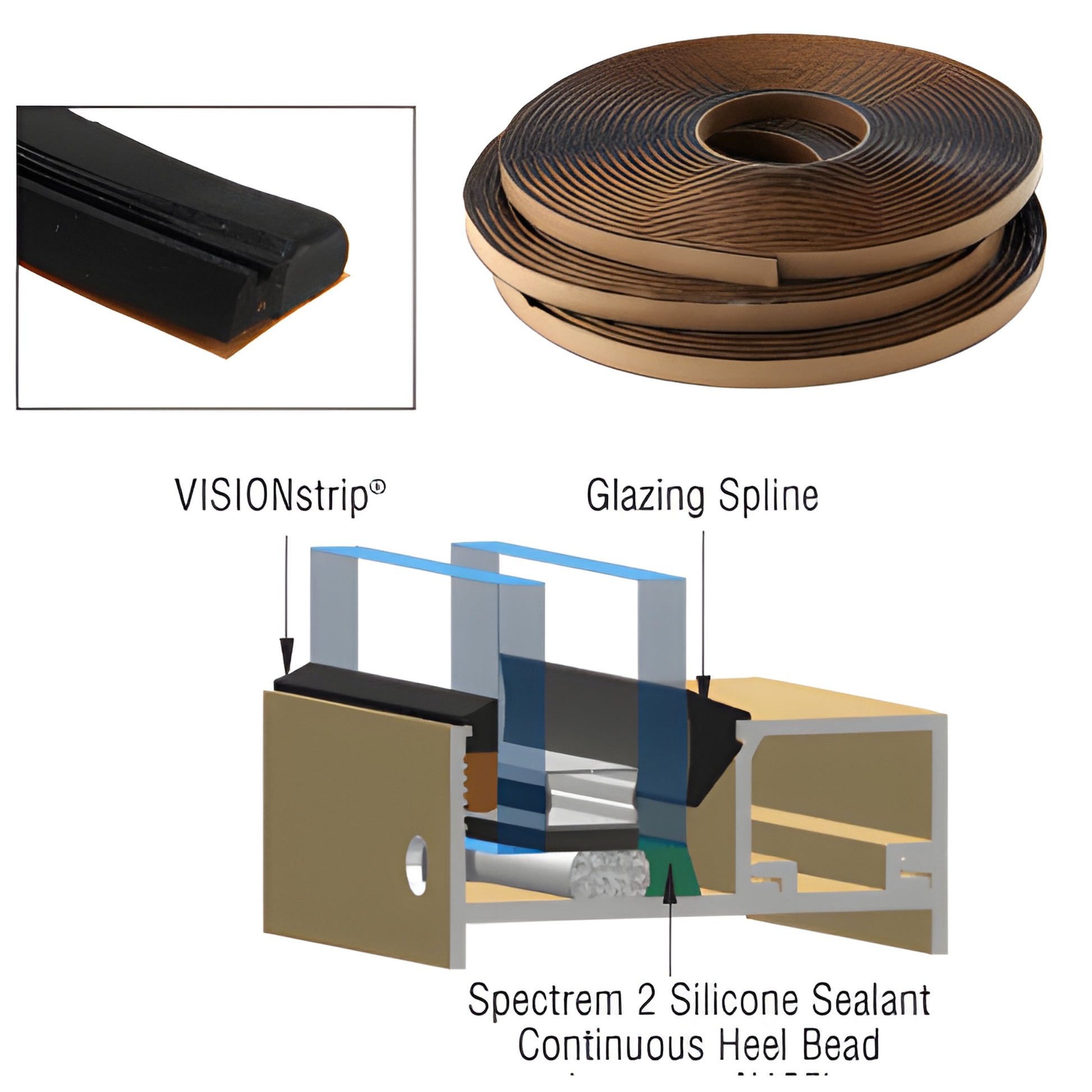

CRL Tremco® VISIONstrip® (SKU 733V25) is a precision-extruded glazing gasket combining an EPDM rubber sightline extrusion with a 100% solids, highly adhesive and elastic cross‑linked butyl preformed sealant bonded underneath. This single-component EPDM butyl glazing gasket creates a positive wet-seal between metal and glass while maintaining a clean sightline appearance—ideal when you need a durable, low-profile glazing sealant for curtain walls and window systems.
VISIONstrip® is specified for compression glazing systems including curtain wall, unitized curtain walls, punched and ribbon window systems, and sloped glazing applications. For correct installation, VISIONstrip® mounts on a special metal nib sized .050" x .060" (1.3 x 1.5 mm).
Differentiators:
- Preformed butyl sealant bonded to EPDM for one-step installation
- Positive wet-seal performance at the metal-to-glass interface
- Clean gasket sightline for high-end architectural glazing
NOTE: Tremco® recommends a mock-up to verify proper mating between VISIONstrip® and the metal nib.
Product Warning:
Not for use in joints subjected to continuous water immersion or temperatures exceeding 200°F (93°C).
For technical details or to order VISIONstrip® (733V25), contact CRL Customer Service or request a product mock-up today.
