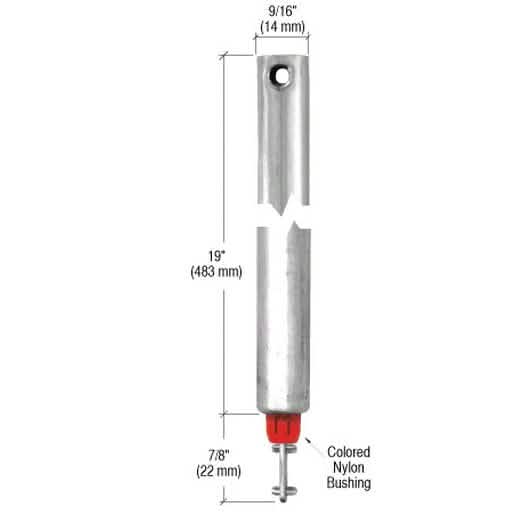

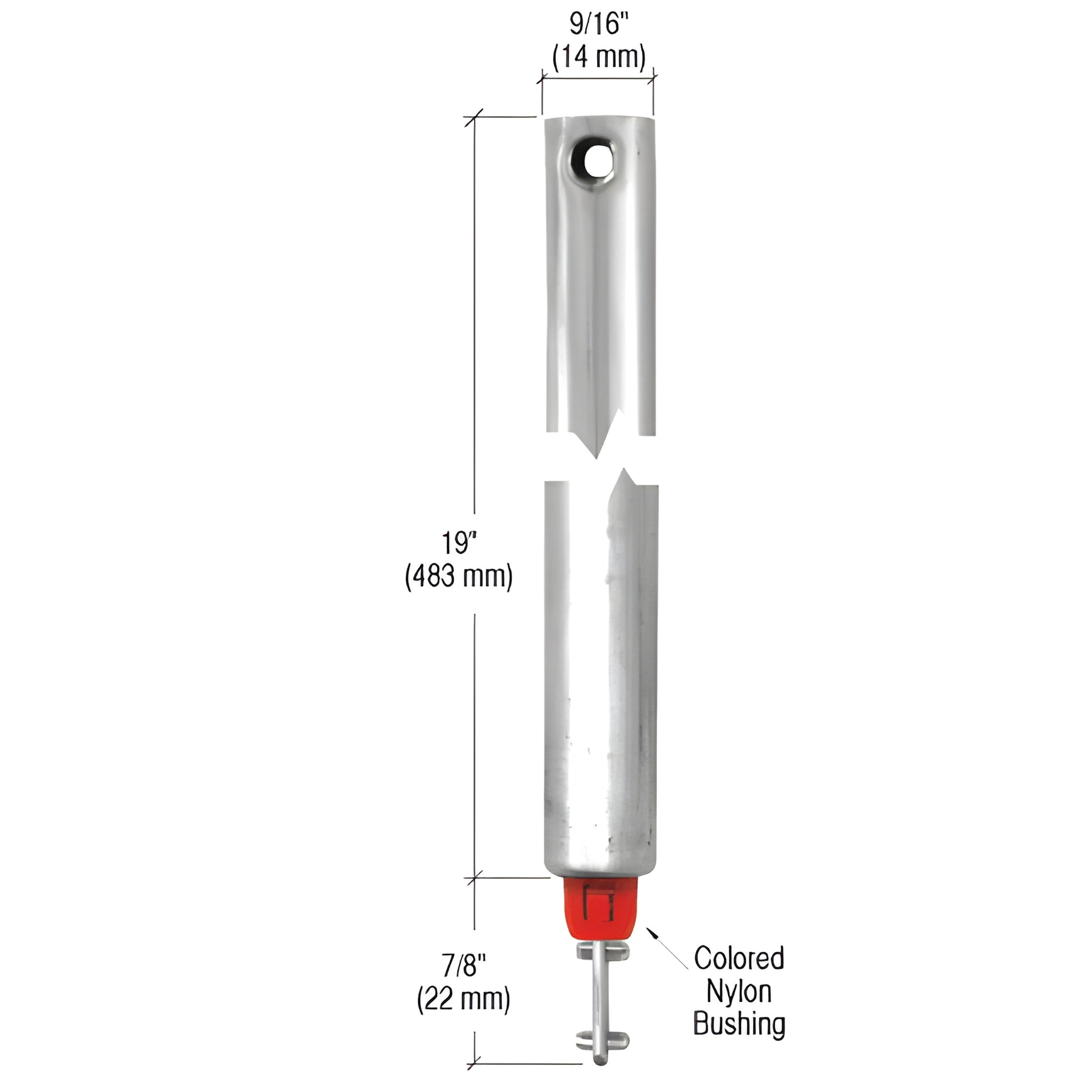

CRL 19" Tubular Spiral Tilt Window Balance - Red Bushing Replacement

• Red bushing indicates sash load capacity up to 25 pounds (11.3 kg)
• Tilt-window tubular spiral balance — industry-standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances of the same size

These CRL Tubular Spiral Window Balances (SKU: FH1920) are designed for tilt-type windows and replace existing metal or plastic tube balances with a sash load up to 25 pounds (11.3 kg). They also replace the same-size spiral balance with a white bushing. Each balance is packaged and sold individually; we recommend replacing both balances in the window at the same time for optimal performance and alignment.

How to order tubular spiral window balances (tilt window, 9/16" tube):

• 1. Check the tube diameter of the old metal or plastic balance (9/16" / 14 mm for this model).
• 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
• 3. Note the color of the nylon bushing (red indicates 25 lb capacity).
• 4. Verify the rod extension protruding from the nylon bushing matches the old balance.
• 5. Match tube diameter, tube length, and bushing color to the specifications shown next to the catalog number. If all items match and the rod extension looks the same as the photo, this is the correct balance.

Need help confirming fit? Contact us or order matching pairs for reliable tilt-window replacement.
