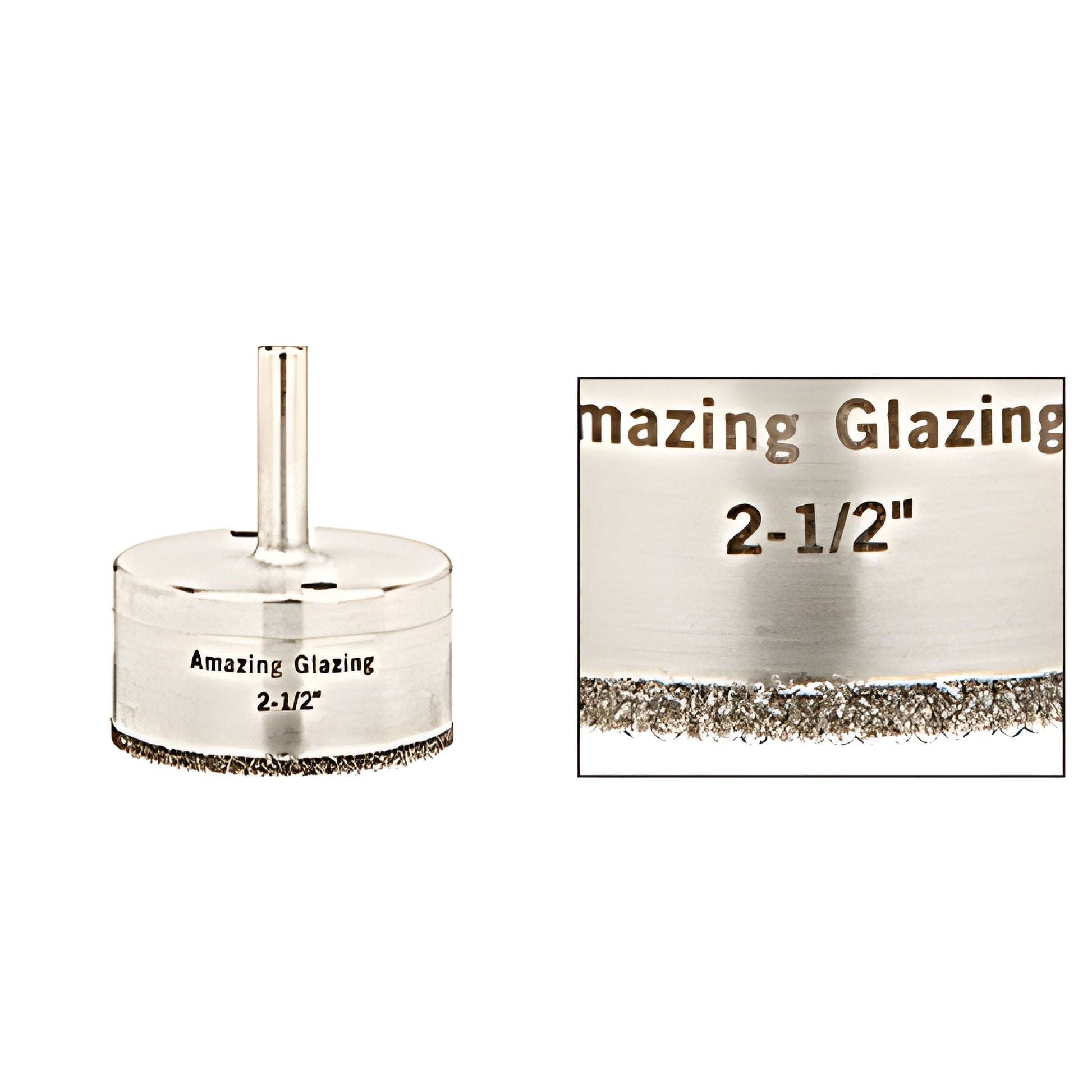

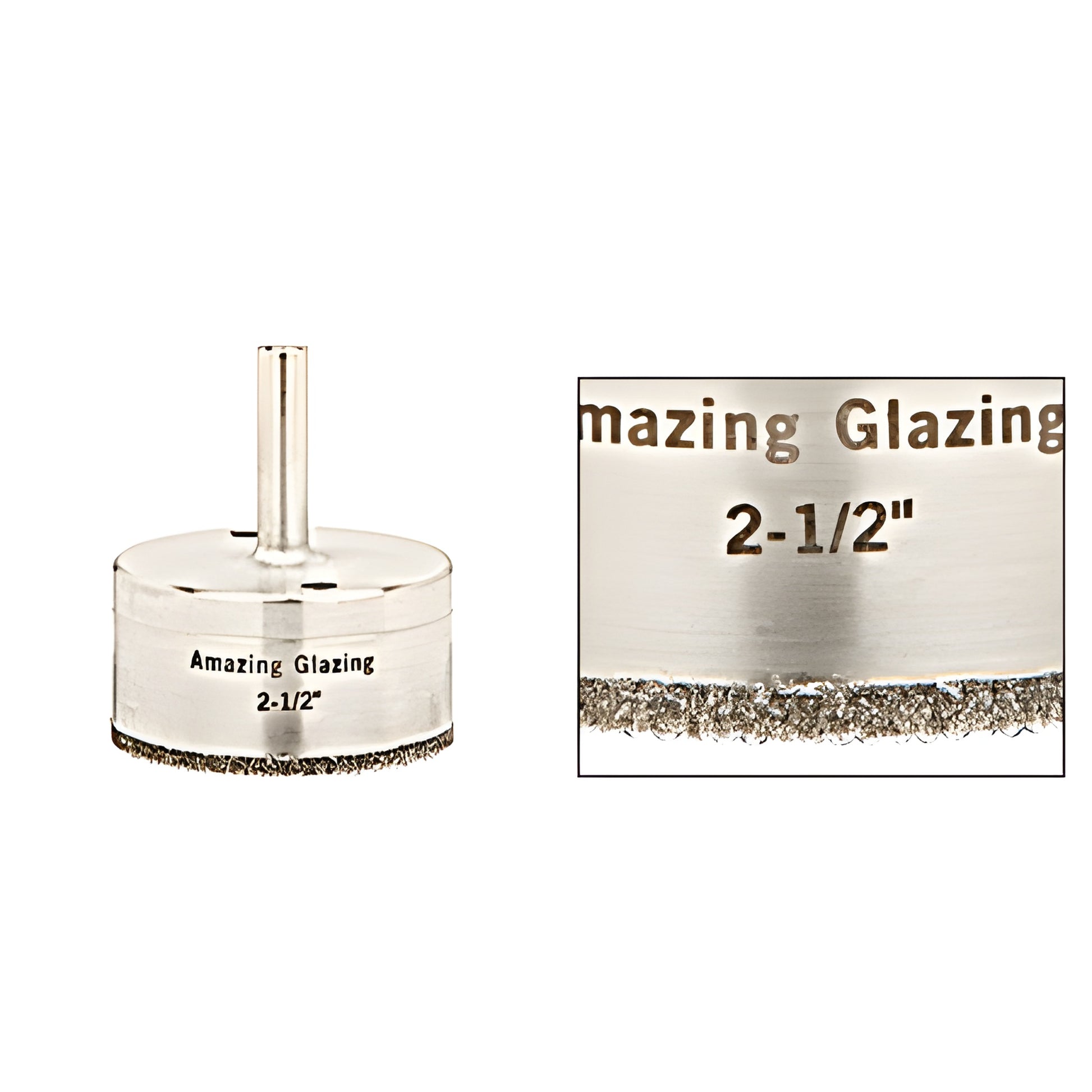

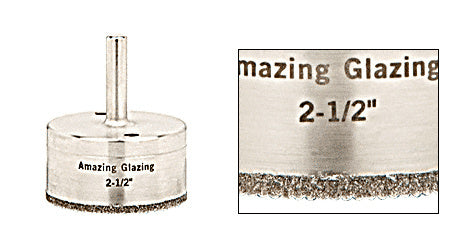

CRL 2-1/2" AG Diamond Drill Bit for Glass & Tile, Plated
CRL 2-1/2" AG Diamond Drill Bit for Glass & Tile, Plated
Regular price
$356.28 CAD
Regular price
Sale price
$356.28 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# AG212
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
2-1/2 Inches
Material
Diamond Plated Steel
Shank Diameter
3/8 in. (10 mm)
Shank Type
Reduced Round
Wrist Circumference
2-1/2 in. (64 mm)
Overview
- Unique aggressive sawtooth profile for faster cutting
- CRL’s most durable plated diamond drill — machined from solid steel
- Diameters from 1/8" to 4-1/2" for glass and glazing applications
The special sawtooth design of CRL Amazing Glazing Plated Diamond Drills reduces contact area for improved grinding action and better coolant penetration—ideal for drilling glass, glazing, and tiles in portable tripod and cup-style machines. These plated diamond drills are machined from solid steel for extended life. For best results use with DTC80 Diamond Tool Coolant and submerge the bit in a retaining ring during operation. When fully worn, these plated drills can be sharpened once with a CRL Sharpening Stone to expose remaining diamonds and extend service life.
Safety: Always wear proper personal protective equipment, including eye protection, when drilling glass. Perform work on a flat, horizontal surface. Use a Cat. No. GF1 Ground Fault Circuit Interrupter when operating electric tools with water or coolant. Failure to follow these precautions can result in serious injury.
Product Warning
NEVER perform freehand drilling. Use a stabilization base (for example, CRL GDB1 or GDB2 Glass Drilling Bases) when using a hand drill. Misuse or drilling outside specified methods may damage the bit and void the warranty.
SKU: AG212 — Order AG212 plated diamond drills for glass and glazing today.
