CRL

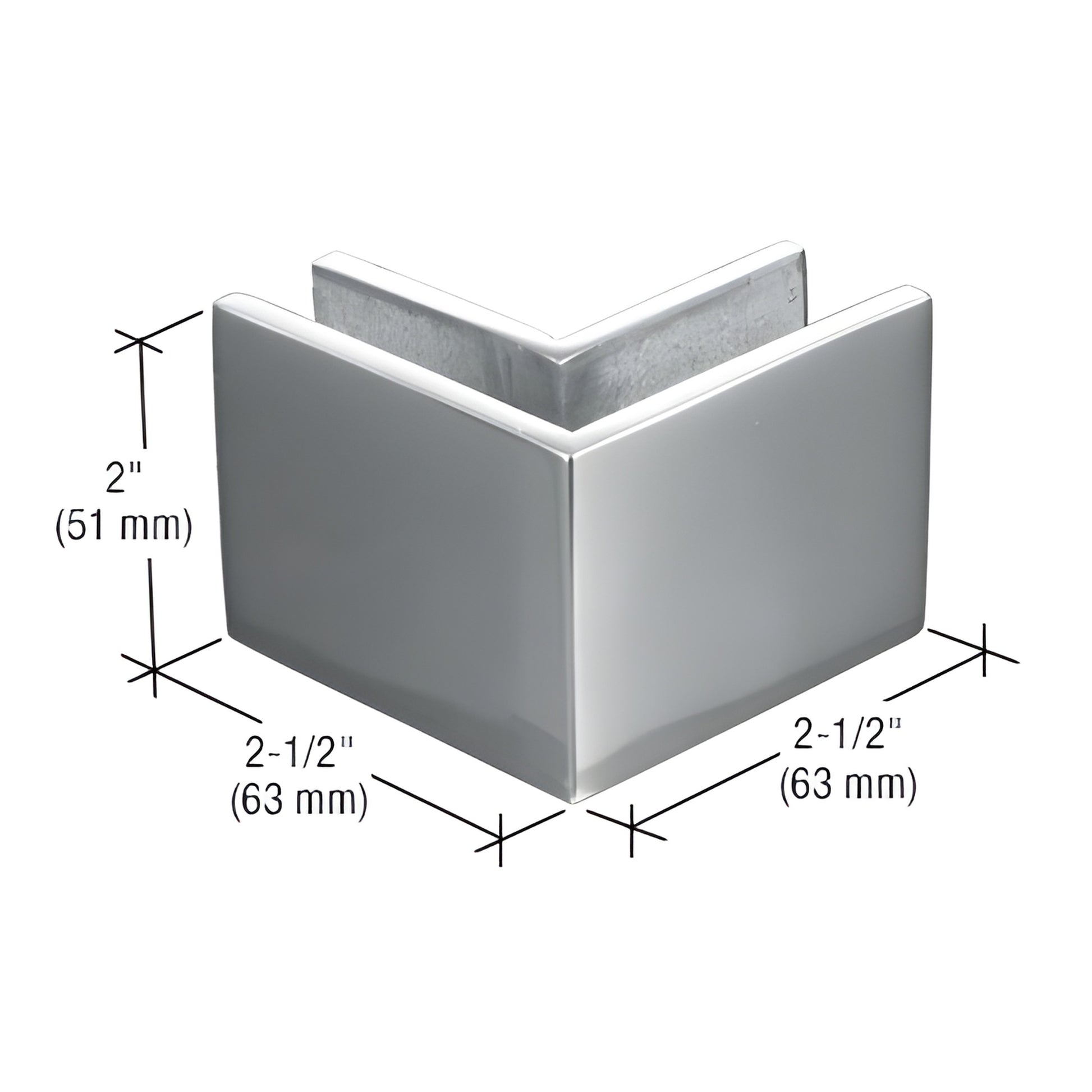

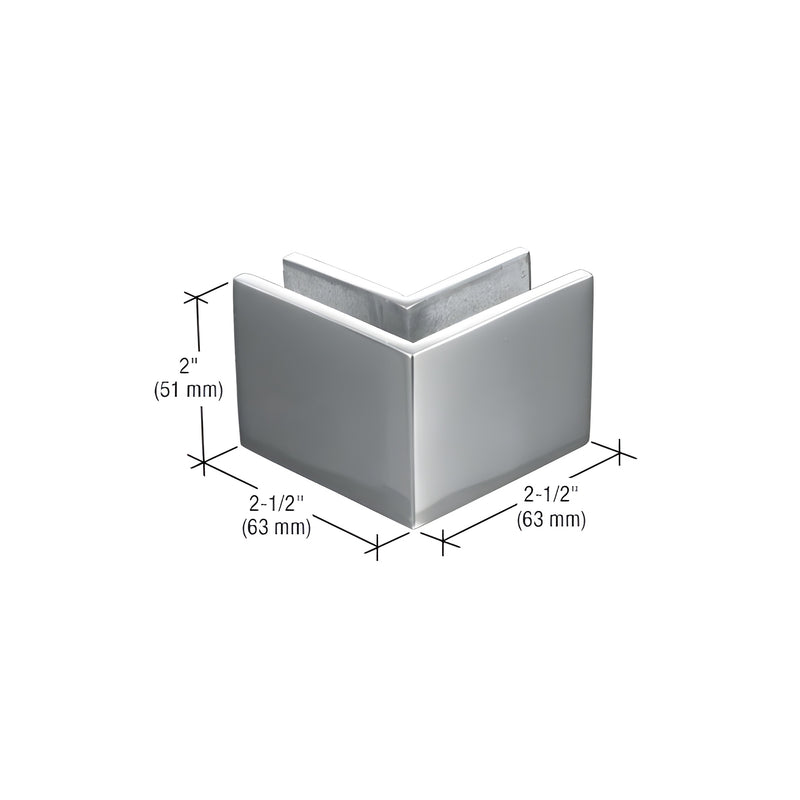

CRL 2-1/2" x 2" Polished SS 90° Outside Corner Storefront Clamp
CRL 2-1/2" x 2" Polished SS 90° Outside Corner Storefront Clamp
Regular price
$125.74 CAD
Regular price
Sale price
$125.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MFC22
Shipping Weight: 6.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Overview
- Commonly used in malls to join vertical interior lites of glass
- Fits 3/8" to 1/2" (10 to 12 mm) tempered monolithic glass
- Available in brushed or polished 304 stainless steel and C260 brass
- High-tech contemporary designs at new lower prices
- Provides rigidity and a floating visual indicator to alert pedestrians
CRL 90 Degree Square Mall Front Clamp (SKU: MFC22) installs with CRL Cat. No. 491012 or AT04012 Clear Very Hi‑Bond Tape and CRL RTV408C Clear Neutral Cure Silicone. These 90-degree corner clamps join vertical glass wall panels at right angles, reducing flex under pressure while serving as a visible indicator in dim areas.
Replacement screws: P612**.
All CRL Mall Front Clamps come in polished brass, polished stainless, or brushed stainless finishes and are designed specifically for 3/8" to 1/2" (10 to 12 mm) tempered glass. These clamps install easily with CRL RTV408C Clear Silicone.
Product Warning:
NOTE: Clamp is made of type 304 stainless steel or 260 brass and is intended for interior applications only.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the MFC22 90-degree mall front glass clamp today to secure interior tempered glass corners with durable, low-profile hardware.
