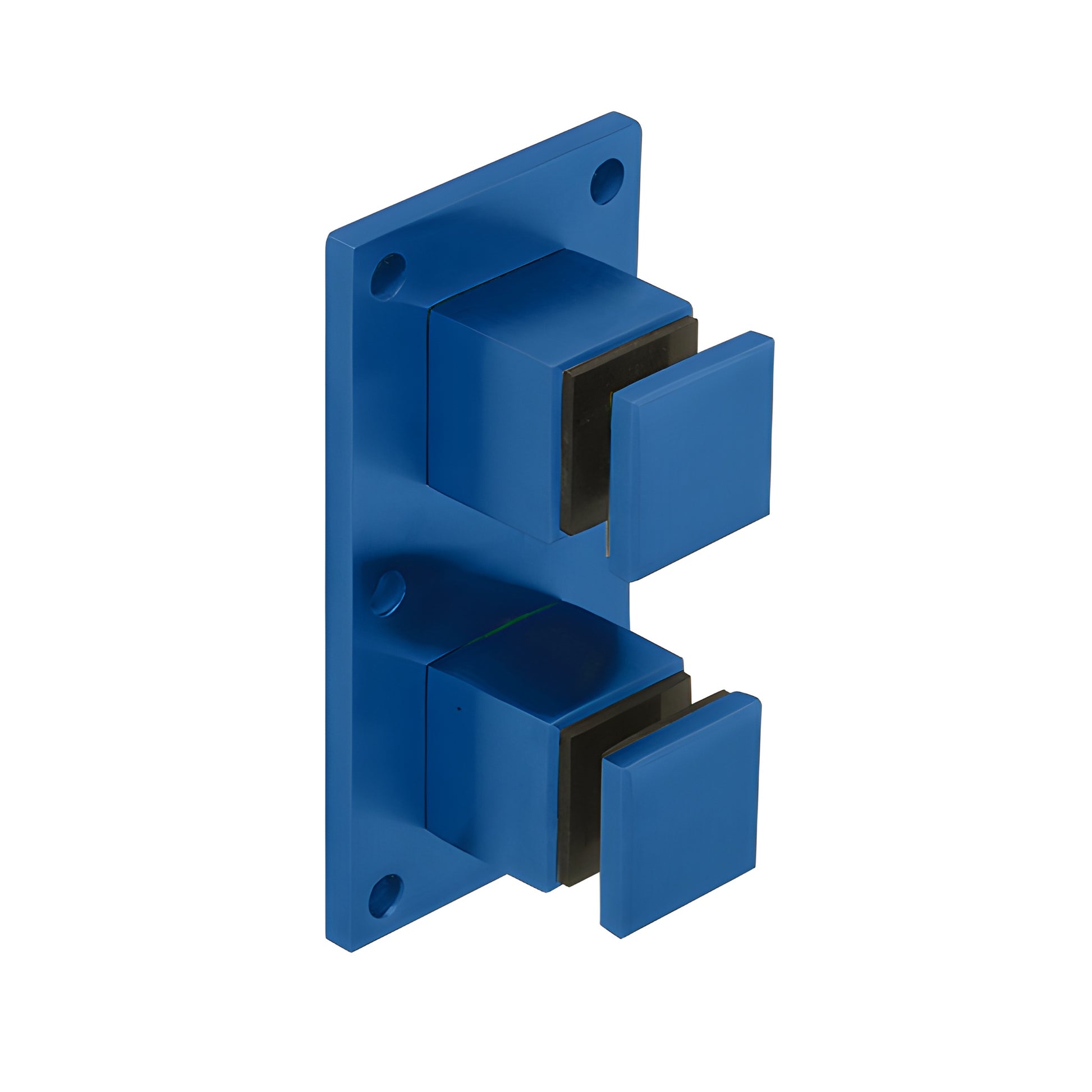

CRL 2 in Painted Steel Square Glass Standoff with Mounting Plate
CRL 2 in Painted Steel Square Glass Standoff with Mounting Plate
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SS0B20PT
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
316
Finish/Color
Powder Coated
Height
8 in. (203 mm)
Material
Stainless Steel
Width
4 in. (102 mm)
Overview
- 316 stainless steel glass standoff for durable exterior and interior use
- Mounts to wood, concrete, or steel; custom finishes available

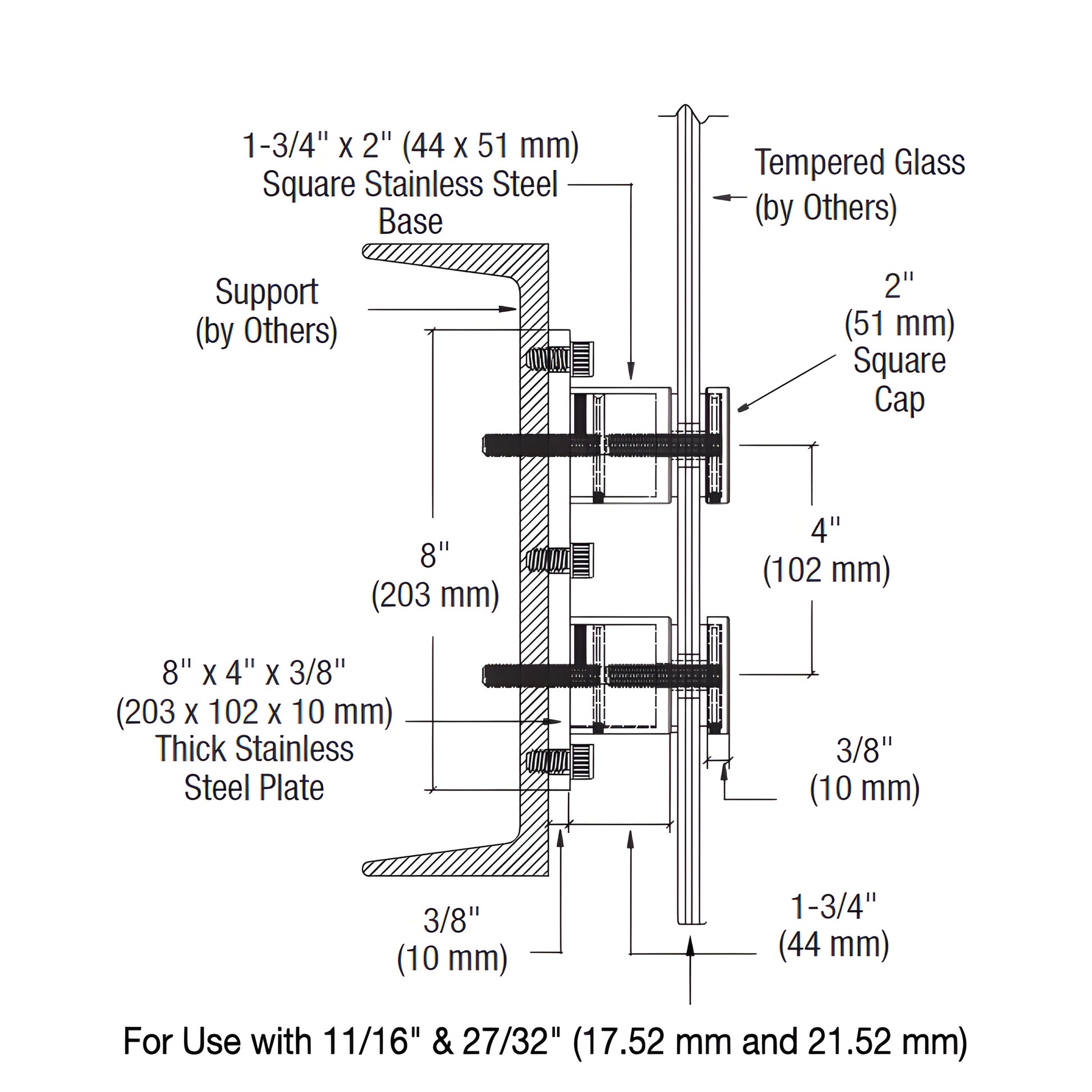

CRL Glass Rail Square Standoff Fittings — SKU: SS0B20PT can secure laminated glass up to 27/32" (21.52 mm) thick. This 316‑grade stainless steel assembly features 2" (51 mm) square caps on threaded bolts and is fastened to a 3/8" (10 mm) thick pre‑drilled stainless plate for easy mounting to wood, concrete, or steel substrates. Two popular stainless finishes are available from stock, and custom finishes can be ordered for specific projects.
SPECIFICATIONS:
Glass Fabrication: Two 3/4" (19 mm) diameter holes per fitting
Hole Spacing Between Standoffs: 4" (102 mm)
Maximum fitting spacing varies by application and mounting conditions; consult engineers or CRL for span recommendations.
Product Warning:
For use with 11/16" & 27/32" (17.52 mm and 21.52 mm) laminated glass using Kuraray SentryGlas® interlayer. Do not use with raw or annealed glass.
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions; confirm layout prior to fabrication.
Order SKU SS0B20PT today or contact CRL for custom finishes and installation guidance.
Specifications
CAD Drawings - dwg
