CRL 20" Tubular Spiral Tilt Window Balance Replacement - Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)

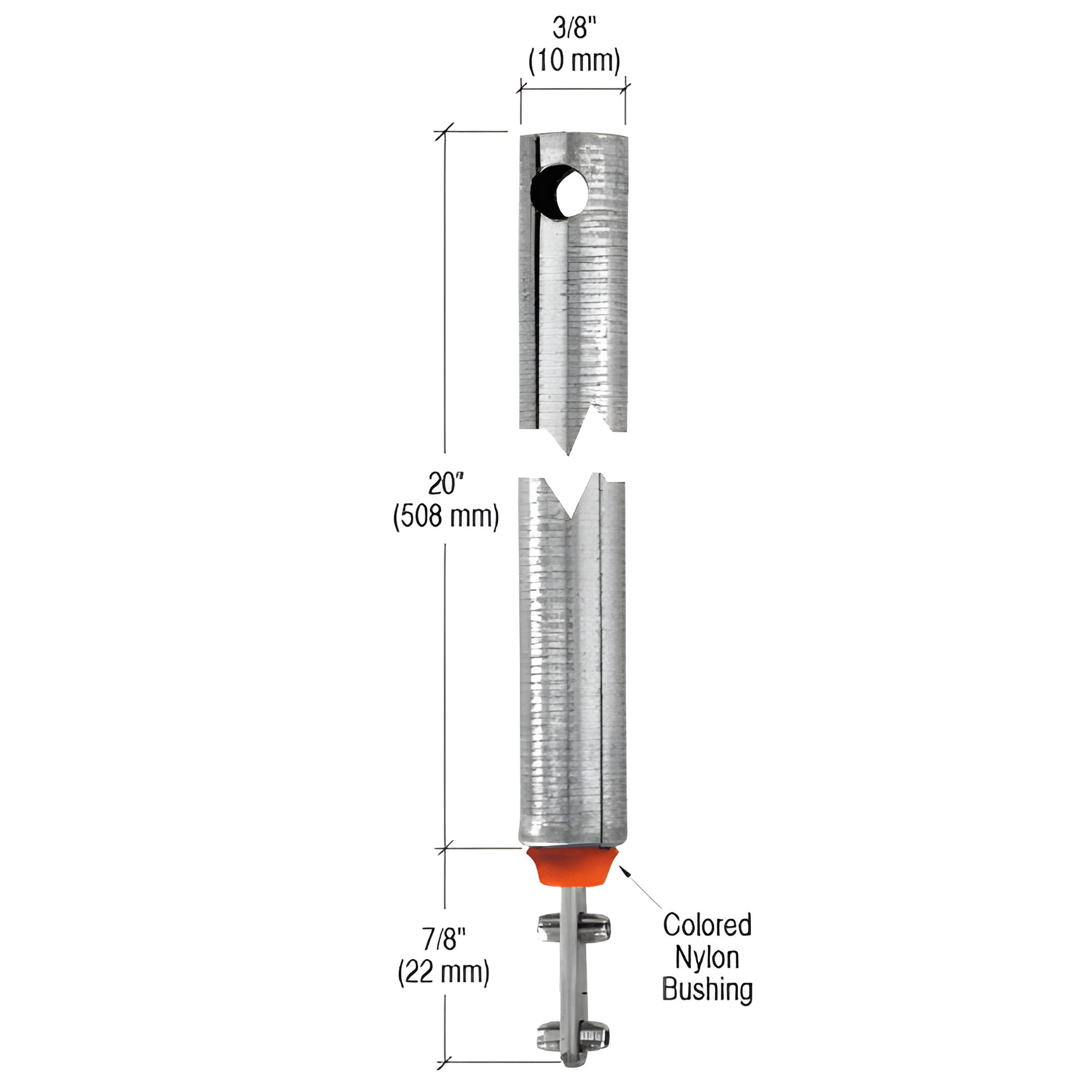

• Tilt-window tubular spiral balance — industry-standard 3/8" (10 mm) tube diameter
• Direct replacement for metal or plastic tube balances

CRL Tubular Spiral Window Balance (SKU: FL2020) — Replacement balance for tilt-type windows with a sash load capacity up to 25 lb (11.3 kg). Replaces same-size spiral balances that use a white bushing. Sold individually; we recommend replacing both balances in a window at the same time for smooth, even operation.

How to order tubular spiral window balances

1. Check the tube diameter on the old balance (should be 3/8" / 10 mm for this model).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing.
4. Verify that the rod extension protruding from the nylon bushing matches the original.
5. Match tube diameter, tube length, and bushing color against the specifications shown next to the catalog number. If all match and the rod extension matches the photo, this is the correct balance.

Need help confirming fit for FL2020? Contact our support team or add to cart to replace your tilt-window balances today.
