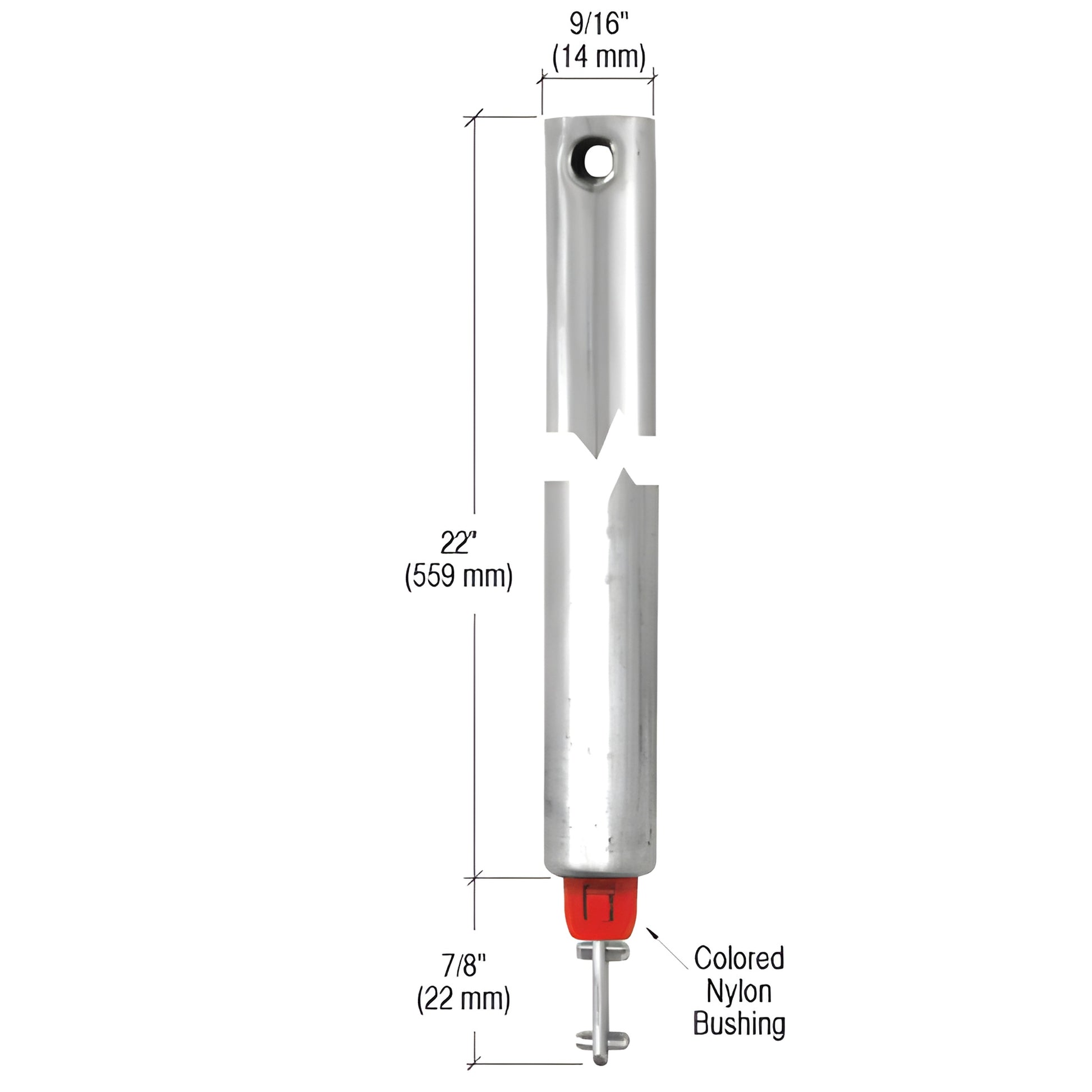

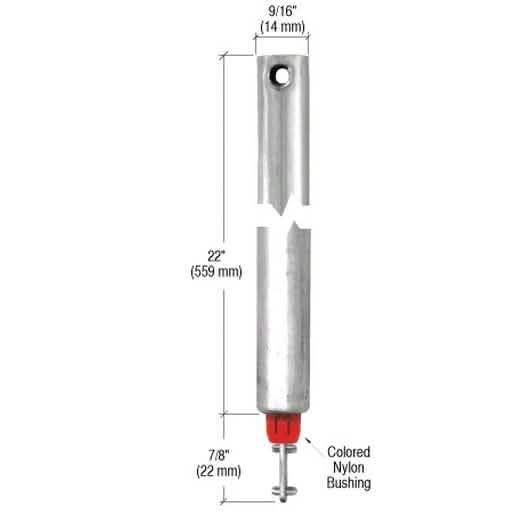

CRL 22" Tubular Spiral Tilt Window Balance Replacement - Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

These CRL Tubular Spiral Window Balances (SKU: FH2220) are designed for tilt-type windows and replace like-sized metal or plastic tube balances with a sash load capacity up to 25 pounds (11.3 kg). They also replace the same-size spiral balance with a white bushing. While sold individually, we recommend replacing both balances in the window at the same time for balanced performance.

How to order the correct tubular spiral window balance:

1. Check the tube diameter on the old balance (9/16" / 14 mm is standard for this SKU).
2. Measure the tube length from the end to the bottom of the colored nylon bushing only—do not include the rod extension.
3. Note the nylon bushing color (red indicates 25 lb capacity).
4. Verify the rod extension protruding from the bushing matches the old balance.
5. Match tube diameter, tube length, and bushing color with the information shown next to the catalog number; if they match and the rod extension matches the photo, this is the correct balance.

Replace worn tilt window balances with this reliable CRL tubular spiral balance (FH2220) for consistent sash operation. Order now to ensure correct fit and balanced performance.
