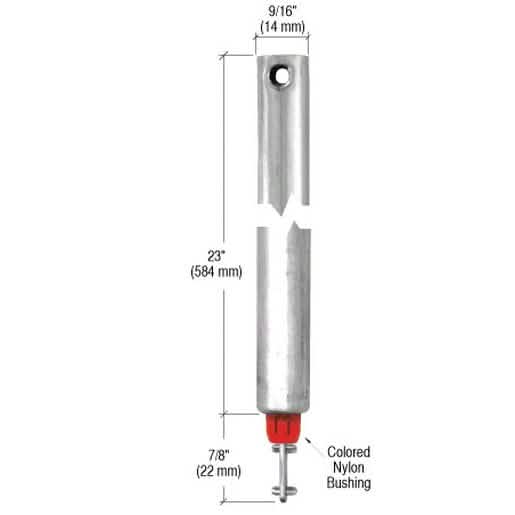

CRL 23-in Spiral Tilt Window Balance Replacement Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance with industry-standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances — replaces same-size spiral balances with a white bushing

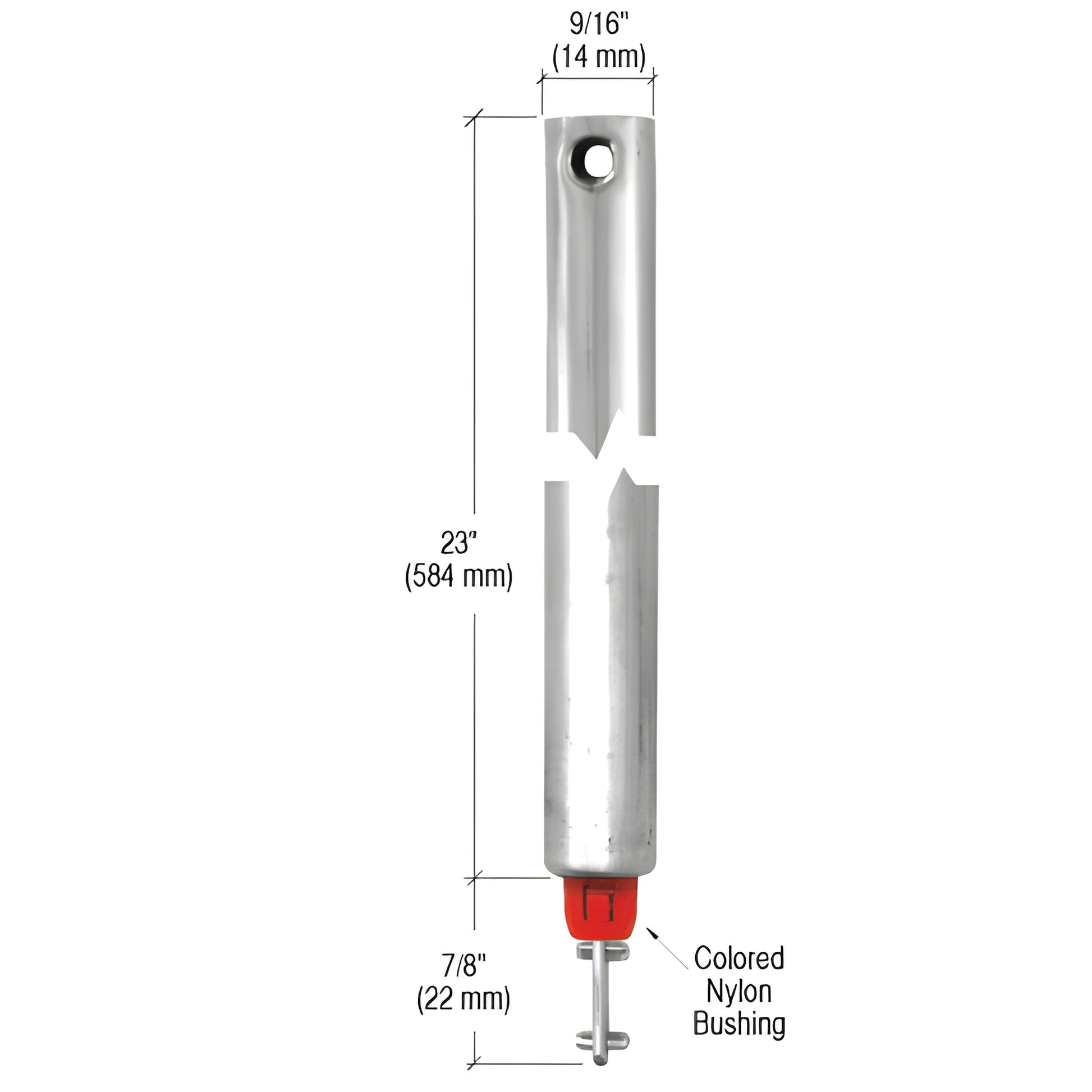

CRL Tubular Spiral Window Balance (SKU: FH2320) — Designed for tilt-type windows, this spiral balance fits 9/16" (14 mm) tubes and supports sash weights up to 25 lb (11.3 kg). Sold individually; for best performance and balanced operation, replace both balances in the window at the same time.

How to order tubular spiral window balances:

1. Check the tube diameter on the old balance (should be 9/16" / 14 mm for FH2320).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (red for this model).
4. Verify the rod extension protrusion matches the photo/spec for reference.
5. Match tube diameter, tube length, and bushing color to the catalog information. If all details match, this is the correct replacement spiral balance.

Order CRL tubular spiral balance FH2320 now to restore smooth tilt-window operation.
