CRL 23" Tubular Spiral Tilt Window Balance Replacement - Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window type with industry-standard 3/8" (10 mm) tube diameter
• Replaces metal or plastic tube balances—matches same-size spiral balances with a white bushing

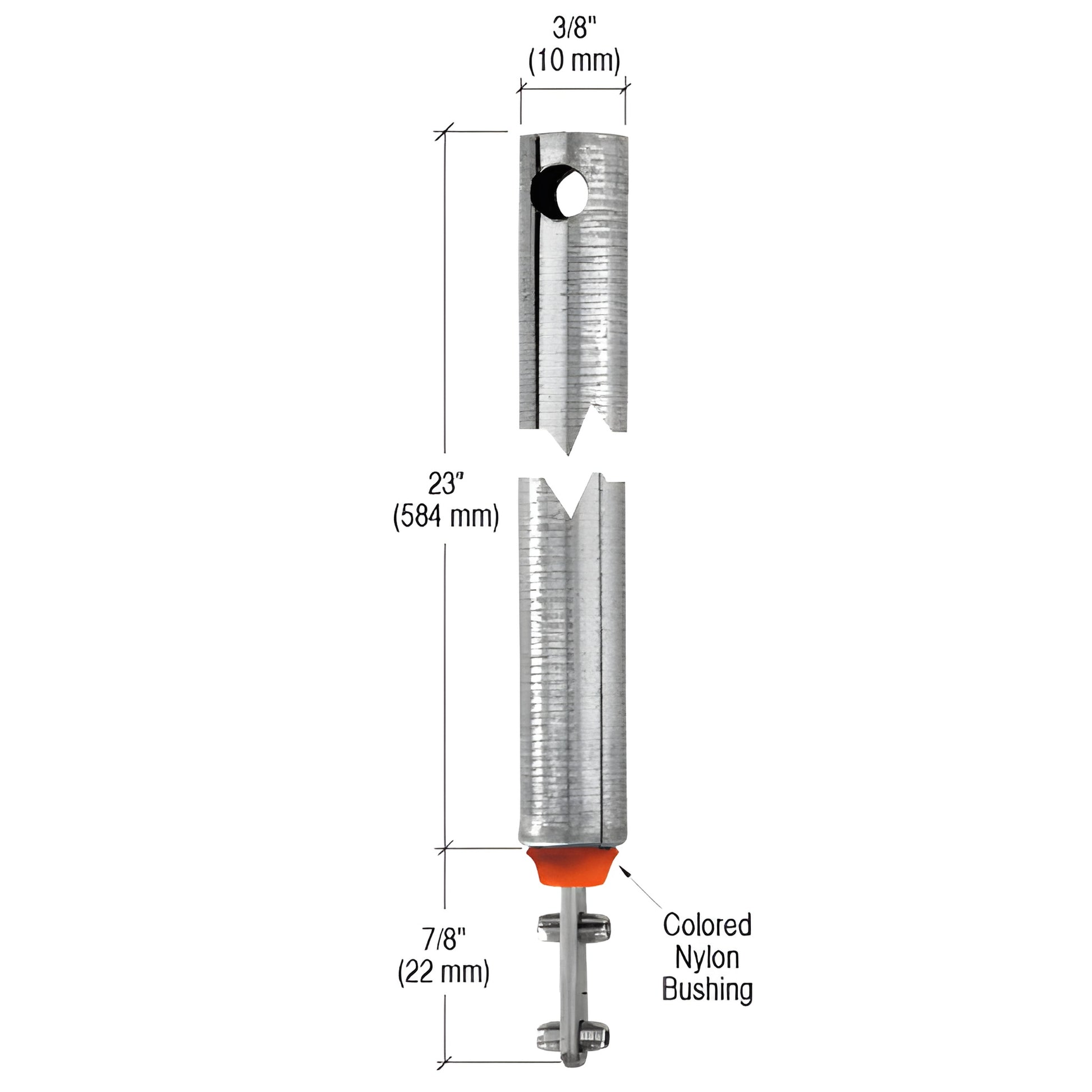

This CRL Tubular Spiral Window Balance (SKU: FL2320) is designed for tilt windows and replaces a metal or plastic tube balance with a sash load capacity up to 25 pounds (11.3 kg). It also replaces same-size spiral balances that use a white bushing. Balances are sold individually; for best performance we recommend replacing both balances in the window at the same time.

How to Order Tubular Spiral Window Balances

1. Check the tube diameter on the old balance (this product fits 3/8" / 10 mm tubes).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (red for this model).
4. Verify the rod extension protruding from the nylon bushing matches your existing balance.
5. Match tube diameter, tube length, and bushing color to the information shown next to the catalog number. If all match and the rod extension matches the photo, this is the correct balance.

Need help confirming compatibility? Contact us or add SKU FL2320 to your cart to start your replacement order.
