CRL 24" Replacement Tubular Spiral Tilt Window Balance Red Bushing

• Red bushing indicates sash load up to 25 lb (11.3 kg)
• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

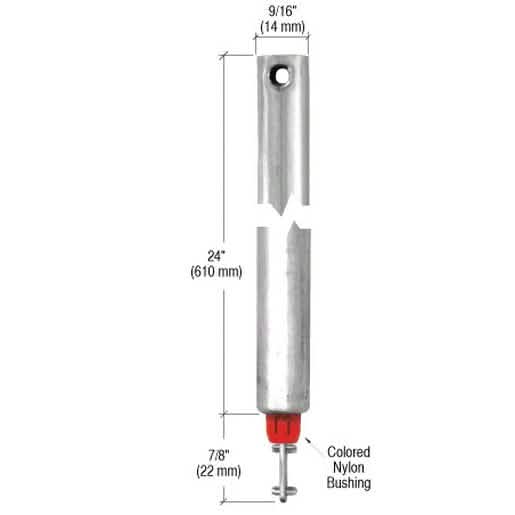

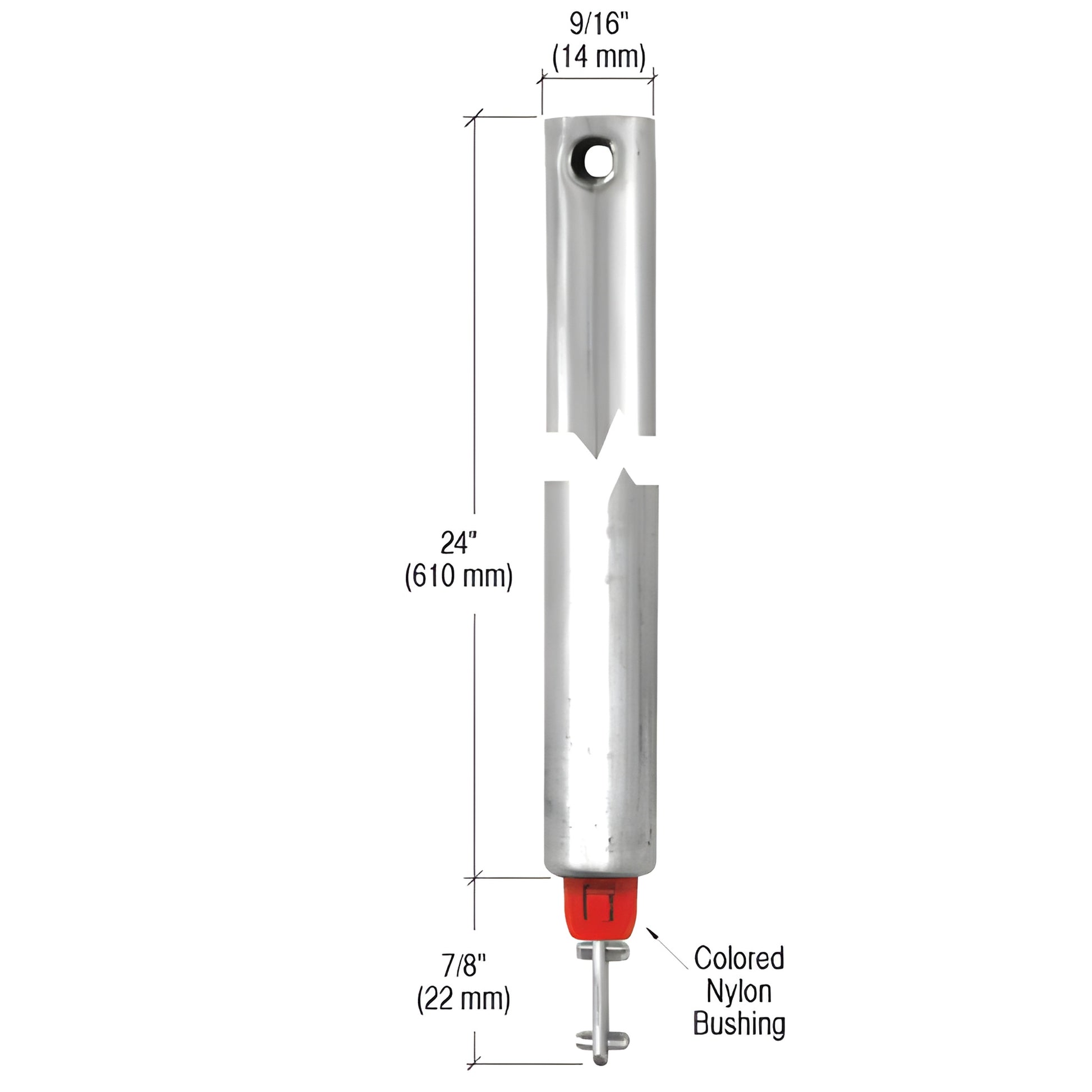

CRL Tubular Spiral Window Balance (SKU: FH2420) — Spiral balance for tilt-type windows with a 9/16" (14 mm) tube diameter and red nylon bushing rated to support sash weights up to 25 pounds (11.3 kg). Replaces the same size spiral balance with a white bushing and is sold individually; we recommend replacing both balances in the window at the same time for balanced operation.

How to order the correct tubular spiral window balance:

1. Confirm the tube diameter of the existing metal or plastic tube (9/16" / 14 mm).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing (red for this SKU).
4. Verify the rod extension protruding from the nylon bushing matches the existing part.
5. Match tube diameter, tube length, and bushing color against the catalog information and product photos to confirm compatibility.

Need help confirming fit? Contact us with your tube length and a photo of the bushing — order FH2420 today to restore smooth tilt-window operation.
