CRL

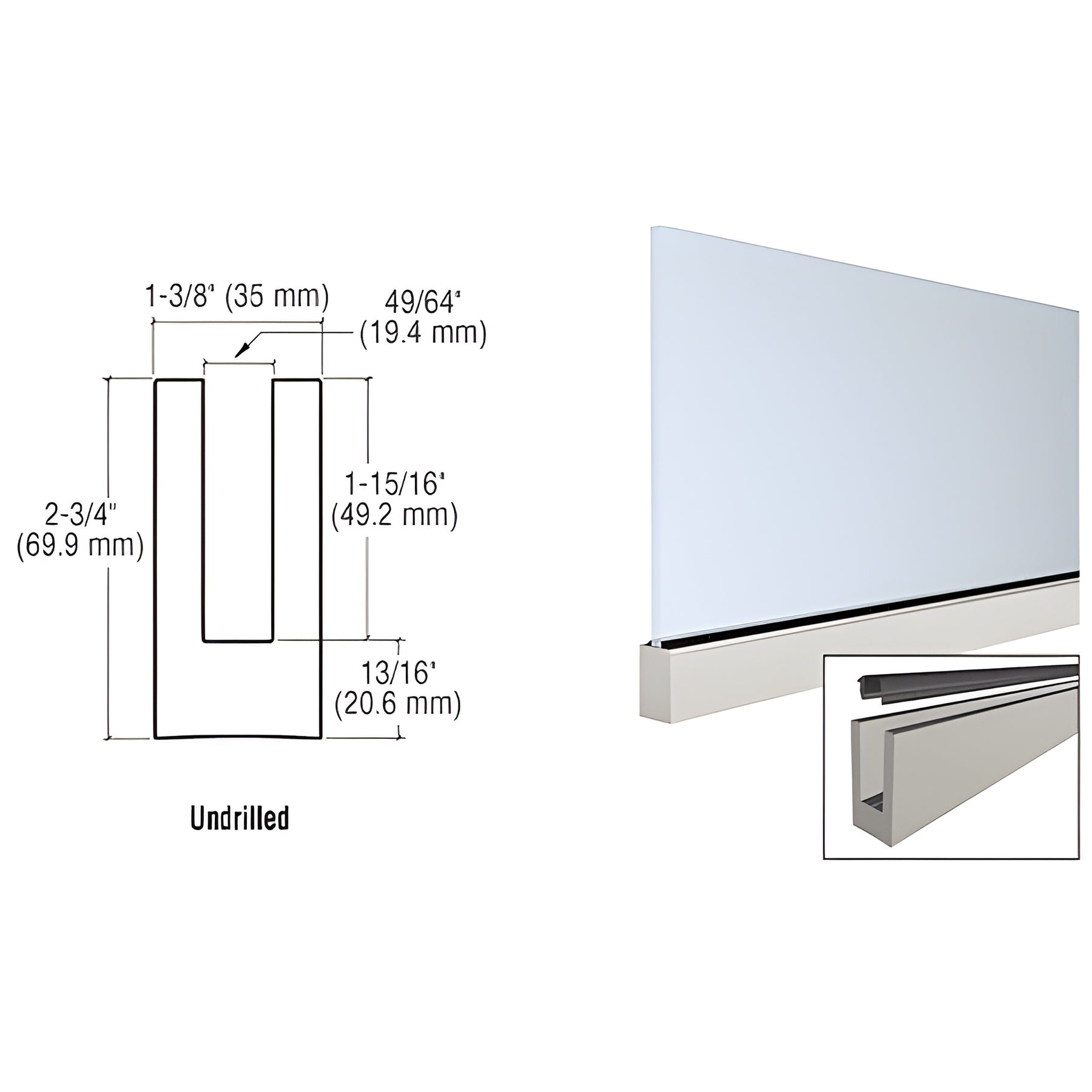

CRL 240" Aluminum Windscreen Base Shoe Extrusion for 3/8 & 1/2" Glass
Item# W5B20
Shipping Weight: 27.53 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 27.53 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Mill
Glazing Thickness - Dry Glaze
3/8 Inch
Glazing Thickness - Monolithic
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
240 in. (6096 mm)
Material
Aluminum
Profile
Undrilled
Width
1-3/8 in. (35 mm)
- Works with TL3X10 TAPER-LOC® Sets
- Ideal for windscreens and privacy partitions
- Available drilled or counter-bored — or we will custom drill to your specifications
- 6063 Alloy, T52 temper
CRL Standard Small Profile Windscreen Base Shoe (SKU: W5B20) fits 3/8" or 1/2" (10 or 12 mm) tempered glass and is commonly used as the base channel for windscreens and privacy partitions. It secures each glass panel using CRL's patented Dry Glazed TAPER-LOC® system for fast, dry installation. Not recommended for handrail/guardrail applications. Most windscreen projects use 3/8" (10 mm) monolithic tempered glass; if 1/2" (12 mm) glass is required, use CRL's wet glaze method.
Product Warning:
All heavy base shoes have a stock length tolerance of ±3/4" (19 mm).
Most shipping weights are approximate. If exact weight is required to determine shipping costs, request this prior to ordering by contacting CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.
Order this small profile windscreen base shoe for durable, easy-to-install tempered glass partitions — contact us to confirm drilling options and lead time.
