CRL 24x36 Door Vision Lite Glass Insert

• Beveled Vision Lite frame available in several sizes (SKU: VLFEZ24X36)
• Fire-rated door vision lite — available with or without wire glass
• Bronze powder coat finish for corrosion resistance
• Fits glazing thickness of 3/16" to 1/4" (5–6 mm)
• Customer-supplied glass

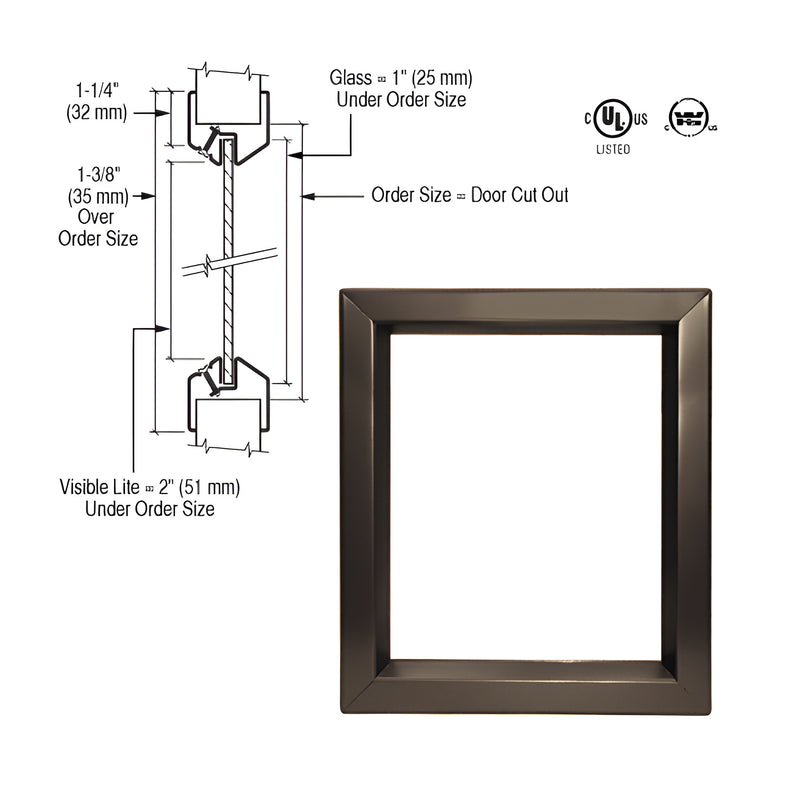

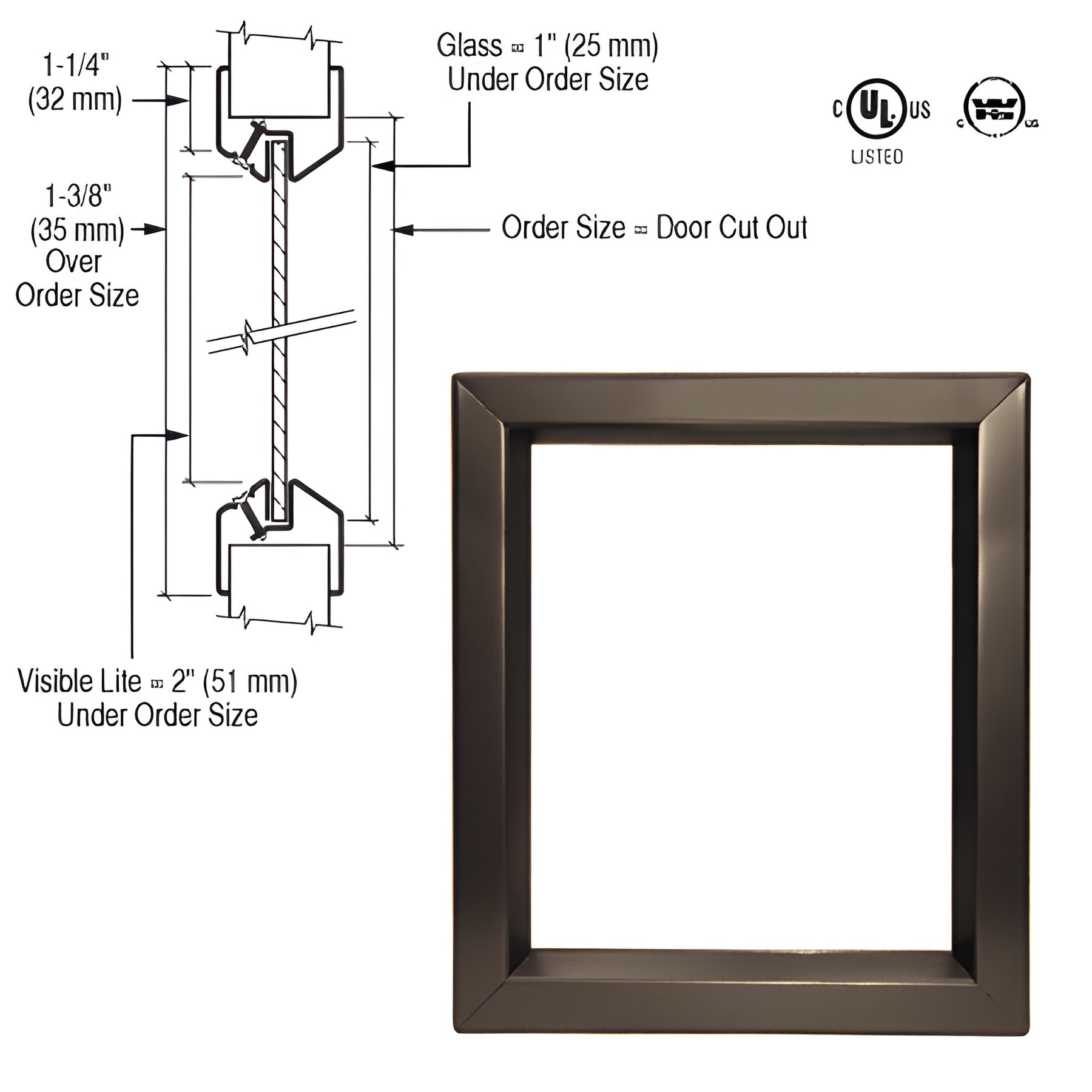

CRL's Door Vision Lites are constructed from 20 gauge CRS bronze powder-coated frames and are designed for 1-3/4" (44 mm) thick doors in sizes from 5" x 35" (127 x 889 mm) to 24" x 60" (610 x 1,524 mm). Vision Lites feature mitered, welded corners, a continuous glass retainer, and countersunk mounting holes in the bevel on the non-corridor side. These fire-rated vision lites are listed with both UL and WHI. Custom sizes and finishes are available upon request.

Order the VLFEZ24X36 beveled, fire-rated door vision lite or contact CRL for custom sizes and finishes.
