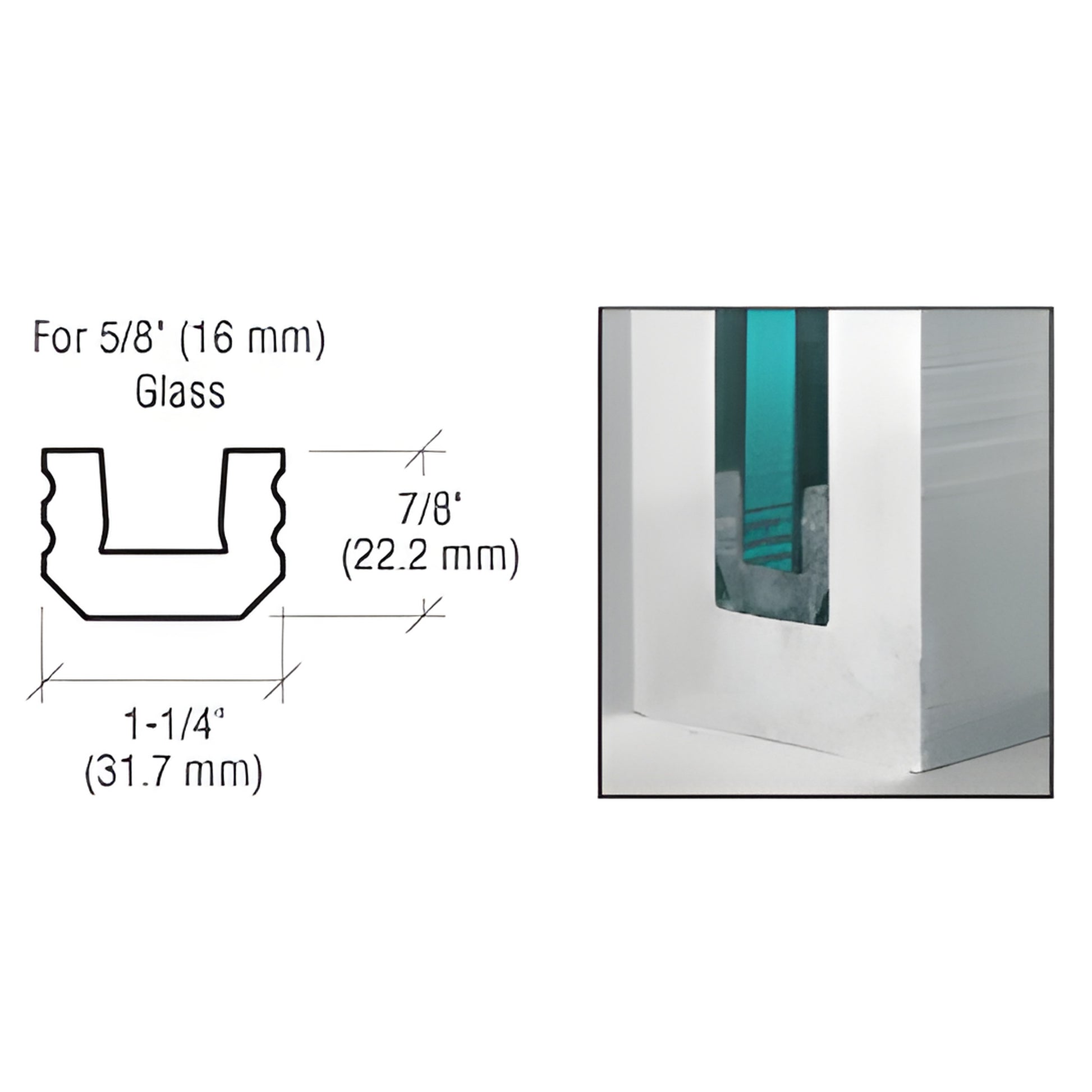

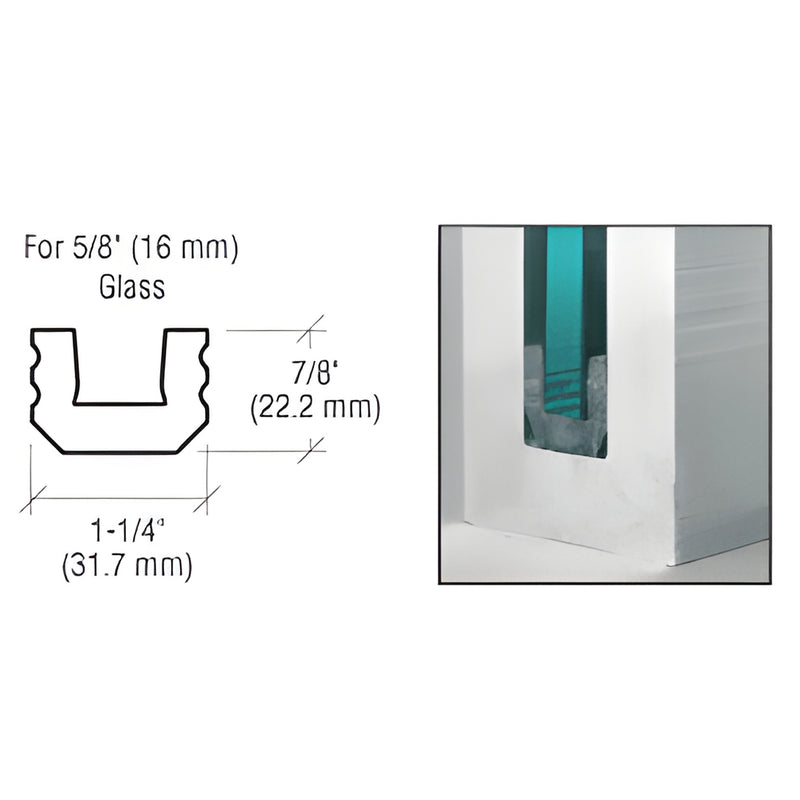

• GR6UB25 black EPDM centering block for 5/8 in (16 mm) glass - cross section diagram and installed view
1 1

CRL

CRL 25 ft Glazing Setting & Centering Block for 5/8" Glass

CRL 25 ft Glazing Setting & Centering Block for 5/8" Glass

$321.17 CAD
$321.17 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# GR6UB25
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Roll
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black
Material
Rubber

Overview

  • Easily center glass panels in handrail base shoe using pre-cut EPDM blocks
  • Supports glass panels for expanding cement installations and glass railing systems
  • Available in 4" (102 mm) cut pieces or 25' (7.6 m) bulk rolls

CRL Setting and Centering Blocks (SKU: GR6UB25) are compatible with B5L, B5S, B5T, B6S, B7S, L56S, L68S, L21S, and L25S Series base shoe systems. Stocked in pre-cut 4" (102 mm) pieces, these blocks are made of black EPDM rubber for durability, weather resistance, and long service life in glass railing and storefront applications.


Packaging & Installation: Sold as 4" (102 mm) pieces or 25' (7.6 m) rolls that can be cut to any length. CRL recommends placing two 4" pieces at the quarter points along the bottom edge of each glass panel for secure centering and even load distribution.


Product Warning:

Minimum order for 4" pieces is 20 each. Must be ordered in increments of 20.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Need assistance or to order GR6UB25 EPDM setting blocks for glass railings? Contact CRL Customer Service to place an order or request exact shipping weight.
