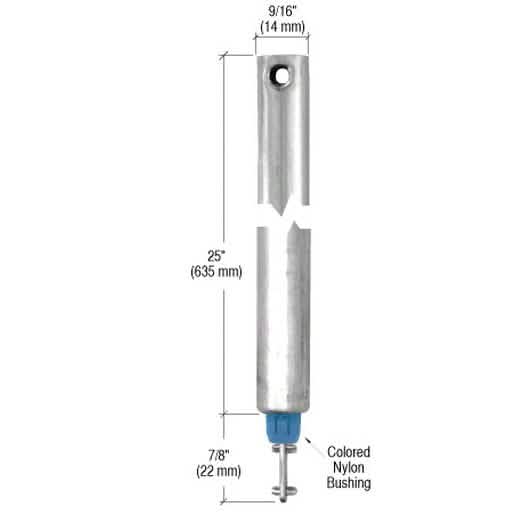

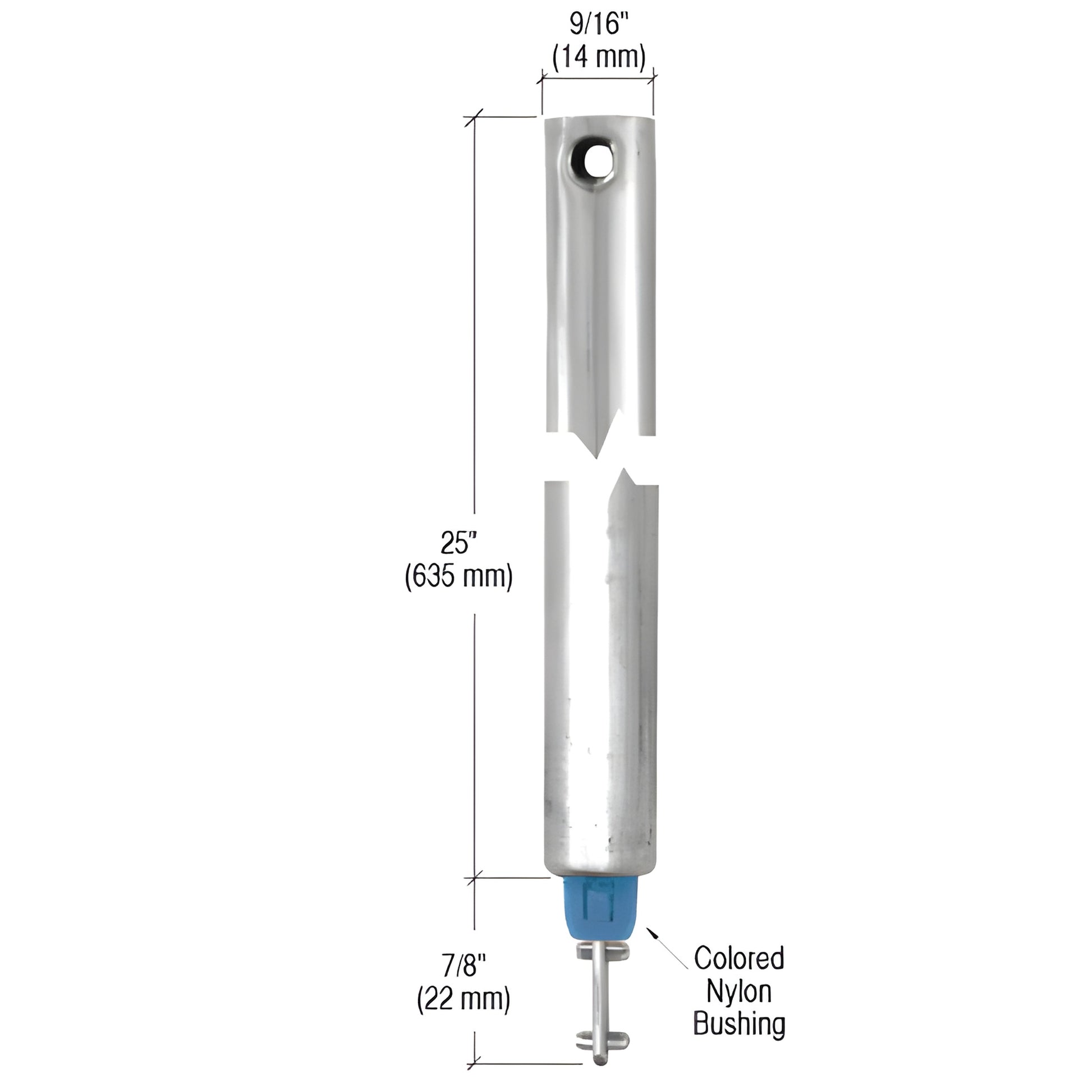

CRL 25" Tubular Spiral Tilt Window Balance Replacement - Blue Bushing

• Blue bushing indicates sash load weights up to 22 pounds (9.5 kg)
• Tilt sash window balance for 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

This CRL Tubular Spiral Window Balance (SKU: FH2530) is a 9/16" (14 mm) tilt window balance with a blue nylon bushing rated for sash loads up to 22 pounds (9.5 kg). Sold individually — for best performance and balanced operation, replace both balances in the window at the same time.


How to order a 9/16" tubular spiral window balance (tilt sash replacement):
1. Confirm your old balance has a 9/16" (14 mm) tube diameter.
2. Measure tube length from the end of the balance to the bottom of the colored nylon bushing only (exclude the rod extension).
3. Check the nylon bushing color (blue indicates up to 22 lb).
4. Verify the rod extension protruding from the bushing matches your existing part.
5. Match tube diameter, tube length, and bushing color to the information shown next to the catalog number. If all match and the rod extension looks the same, this is the correct balance.

Order FH2530 now
