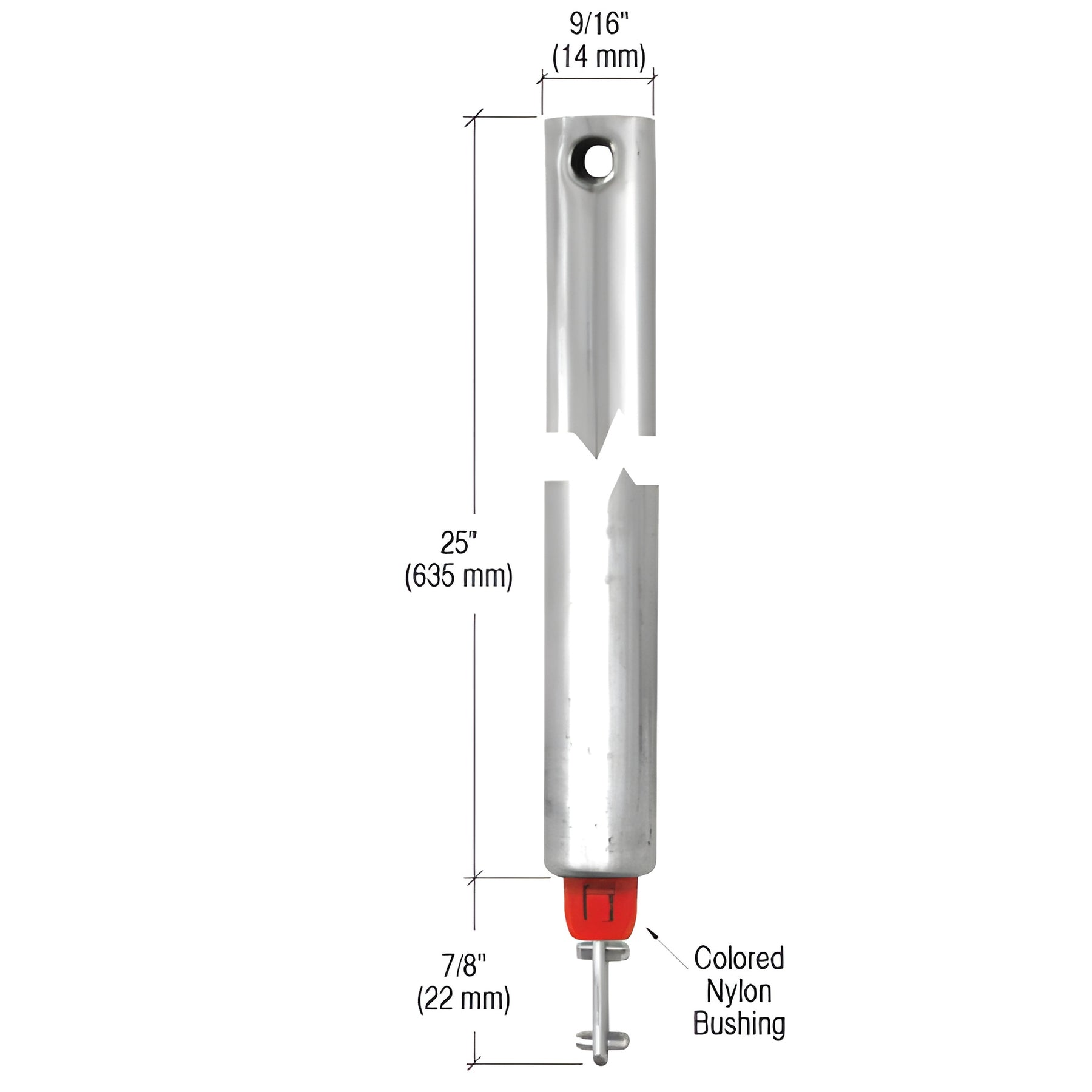

CRL 25 in Tubular Spiral Tilt Window Balance Red Bushing Replacement

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

These CRL tubular spiral window balances are designed for tilt-type windows and replace existing metal or plastic tube balances with a sash load capacity up to 25 pounds (11.3 kg). They also interchange with the same size spiral balance that uses a white bushing. Each balance is sold individually; for balanced operation we recommend replacing both window balances at the same time. SKU: FH2520.

How to order tubular spiral window balances

1. Check the tube diameter of the existing metal or plastic balance tube.

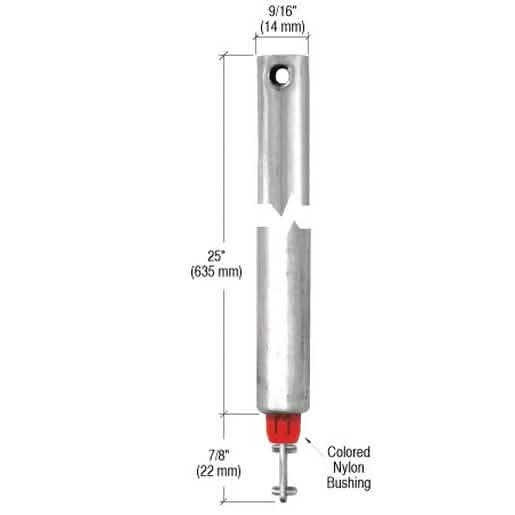

2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing.
4. Verify the rod extension protruding from the nylon bushing matches the original.
5. Match tube diameter, tube length, and bushing color to the information shown next to the catalog number. If all match and the rod extension corresponds to the photo, this is the correct replacement balance.

Order the correct CRL tubular spiral window balance for tilt windows now to restore smooth, reliable sash operation.
