CRL
CRL 26 in Spiral Tilt Window Balance Replacement - Blue Bushing
CRL 26 in Spiral Tilt Window Balance Replacement - Blue Bushing
Regular price
$12.98 CAD
Regular price
Sale price
$12.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FH2630
Shipping Weight: 10.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Bushing Color
Blue
Heaviest Vent Weight Range
22
Tube Diameter
9/16
Tube Length
26
Window Type
Tilt
Overview
- Blue bushing indicates sash load up to 22 pounds (9.5 kg)
- Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
- Direct replacement for metal or plastic tube balances

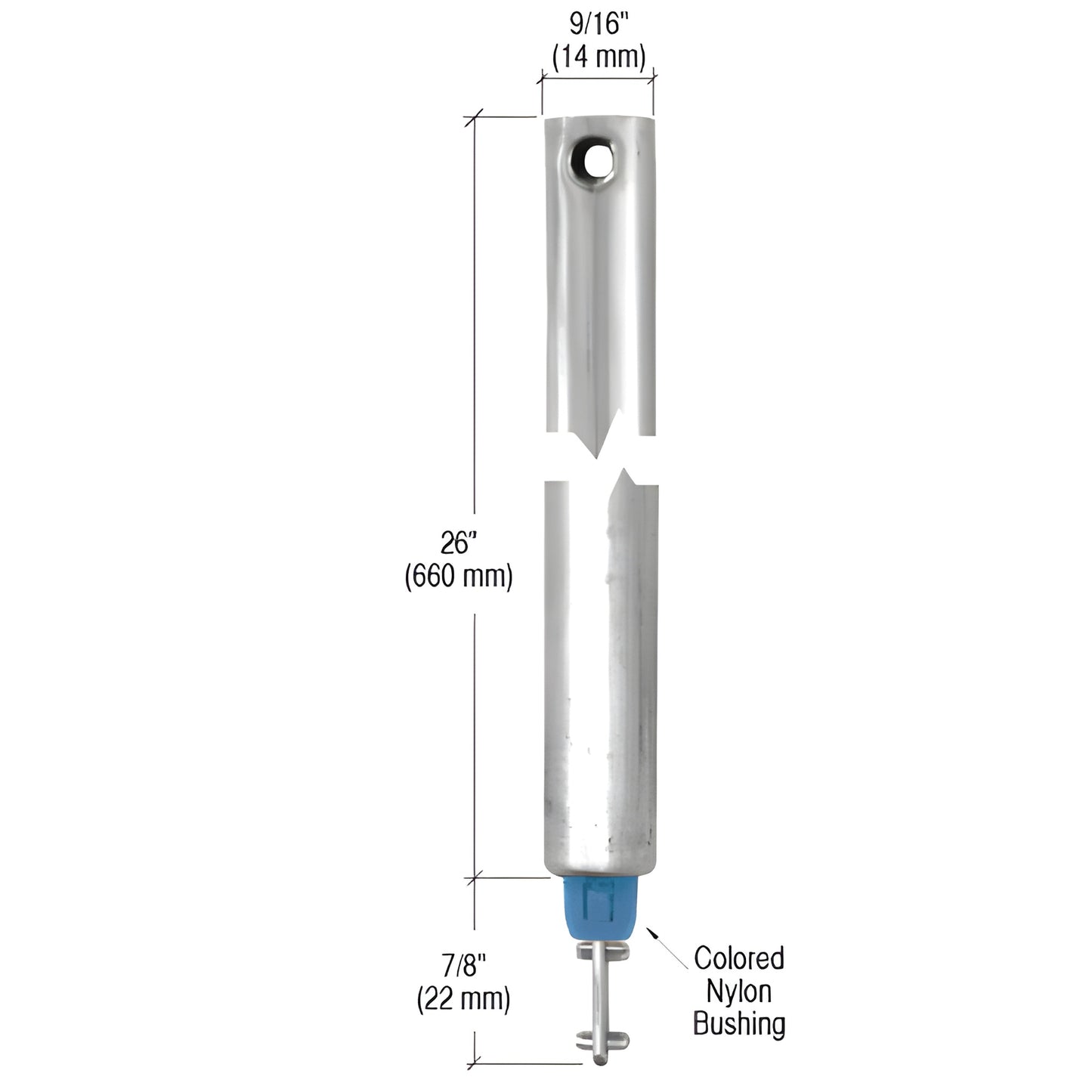

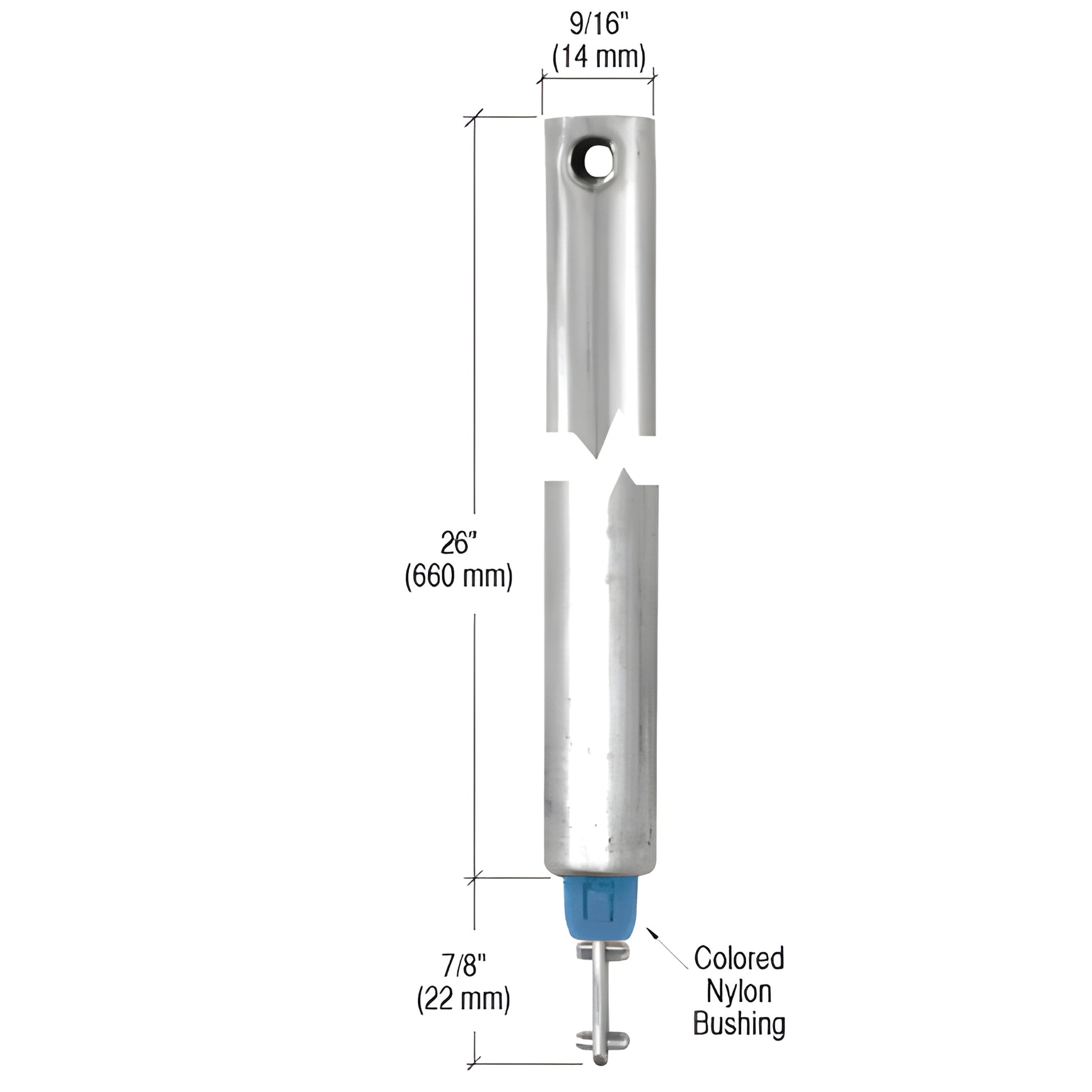

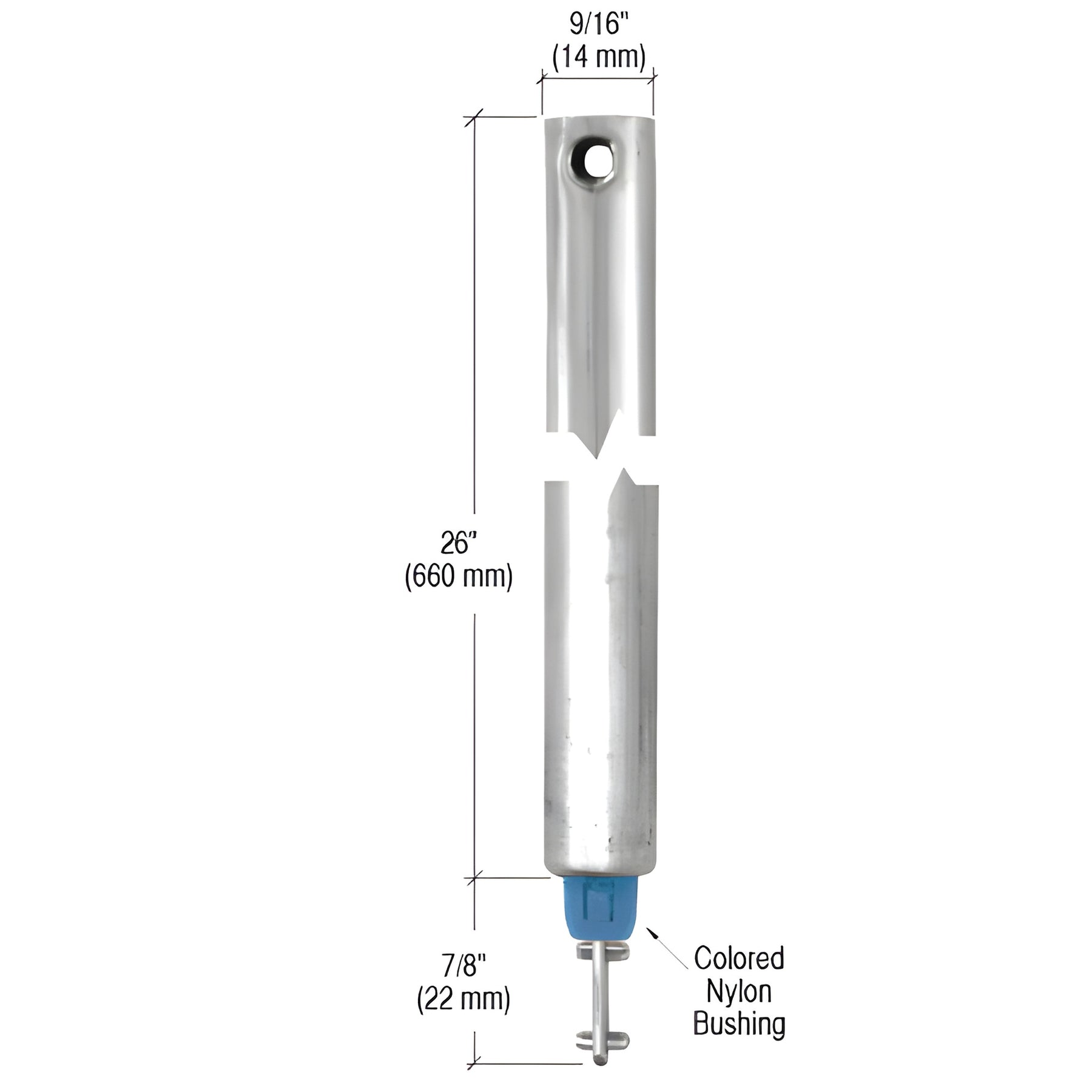

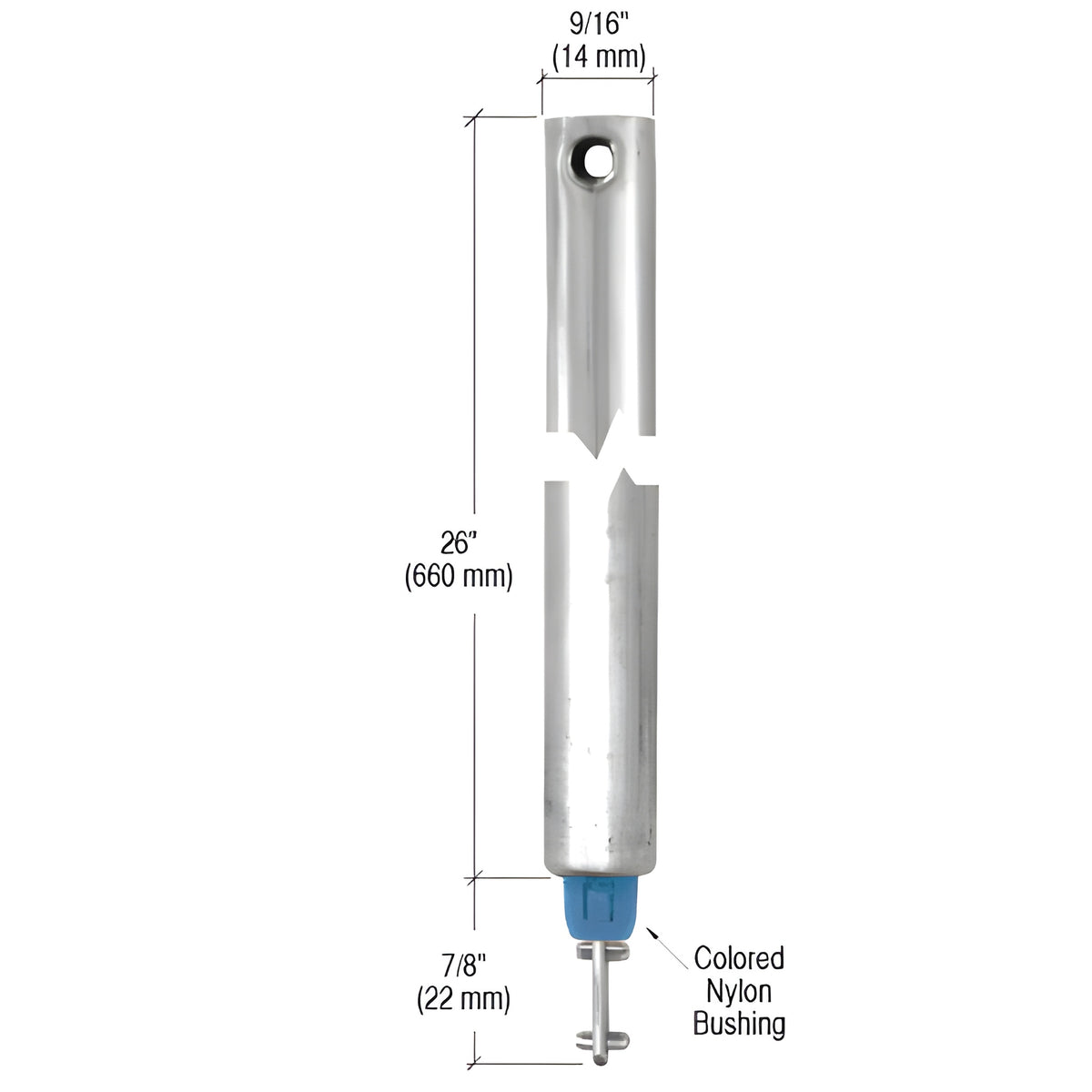

This CRL Tubular Spiral Window Balance (SKU: FH2630) fits tilt-type windows and replaces 9/16" (14 mm) metal or plastic tube balances with a sash load capacity up to 22 pounds (9.5 kg). Sold individually; for balanced performance we recommend replacing both balances on the window at the same time.
How to order tubular spiral window balances:
- Check the tube diameter on the old balance (9/16" / 14 mm for this model).
- Measure tube length from the end to the bottom of the colored nylon bushing only — do not include the rod extension.
- Confirm the nylon bushing color (blue for this version).
- Verify the rod extension protruding from the nylon bushing matches your existing part.
- Match tube diameter, tube length, and bushing color against the information shown next to the catalog number. If all match and the rod extension is the same as the photo, this is the correct balance.
Find the correct FH2630 tubular spiral window balance for your tilt window and order now to restore smooth sash operation.
