CRL 27" Spiral Tilt Window Balance Replacement - Red Bushing

• Red bushing indicates sash load capacity up to 25 lb (11.3 kg) — ideal for lightweight tilt windows
• Tilt window tubular spiral balance with industry-standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances; matches same-size spiral balances with white bushing

These CRL Tubular Spiral Window Balances (SKU: FH2720) are designed for tilt-type windows and replace metal or plastic tube balances with a sash load capacity up to 25 lb (11.3 kg). The red nylon bushing is a quick visual differentiator and this balance is sold individually — we recommend replacing both balances in a window at the same time for even performance and longer life.


How to order tubular spiral window balances (step-by-step):

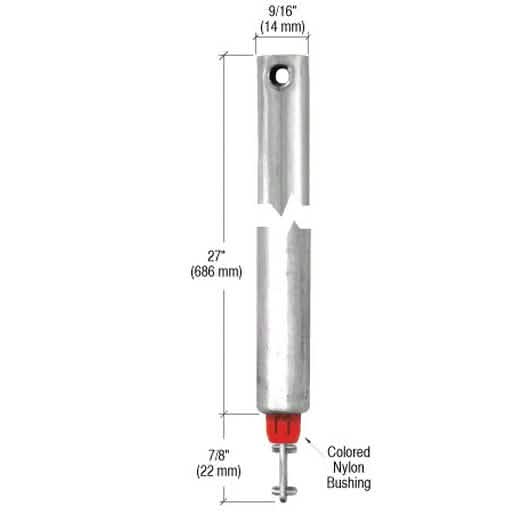

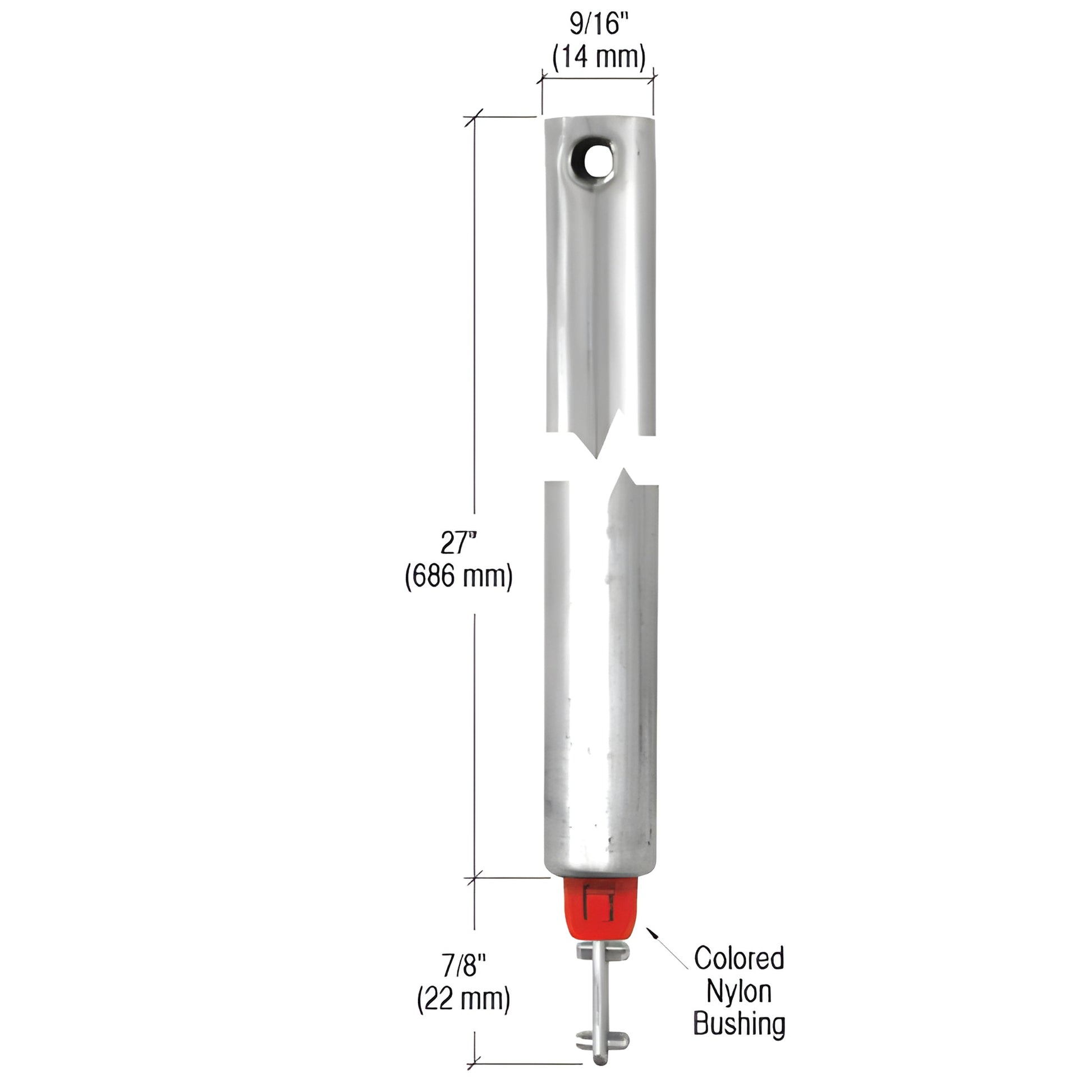

• 1. Check the tube diameter on the old balance (this product uses a 9/16" / 14 mm tube)
• 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension
• 3. Confirm the color of the nylon bushing (red for this balance)
• 4. Verify the rod extension length protruding from the nylon bushing matches the photo
• 5. Match tube diameter, tube length, and bushing color to the information shown next to the catalog number; if all match, this is the correct balance

Find the correct tubular spiral window balance FH2720 for your tilt window repair — order now to restore smooth sash operation.
