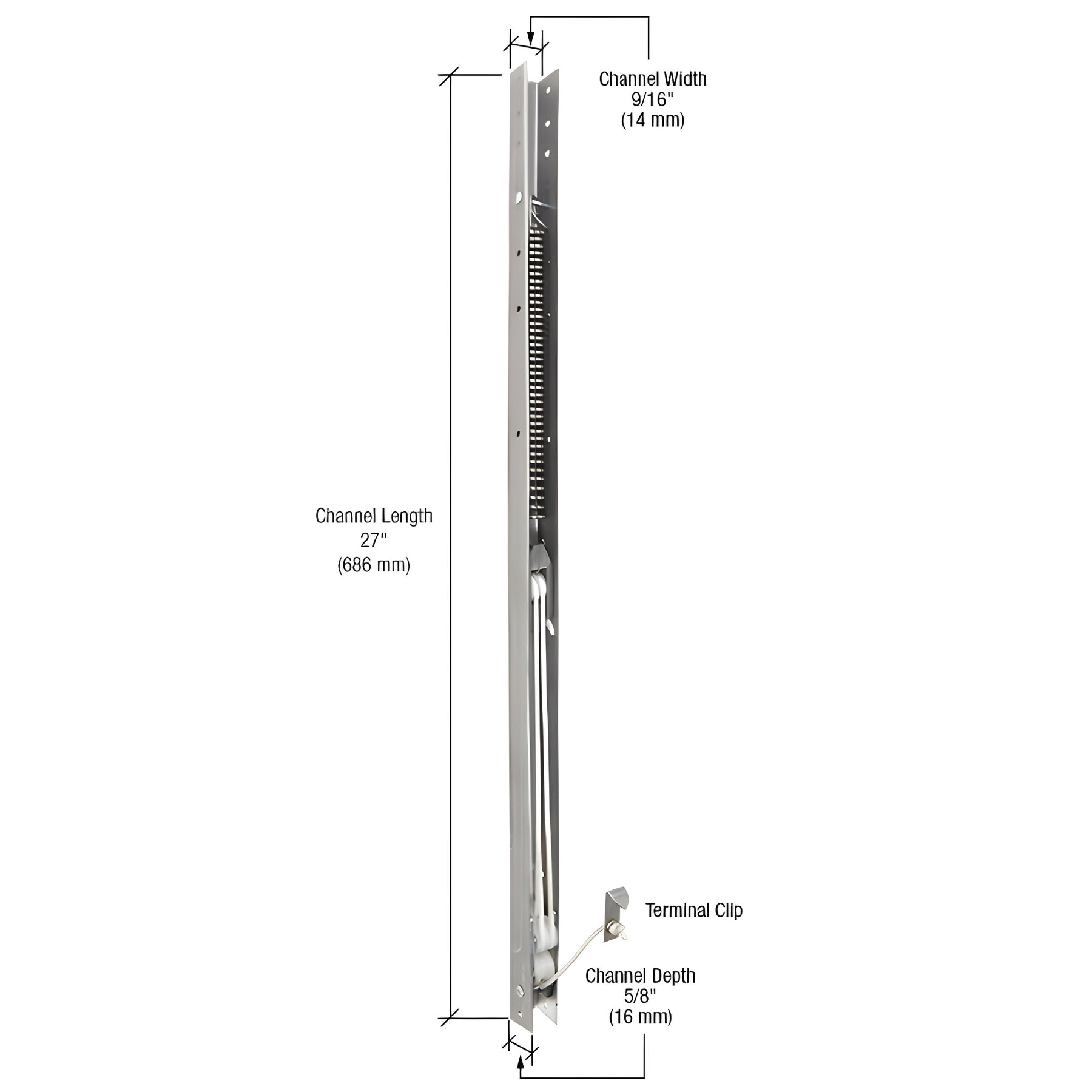

- Measures 5/8" (16 mm) channel depth — commonly referred to as 1/2" (13 mm) in the trade
- Available in 10, 20, 30, 40 and 50 weight-range balances in lengths from 13" to 43" (330 mm to 1.09 m)
Each CRL
FA Series 4/40 and 5/50 weight range sash balances is a heavy-duty window channel balance designed for reliable counterbalancing of single- and double-hung sashes. These channel balances require nylon top and bottom guides to be riveted onto the channel. Customers can order balances with guides factory-attached or purchase guide kits (rivets included) to install guides in the field. For secure installation, CRL offers the Cat. No.
H3740 Rivet Set Tool, which properly mushrooms rivets for a strong set.
Ordering Tips for FA Series sash balances
Remove the existing channel balance from the window and measure the metal channel only — do not include guides. Record the measurement in full-inch increments. Always check the stamped or laser-etched code on the back of the channel balance (either four digits or two digits plus a dash and a number, e.g., 2710 or 27-1) and use that code to match the CRL catalog number (for example, a stamped 1710 or 17-1 on an 18" channel corresponds to CRL Cat. No. FA1710).
Note: Some manufacturers have used special 1/2" (12.7 mm) increment channel lengths—these are not normally stocked but can be special ordered.
If the stamped code is unreadable, use the weight-range chart for reference. The listed 10, 20, 30, 40 and 50 designations indicate the counter-balance weight range a pair of channel balances will support; this does not account for extra friction from heavy weatherstripping. Special-order balances are available for nonstandard weight designations (for example parts stamped with 90 or 9, or codes with “DS” indicating a specially calibrated sash weight). Provide any special sash application (upper or lower sash) when ordering.
Product Warning:
The first two numbers of the CRL catalog number do not represent the channel length.
Most shipping weights are approximate and have not been verified. If exact shipping weight is required to calculate shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.
