CRL 28 in Tubular Spiral Tilt Window Balance Replacement Blue Bushing

• Blue bushing — for sash loads up to 35 lb (15.9 kg)
• Tilt window tubular spiral balance, industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic 9/16" tube balances

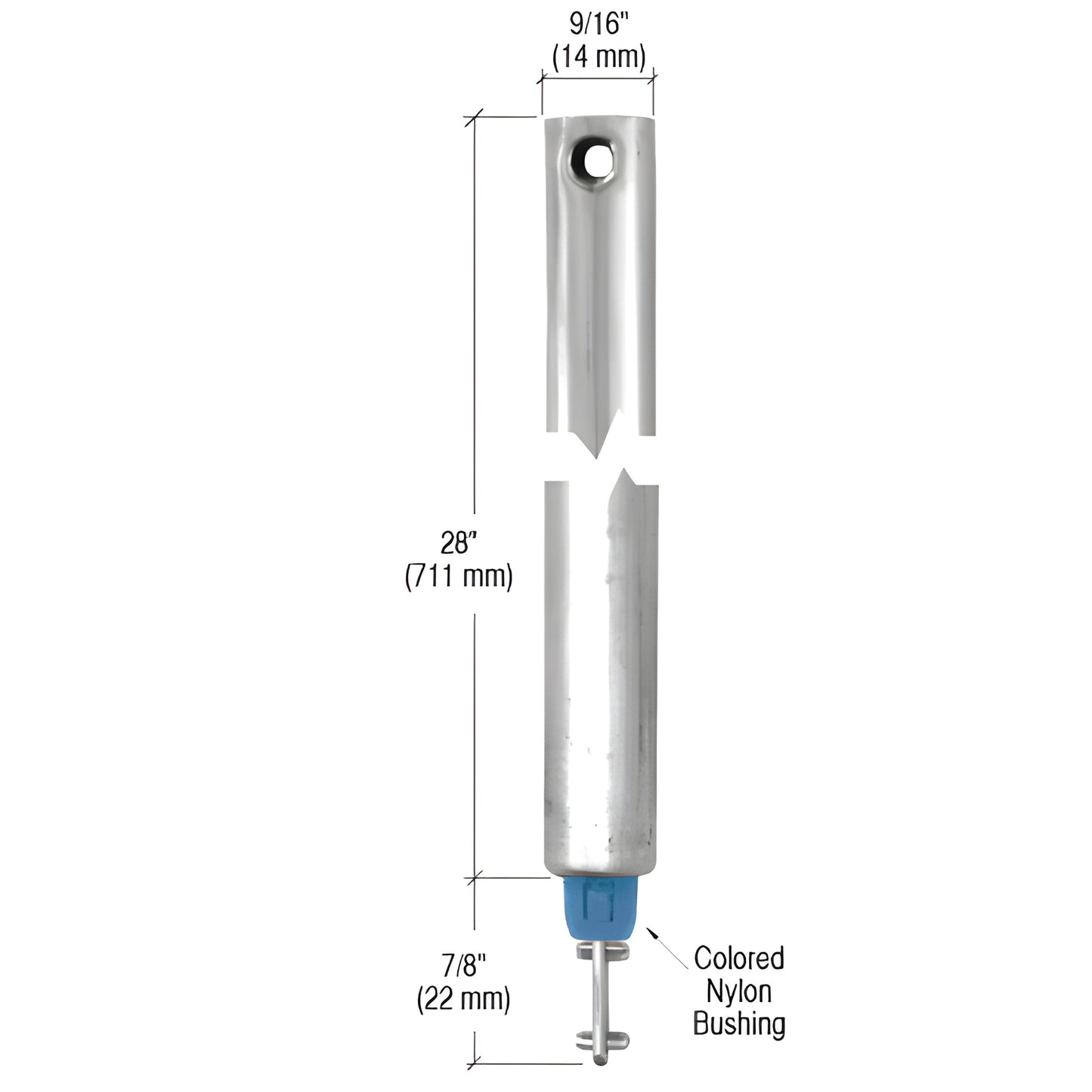

CRL Tubular Spiral Window Balance (SKU: FH2830) — Replacement balance for tilt-type windows. Fits 9/16" (14 mm) tube diameter and supports sash weights up to 35 lb (15.8 kg). Sold individually; for best performance we recommend replacing both balances in the window at the same time.

How to order tubular spiral window balances:

1. Check the tube diameter of the old metal or plastic tube (must be 9/16" / 14 mm).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only (do not include the rod extension).
3. Confirm the color of the nylon bushing (blue indicates up to 35 lb).
4. Verify the rod extension length protruding from the nylon bushing matches the existing balance.
5. Match tube diameter, tube length, and bushing color to the product information shown with the catalog number. If all match and the rod extension looks the same as the photo, this is the correct balance.

Replacement tubular spiral balance FH2830 is optimized for 9/16" tilt windows and blue-bushing, 35 lb sash loads.

Order now to ensure a precise fit and smooth tilt window operation.
