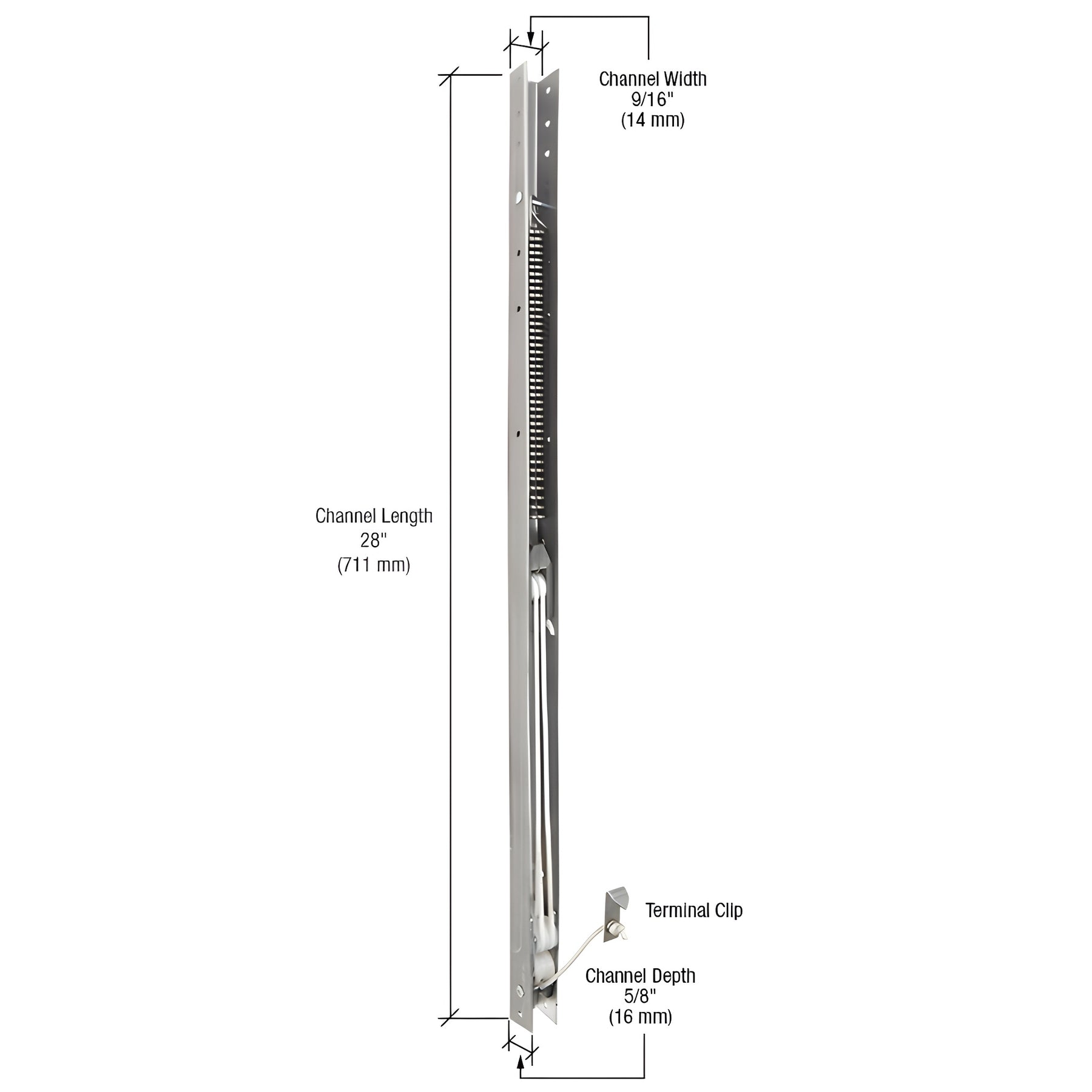

- Measures 5/8" (16 mm) depth — commonly referred to in the trade as 1/2" (13 mm)
- Available in 10, 20, 30, 40 and 50 counterbalance weight ranges; lengths from 13" to 43" (330 mm to 1.09 m)
Each CRL
FA Series 2/20 Weight Range Sash Balances (example SKU: FA2720) pairs with nylon top and bottom guides that must be riveted to the channel. For easy installation, order channel balances with guides pre-attached at the factory, or choose guide kits with rivets included to install yourself. For the strongest rivet set, use CRL Cat. No.
H3740 Rivet Set Tool, which mushrooms the rivet for a secure hold. These durable window channel balances are a reliable replacement for sash balances and OEM-style window hardware.
Ordering Tips for FA Series Sash Balances
- Remove the existing channel balance and measure the metal channel only — do not include the guides. Measure to the nearest full inch.
- Some manufacturers used special 1/2" (12.7 mm) increment channel lengths; these are not stocked but can be special ordered.
- Always check the stamped or laser-etched number on the back of the channel balance (four numbers or two numbers and a letter), for example: 2710 or 27-2. Use that stamped code to match the CRL catalog number (for example, stamped 1710 or 17-1 on an 18" channel corresponds to CRL Cat. No. FA1710).
- The catalog chart also lists vent weight ranges — the sash weight a pair of channel balances will hold. This does not account for excessive weatherstrip friction. Use the weight chart for reference if the stamped number is unreadable.
Special weight-range channel balances are available by special order. Stocked balances run FA1210 through FA4240; the 10, 20, 30, 40 and 50 indicate the counter-balance weight designation. If a channel balance shows 90 (or 9
