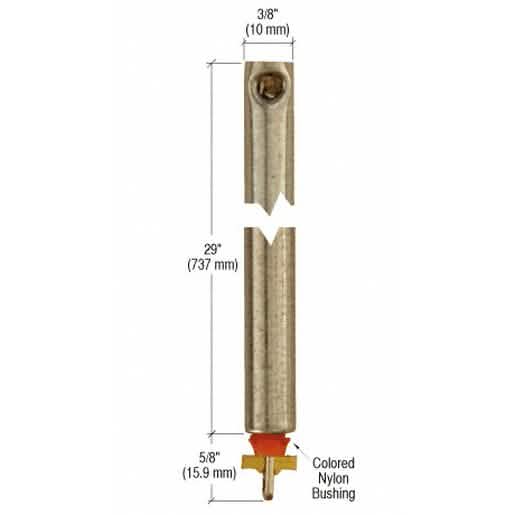

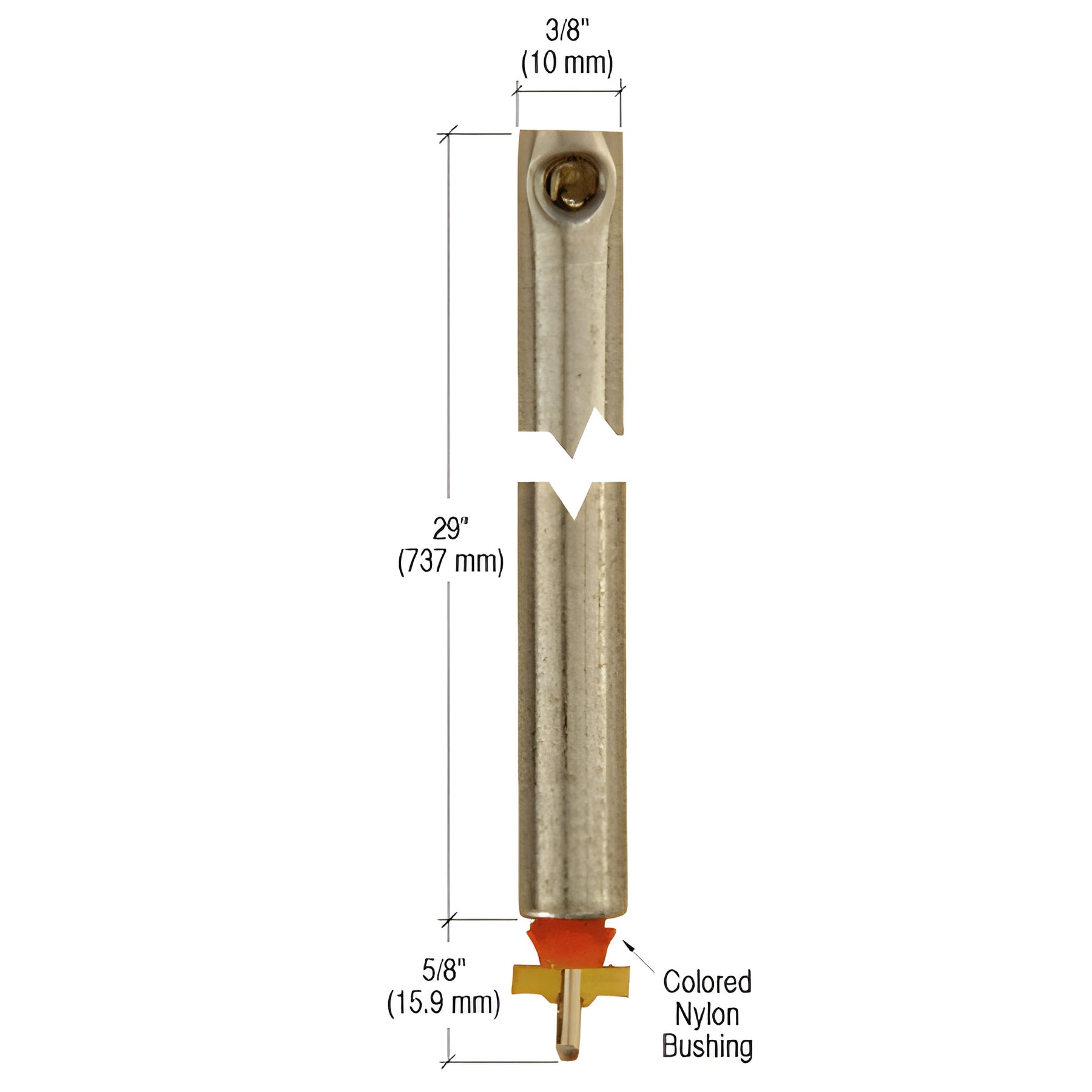

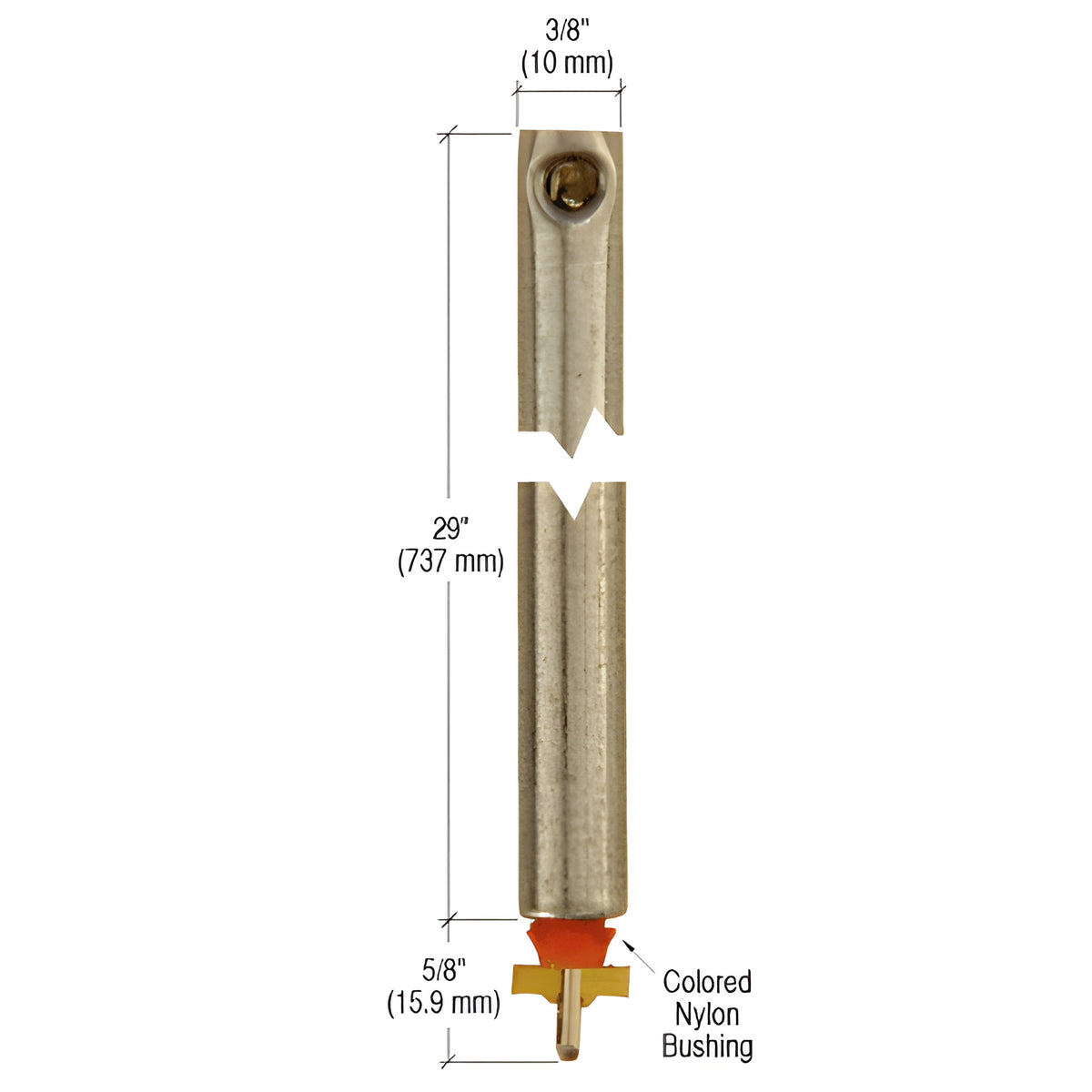

CRL 29" Spiral Non-Tilt Window Balance Replacement - Red Bushing

• For sash load weights up to 25 pounds
• Industry-standard 3/8" (10 mm) tube diameter — fits Series FM/FR replacements
• Direct replacement for metal or plastic tube balances and spiral balances with a white bushing

This standard-duty CRL Tubular Spiral Non-Tilt Window Balance (SKU: FM2920) replaces existing metal or plastic tube balances for single- and double-hung windows with sash loads up to 25 lb. Designed to match industry 3/8" tubes, it’s an easy retrofit for spiral balances with white or red bushings. For best performance, replace both balances in the window at the same time.

How to order tubular spiral window balances

• 1. Identify tube diameter on the old balance: 9/16" = Series "FJ"; 3/8" = Series "FM" or "FR" depending on the rod fitting.
• 2. Measure the tube length only — do not include the rod length.
• 3. Check the nylon bushing color: white or red = standard-duty; blue = heavy-duty.
• 4. Verify the rod fitting protruding from the nylon bushing and choose the correct series ("FM" or "FR") for 3/8" diameter.
• 5. Order the required quantity of each balance by catalog number (e.g., FM2920).

Differentiators: OEM-compatible 3/8" tubular spiral design, standard-duty for up to 25 lb sash, simple drop-in replacement for metal or plastic tube balances. Upgrade your window repair with the dependable FM2920 tubular spiral balance — order now to ensure a correct-fit replacement.
