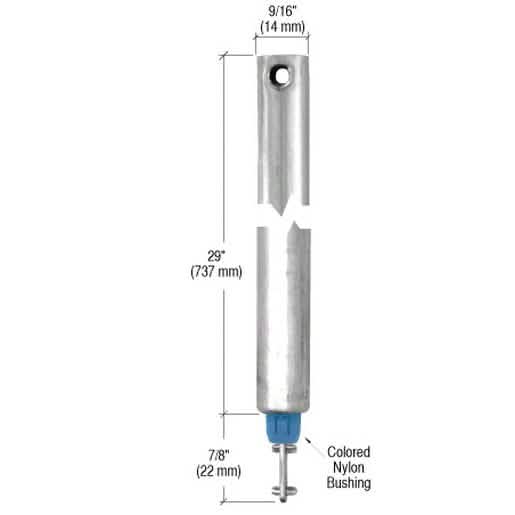

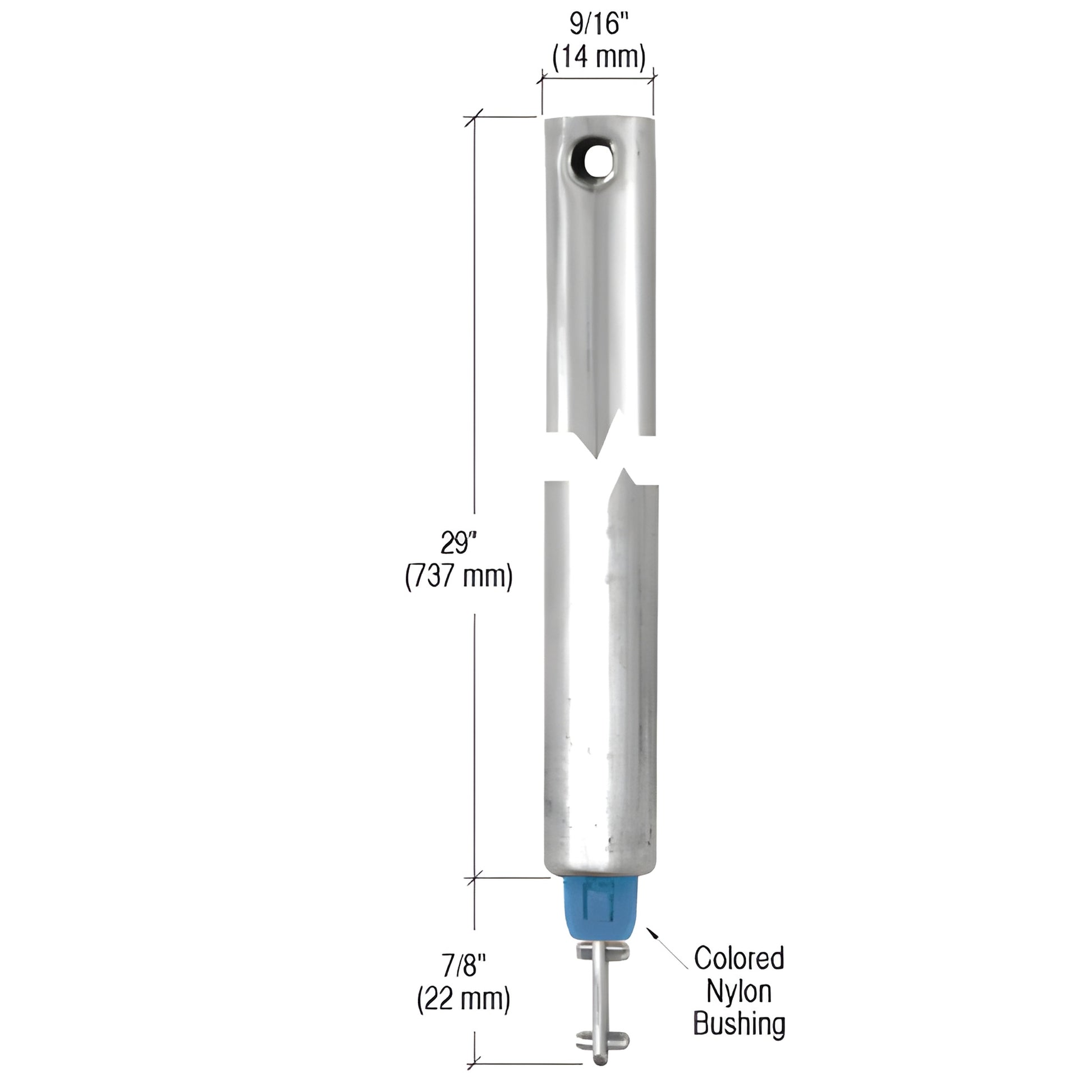

CRL 29 in Spiral Tilt Window Balance Replacement w/ Blue Bushing

• Blue bushing indicates sash load up to 22 pounds (9.5 kg)
• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

This CRL Tubular Spiral Window Balance (SKU: FH2930) is for tilt-type windows and replaces a 9/16" (14 mm) metal or plastic tube balance. The blue nylon bushing identifies a sash load capacity up to 22 lb (9.5 kg). Sold individually; we recommend replacing both balances in the same window at the same time for optimal performance.

How to order tubular spiral window balances:

1. Confirm the tube diameter of the existing metal or plastic balance (9/16" / 14 mm).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing (blue for this model).
4. Verify the rod extension protruding from the nylon bushing matches your current balance.
5. Match tube diameter, tube length, and bushing color to the catalog information. If all match and the rod extension looks the same, this is the correct balance.
