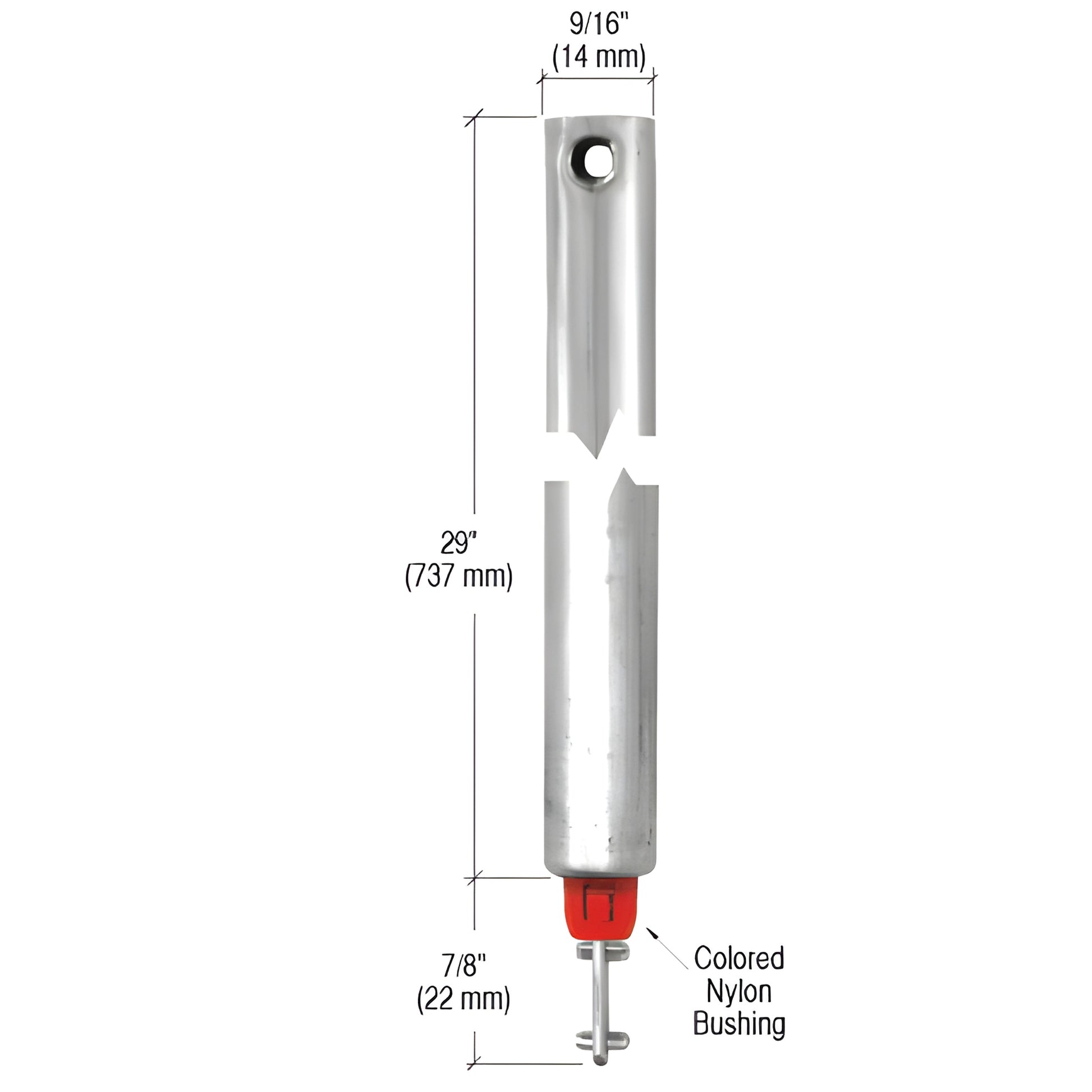

CRL 29 in Spiral Tilt Window Balance Replacement with Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window spiral balance — industry-standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

These CRL Tubular Spiral Window Balances (SKU: FH2920) are designed for tilt-type windows and replace metal or plastic tube balances with a sash load capacity up to 25 pounds (11.3 kg). They also replace the same size spiral balance with a white bushing. Balances are sold individually; for best performance, replace both balances in the window at the same time.

How to order the correct tubular spiral window balance (tilt window replacement):

1. Check the tube diameter of the old metal or plastic tube (9/16" / 14 mm is the industry standard).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (red indicates up to 25 lb sash load).
4. Verify the rod extension protruding from the nylon bushing matches the photo/spec for this model.
5. Match tube diameter, tube length, and bushing color to the information shown next to the catalog number to ensure a correct tilt window spiral balance replacement.

Need help matching your spiral balance? Contact us or add SKU FH2920 to your cart to order now.
