CRL Mab Spindle 3/4 in Collar Height - Replacement Window Hardware
CRL Mab Spindle 3/4 in Collar Height - Replacement Window Hardware
Regular price
$19.87 CAD
Regular price
Sale price
$19.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9050S18
Shipping Weight: 3.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Collar Height
3/4
Handing
Non Handed
Material
Aluminum
Standard Door Cleareance
15/16
Style
Mab Square Tapered
Overview
- For use with all CRL models, Jackson® 900, and DORMA® BTS80 series floor-mounted door closers
- Six available heights from 1/8" to 1-5/16" (3 to 33 mm) to match threshold and finished floor variations
- MAB type (square tapered) and flat tapered spindle options
CRL9050S18 Flat Tapered and "MAB" type spindles are offered in multiple heights to fit varying threshold and finished floor clearances. These spindles work with all CRL models, Jackson® 900, and DORMA® BTS80 floor-mounted door closers. The flat tapered spindle supports center-hung and offset bottom arms compatible with this spindle style and pairs with CRL patch fitting inserts. The MAB style spindle is widely used in Europe and South America, making it a versatile choice for international installations.
Key differentiators:
- Multiple collar heights (1/8"–1-5/16") for precise threshold clearance
- Compatible with common floor-closer models and CRL patch fitting systems
- Available in both flat tapered and MAB (square tapered) styles for regional compatibility
Product Warning:

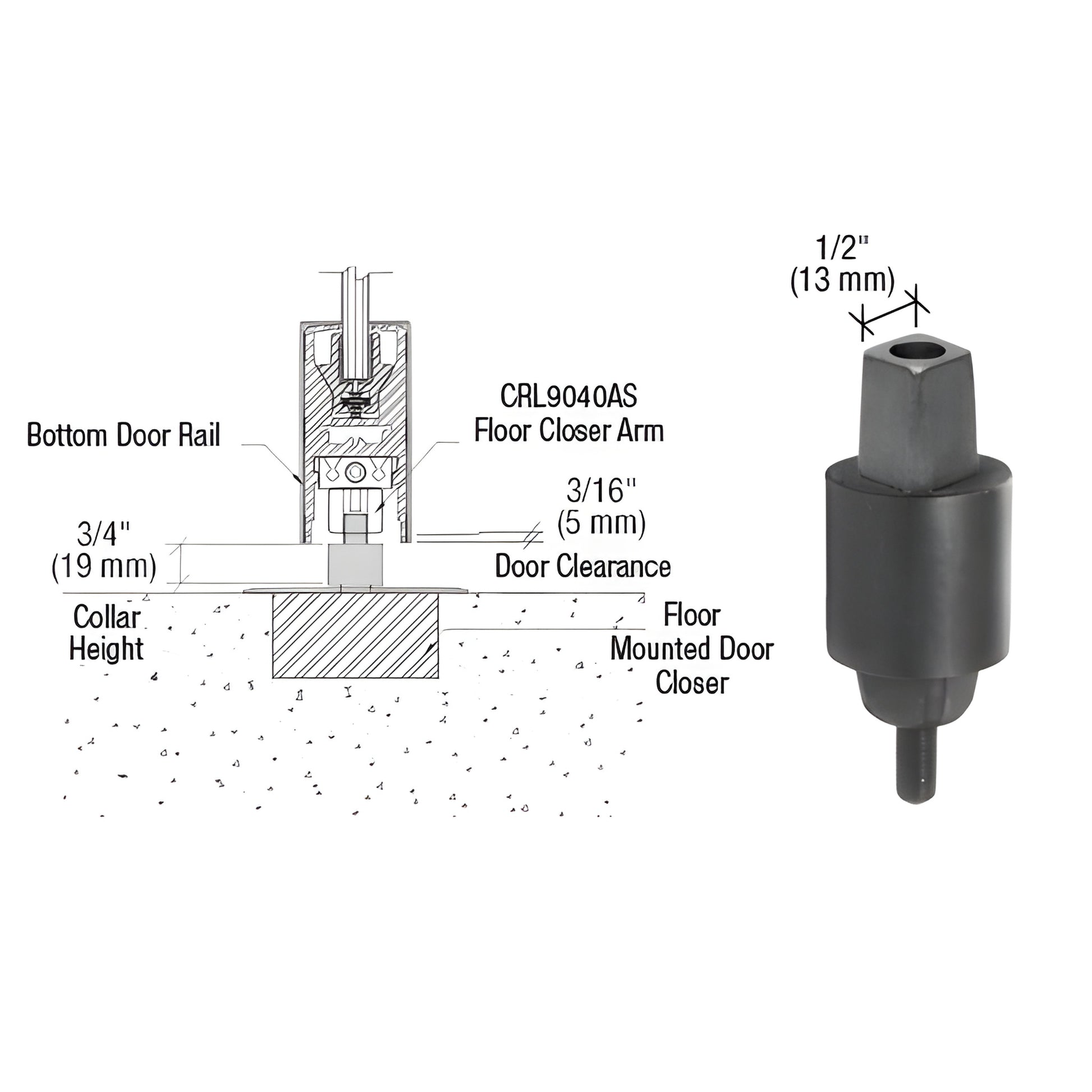

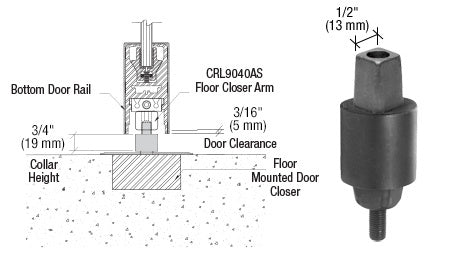

To determine actual door clearance from finished floor, add 3/16" (5 mm) to the collar height.
Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.
Find the correct spindle height for your floor-mounted closer—order CRL9050S18 parts or contact CRL for assistance.
