- Bumped-Formed and Welded 120" (3.05 m) and 168" (4.27 m) stock lengths available in three diameters and four architectural finishes
- Connects to fabricated corners and end caps for glass cap rail systems
- Use connector sleeve No. GR25CSS (SKU: GR257BS)
All

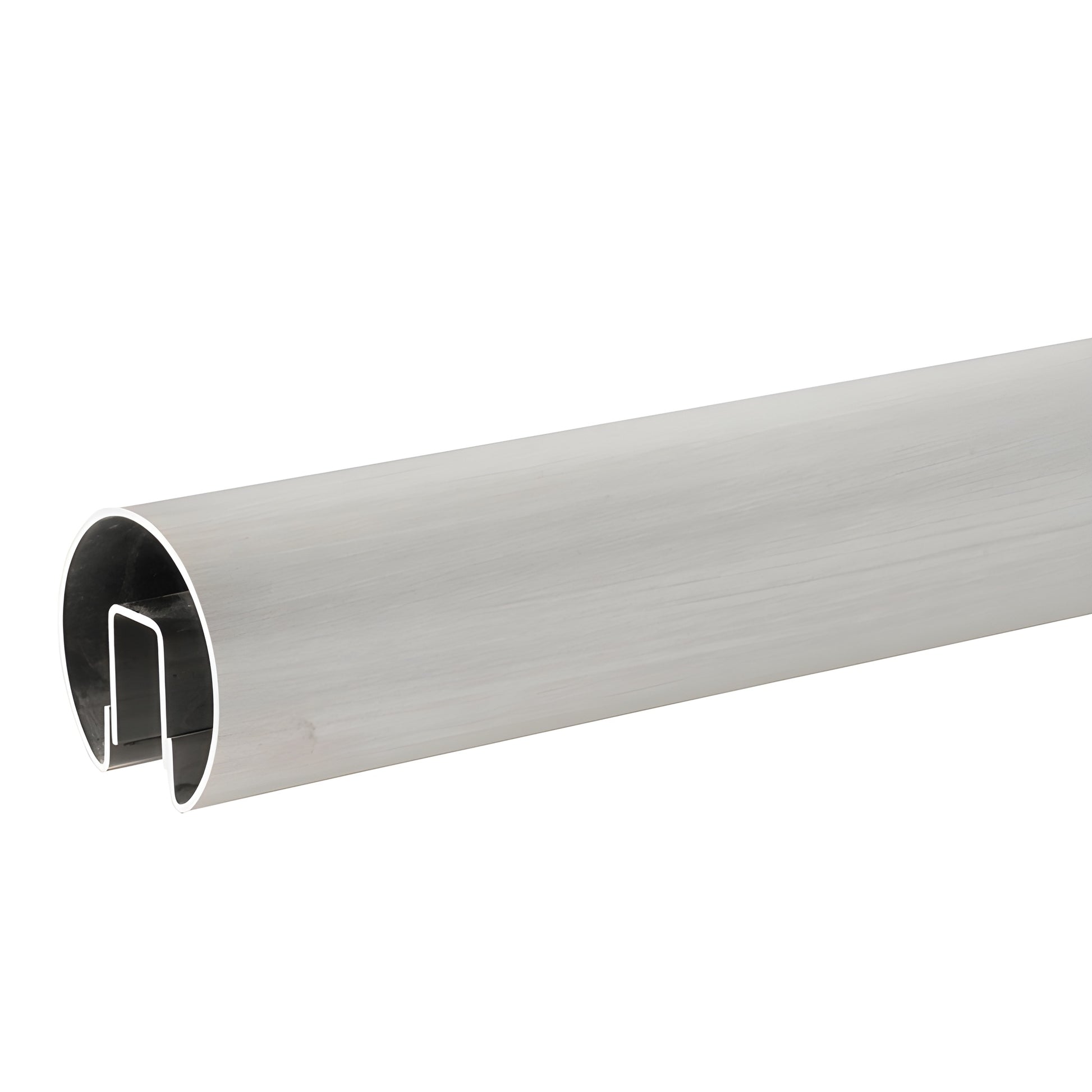

CRL Premium Cap Railings are manufactured with precision tooling to maintain uniform diameters for smooth hairline transitions at splices, corners, and end caps. An internal channel is welded in place to increase strength and stability for fabrication of architectural cap rails. For a secure, permanent bond at all connections, use Cat. No. 32629 Metal Contact Cement.
Use connector sleeves to join cap rails in stainless steel (standard: alloy 304; alloy 316 available by special order) or brass (standard: alloy 260). These stainless steel and brass cap rails are ideal for glass railing systems, storefronts, and architectural railing projects. Contact CRL Railing Technical Sales for availability, lead times, and quotes.
NOTE: When using GR207, GR257, and GR307 Series cap rails, use Cat. No. GR7PV cap rail vinyl and 95CBL silicone to secure the glass.

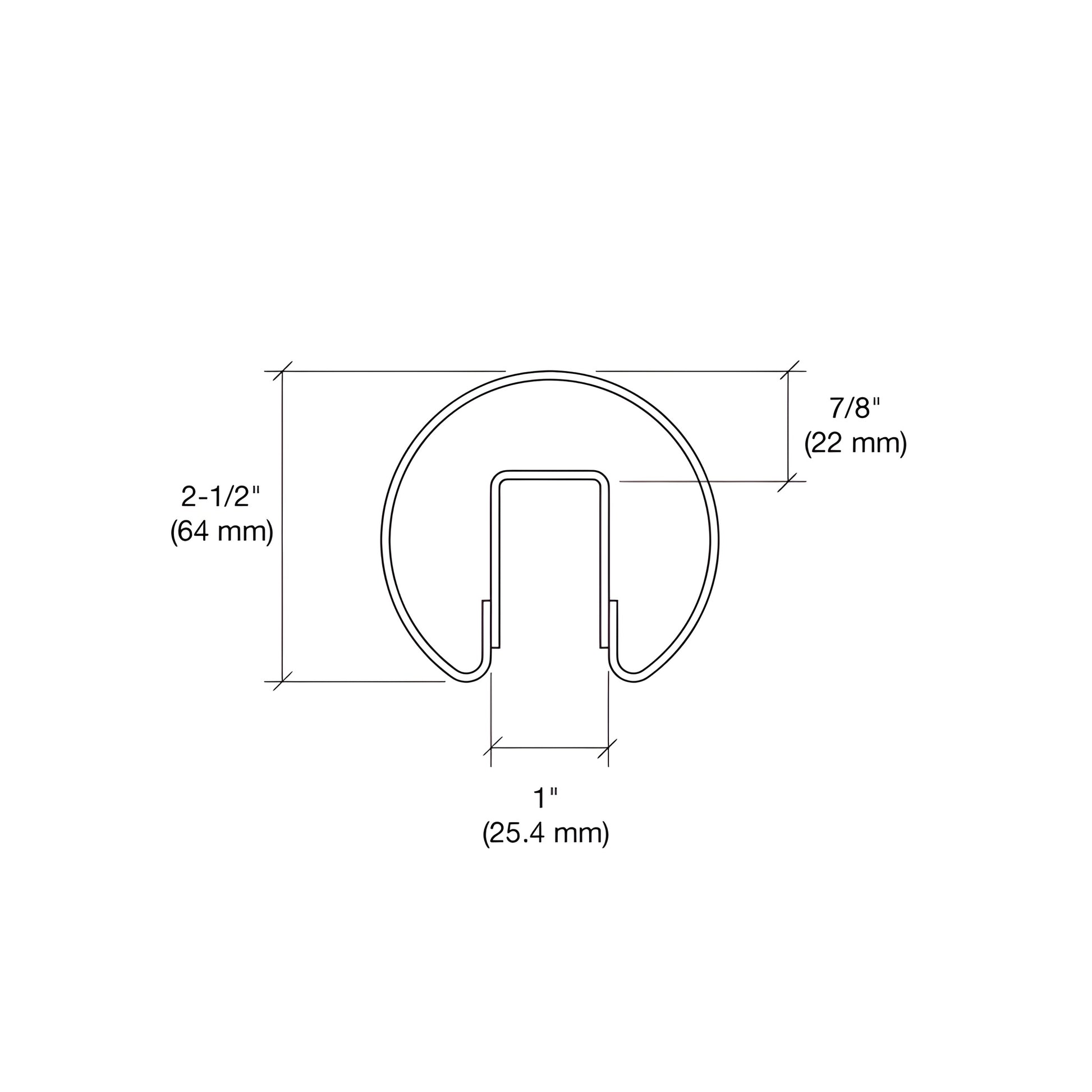

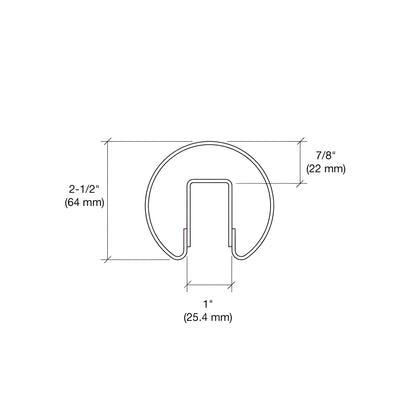

*This dimension is used to calculate glass size. Add desired clearance or allow an additional 1/8" (3.2 mm) if using cap rail vinyl.
Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are the actual product or a close representation; colors may vary by monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
For pricing, availability, or technical help with SKU GR257BS, contact CRL Railing Technical Sales or request a quote today.
