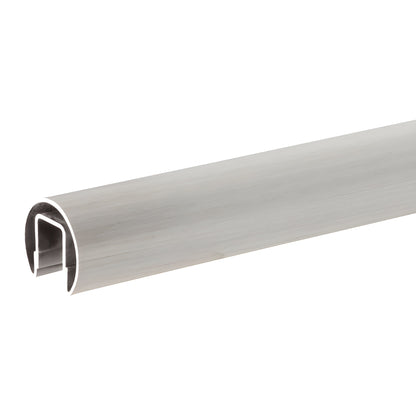

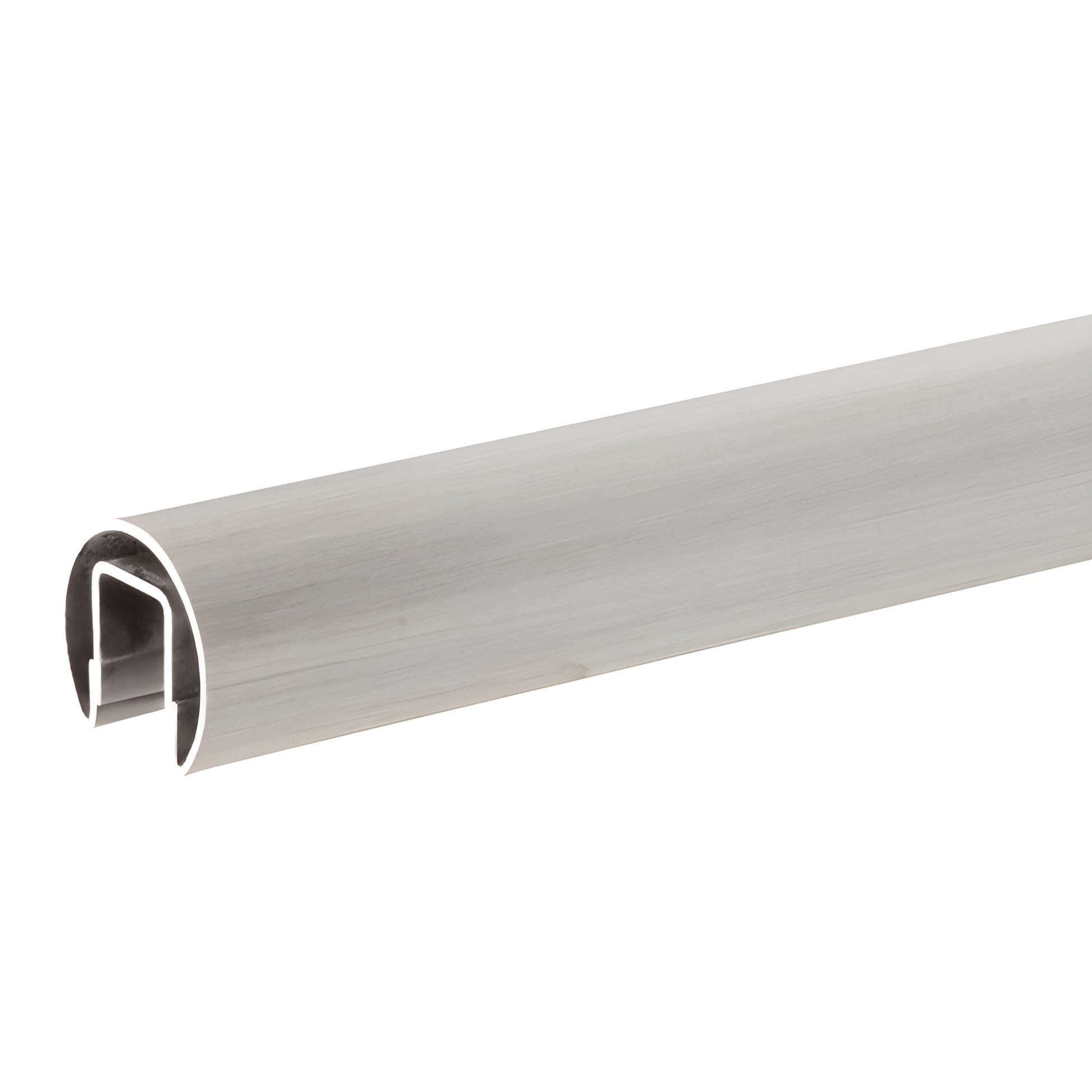

- SKU: GR20BS — Bump-formed and welded cap rails available in 120" (3.05 m) and 168" (4.27 m) stock lengths

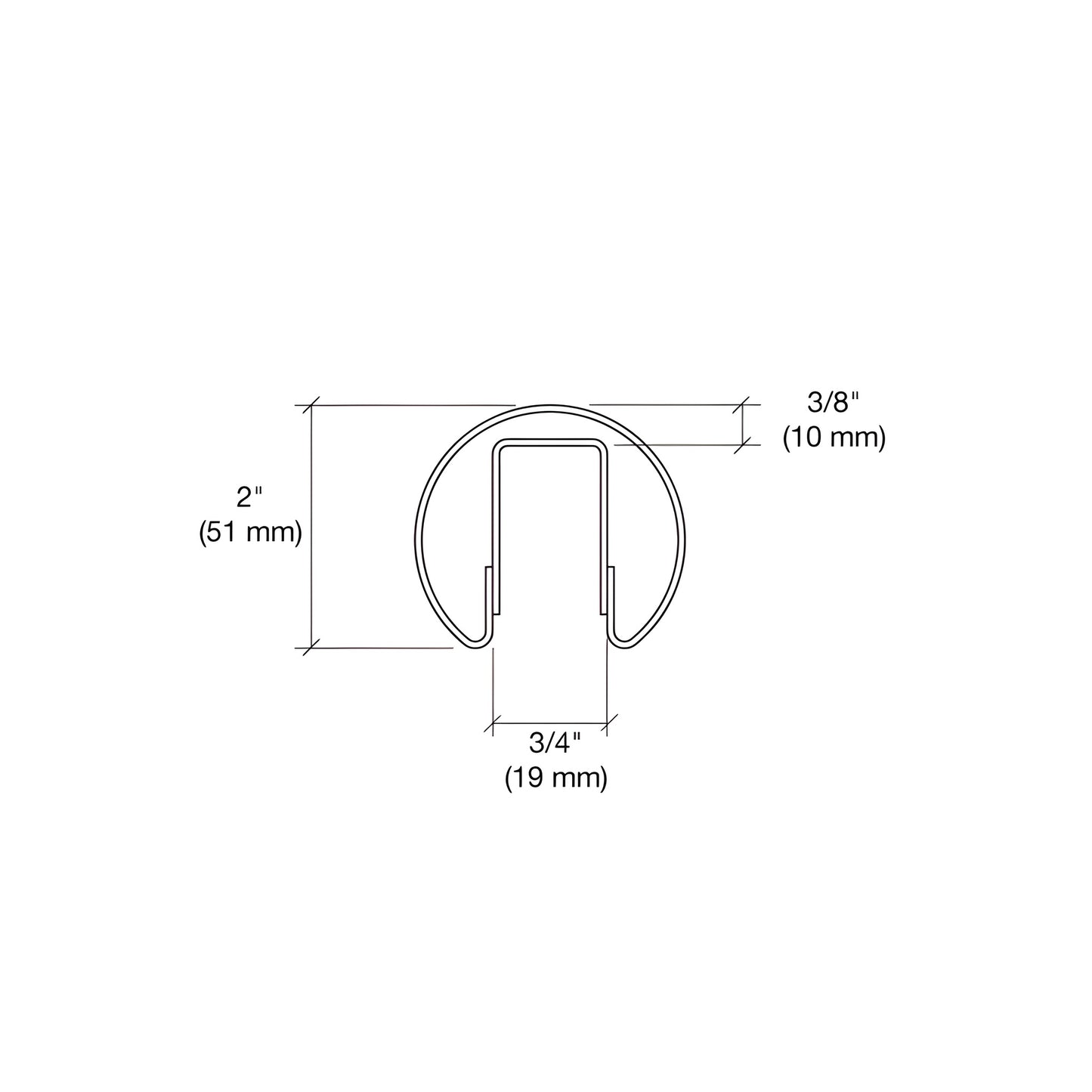

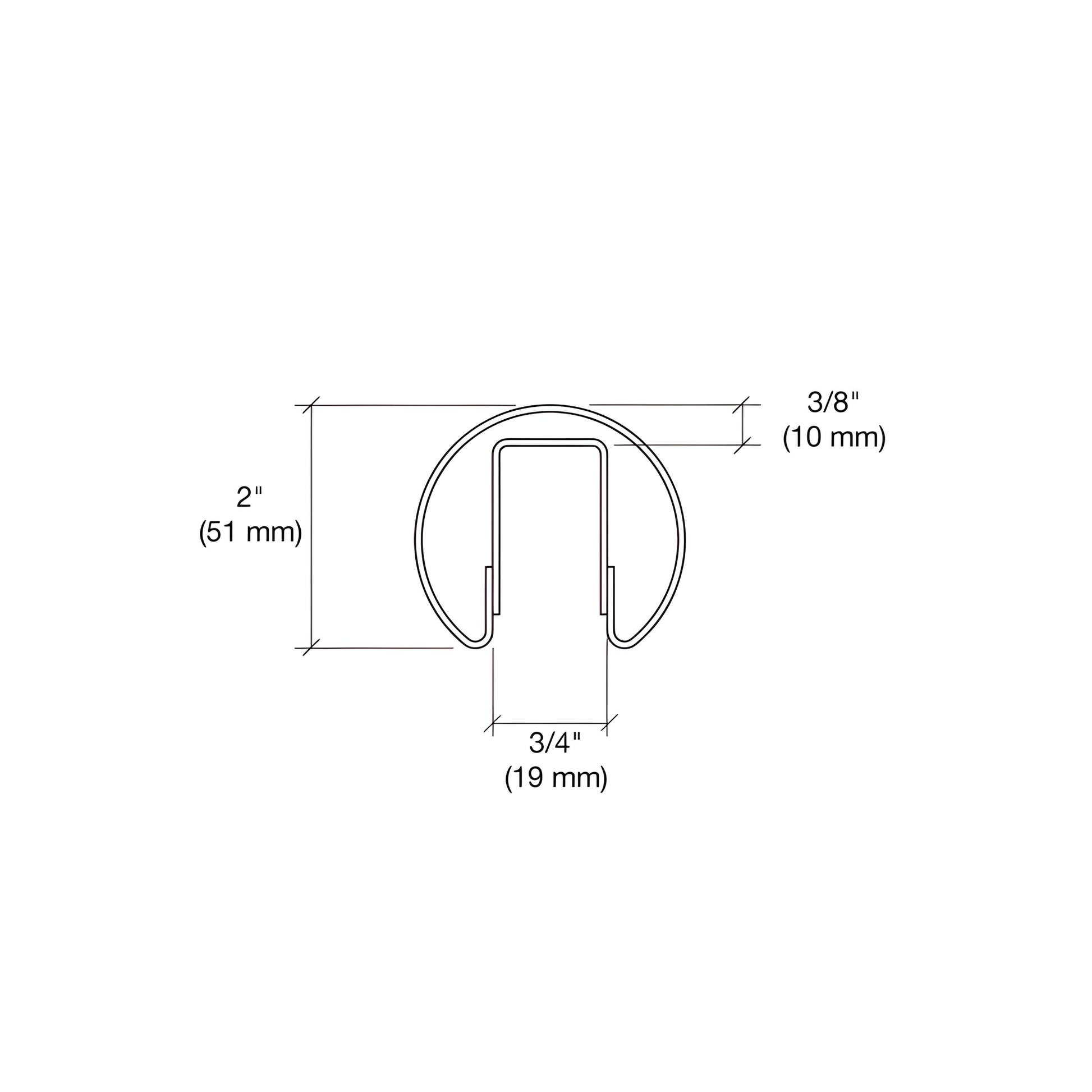

- Available in seven diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
- Four architectural finishes for interior and exterior stainless steel railing applications
- Connects to a variety of fabricated corners and end caps; cut-to-size and custom fabricated lengths also available
- Use Connector Sleeve No. GR20CSS for secure joins
CRL's
GRS™ Premium Cap Rails are manufactured using precision bump-forming for consistent radii, tighter tolerances, and reduced spring-back compared to roll-formed cap rails. Welds on both sides of the internal channel increase strength and stability, producing a straighter, twist-free rail that fits welded corners cleanly and resists discoloration — ideal for stainless steel cap rail applications on glass railings and architectural balustrades.
All CRL Premium Cap Rails are formed with precision tooling for uniform diameters and smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to improve fabrication strength. Use Cat. No.
32629 Metal Contact Cement to achieve a secure, permanent bond at all connections. Connector sleeves are required to join cap rails; use Sleeve No. GR20CSS. Sold in 120" (3.05 m) lengths; 168" (4.27 m) lengths and custom sizes available on request.
Glass compatibility & sealing: When used with 1/2" (12 mm) glass, use Cat. No. GR5PV cap rail vinyl and
95CBL Silicone. For 5/8" (16 mm) glass, secure with 95CBL Silicone and shims. For 3/4" (19 mm) glass, use 95CBL Silicone and appropriate
shims. Please contact
CRL Technical Sales for installation guidance or a quote.
All CRL Premium Cap Railings are stainless alloy 304; stainless alloy 316 is available by special order. For reliable connections, use the specified connector sleeves and Cat. No. 32629 Metal Contact Cement. Find connector sleeves via
Connector Sleeves.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, please request this from CR
