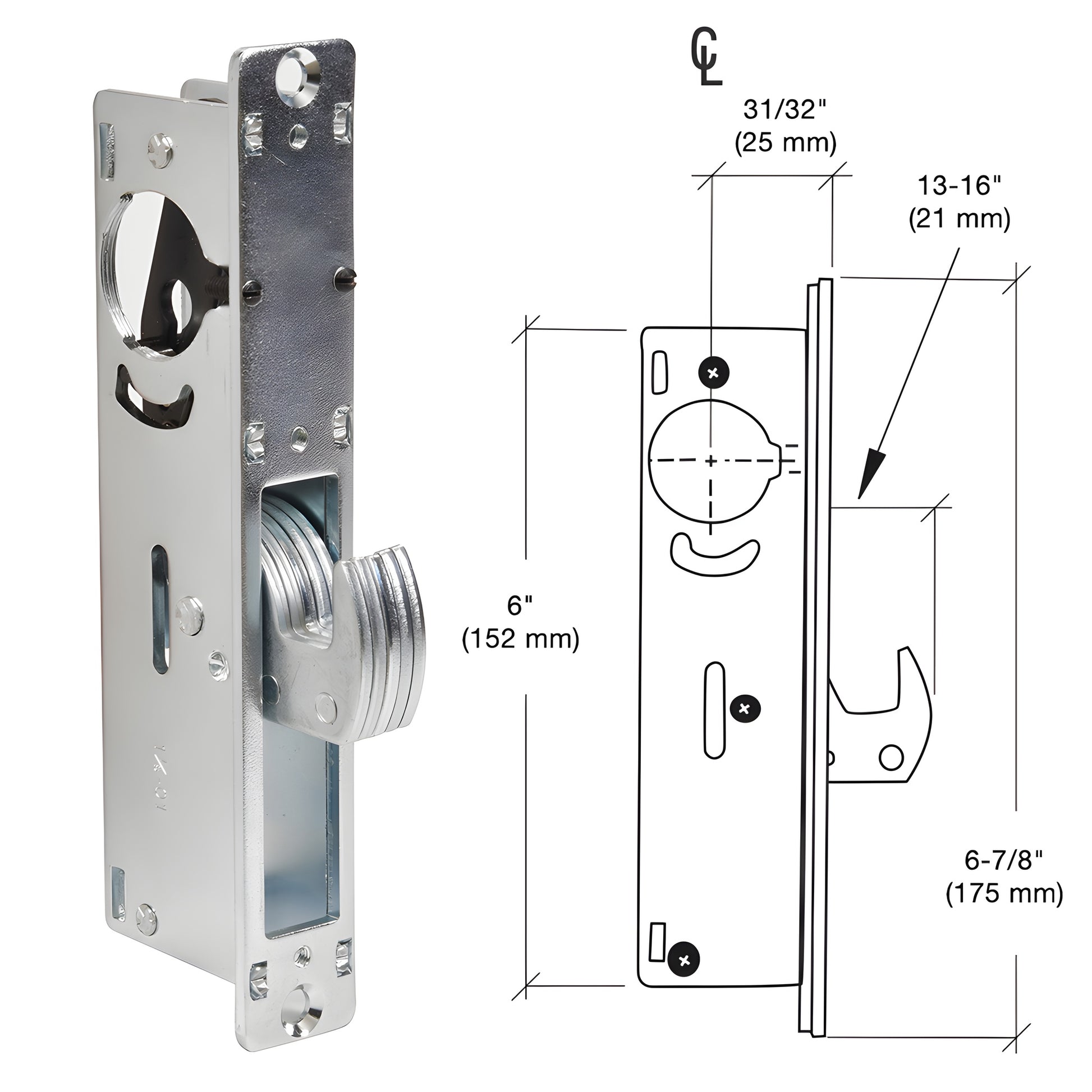

• DL2130A narrow-stile aluminum deadlock, 13/16" hook latch, 31/32" backset, 5-ply laminated steel bolt.
1 1

CRL

CRL 31/32" Narrow Stile Hook Latch Deadlock - Glass Door Lock

CRL 31/32" Narrow Stile Hook Latch Deadlock - Glass Door Lock

$15.86 CAD
$15.86 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DL2130A
Shipping Weight: 2.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Cylinder Backset
31/32
Finish/Color
Aluminum
Handing
Non Handed
Material
Steel
Throw Latch
13/16

Overview

  • 13/16" (21 mm) throw
  • Cylinder backsets: 31/32" or 1-1/8" (25 or 29 mm)
  • Throw bolt: 5-ply laminated steel with center 3-ply hardened case and hardened roller pin to resist hacksaw
  • Accepts standard 1-5/32" (29 mm) diameter mortise key or thumbturn cylinders with AR MS-type cam
  • Optional faceplate available in satin aluminum or bronze anodized finish

CRL Narrow Stile Aluminum Door Deadlock (SKU: DL2130A) — engineered for narrow stile storefront and aluminum door applications where secure, compact deadlocking is required. Features a 13/16" (20.6 mm) hook latch throw and a hacksaw-resistant 5-ply laminated steel bolt with hardened roller pin for enhanced cut resistance. Available with either a 31/32" (25 mm) or 1-1/8" (29 mm) backset and compatible with standard 1-5/32" (29 mm) mortise key or AR MS-type cam thumbturn cylinders. Optional satin aluminum or bronze anodized faceplate finishes complete the installation.


Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor and video card settings.

Order the DL2130A narrow stile deadlock for secure aluminum door installations — contact us to purchase or request a quote.
