CRL 31" Spiral Tilt Window Balance Replacement Red Bushing

• Red bushing indicates sash load up to 25 lb (11.3 kg)

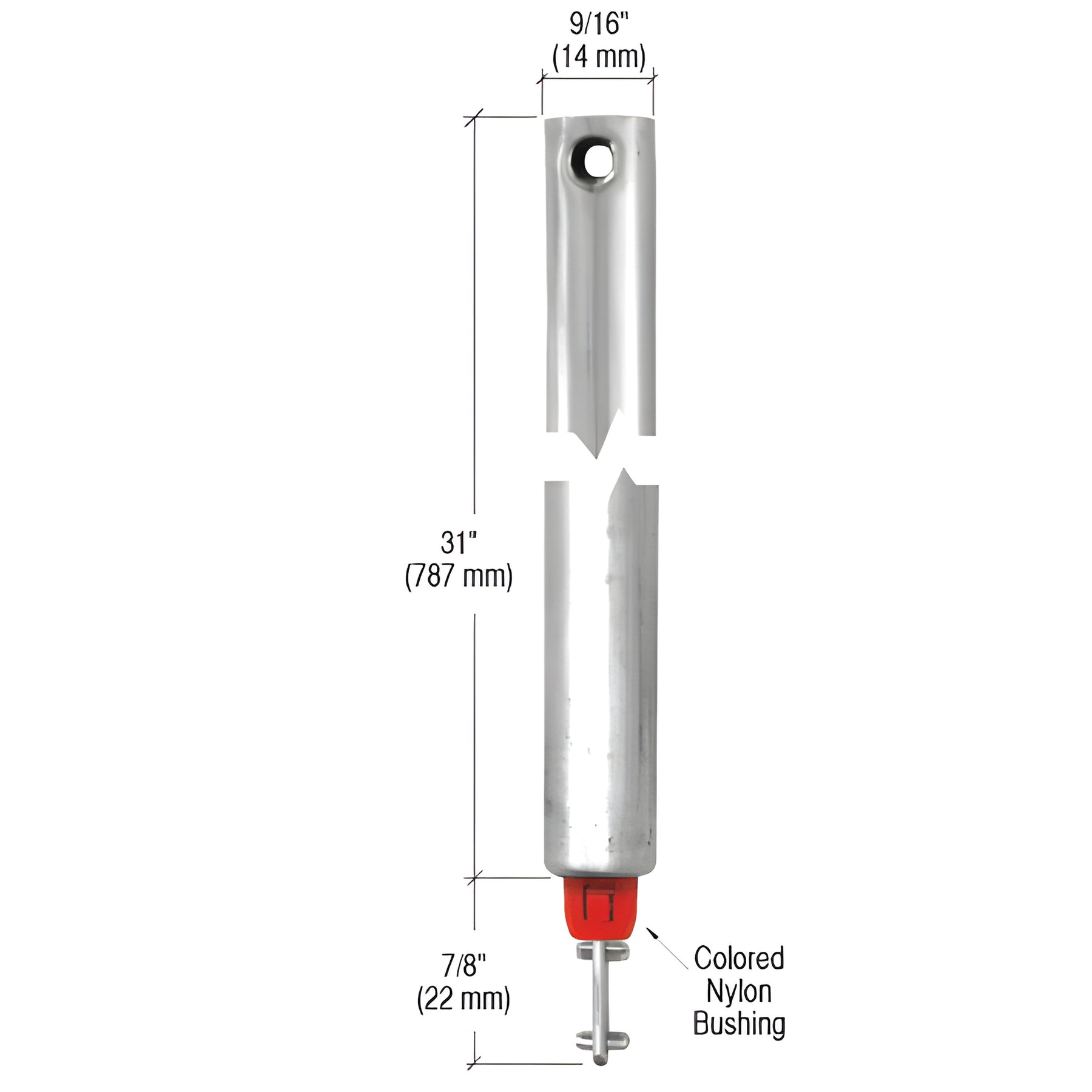

• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

CRL Tubular Spiral Window Balance (SKU: FH3120) — Spiral balance for tilt-type windows with a red nylon bushing rated to support sash weights up to 25 pounds. Replaces the same-size spiral balance with a white bushing and fits standard 9/16" tube applications. Sold individually; we recommend replacing both balances in the window for balanced operation.

How to Order Tubular Spiral Window Balances:

1. Check the tube diameter on the old balance (9/16" / 14 mm for this size).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (red for FH3120).
4. Verify the rod extension protruding from the nylon bushing matches the existing balance.
5. Match tube diameter, tube length, and nylon bushing color to the catalog information. If all match and the rod extension corresponds to the photo, this is the correct balance.

Need help selecting the correct FH3120 tubular spiral balance for your tilt window? Contact our support team or add to cart to order now.
