Product Details
- Self-Closing Black Molded Polymer Heavy-Duty Hinges Designed for Interior and Exterior Use
- For Use with 1/2" (12 mm) Tempered Glass
- 316 Alloy Stainless Steel Mounting Pads
- Tension Adjustable Using Only a Screwdriver

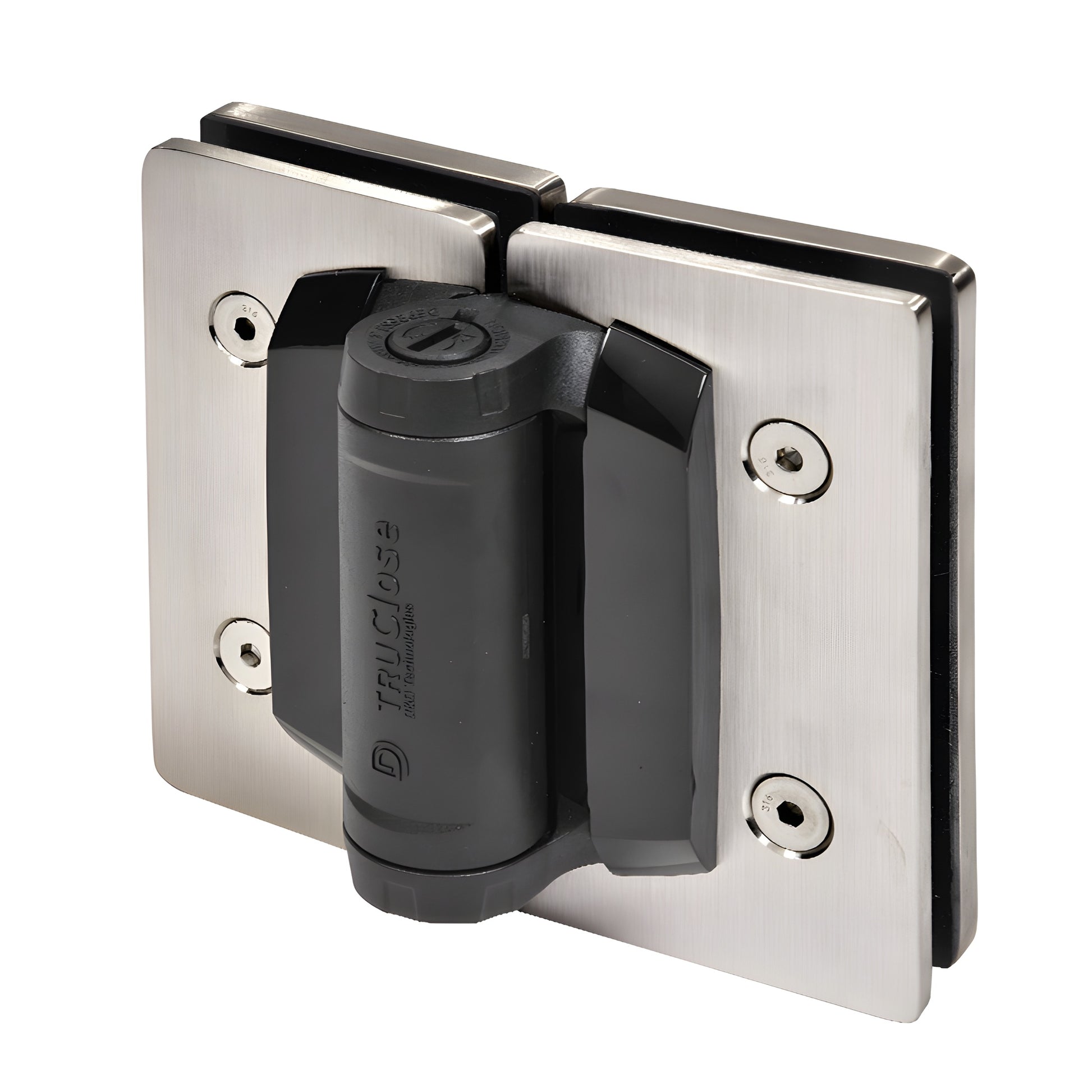

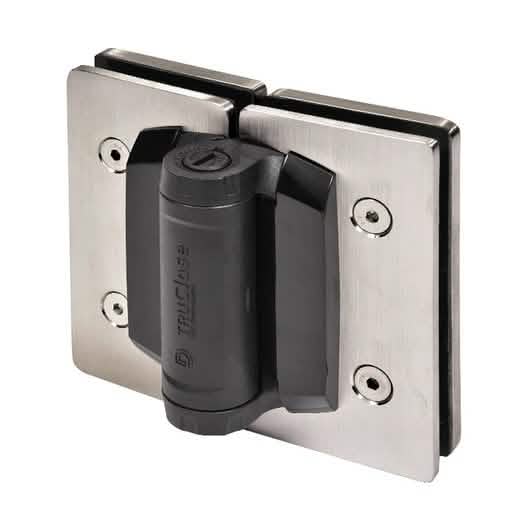

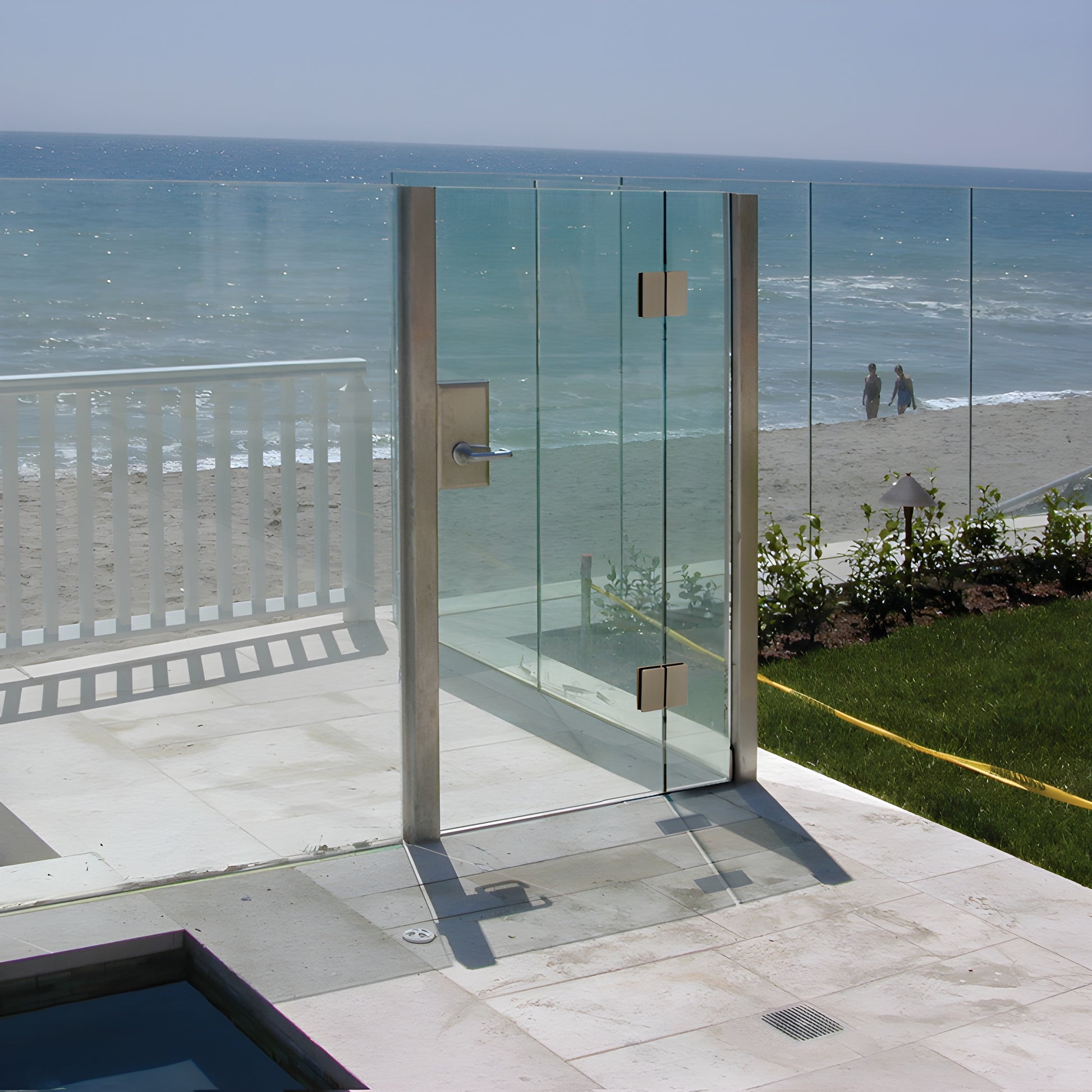

CRL's Single Acting Glass-to-Glass Gate Hinges have been designed for use in pool enclosures, balconies, fencing, and any application where gates are required. Two 11/16" (17 mm) diameter holes are required for each side of the hinge (two on fixed panel and two on the gate). This heavy-duty hinge is set up to support weights from 55 lb (25 kg) to 132 lb (60 kg), and to support gate widths up to 48" (1.22 m) and heights up to 72" (1.83 m).
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
