- Bump-Formed and welded lengths: 120" (3.05 m) and 168" (4.27 m)
- Available diameters: seven sizes from 1-1/2" (38.1 mm) to 4" (101.6 mm)
- Four architectural finishes
- Connects to a variety of fabricated corners and end caps
- Cut-to-size and custom-fabricated lengths available
- Stainless: Alloy 304 standard; Alloy 316 available in two sizes
- Brass: Alloy 260 standard
- Use sleeve No. GR25CSS for connections

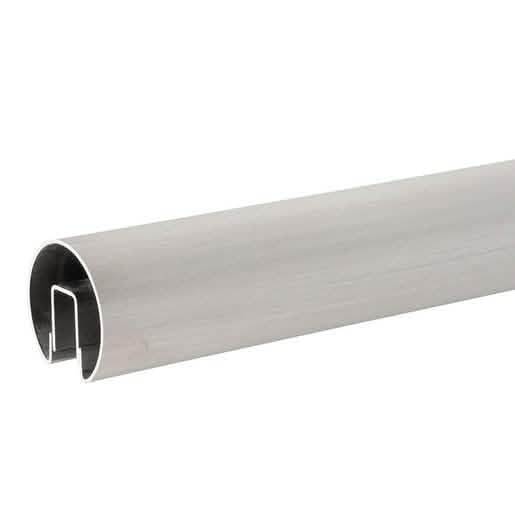

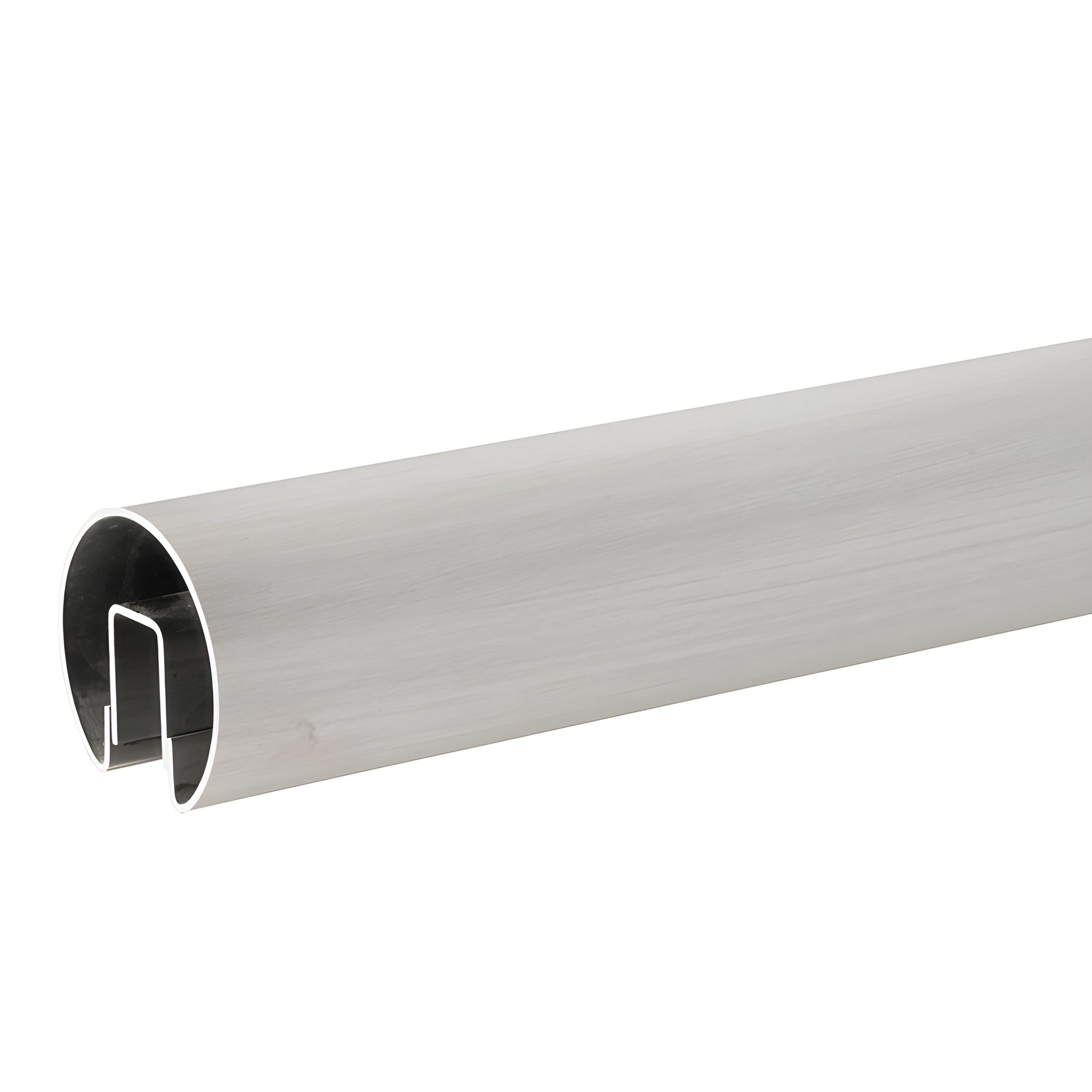

CRL's Premium Cap Rails (SKU: GR25BS6) are manufactured using a precise bump-forming process that delivers tighter tolerances, consistent radius, and superior fit compared with roll-formed cap rails. Welds on both sides of the internal channel add strength and stability, preventing twist, discoloration, spring-back, and stress common to roll-formed products—making these bump-formed premium cap rails ideal for architectural railing and glass guardrail applications where durability and a clean finish matter.
All CRL Premium Cap Rail components are formed with precision tooling to maintain uniform diameters for smooth hairline transitions at splices, corners, and end caps. The welded internal channel increases rigidity for fabrication. Use Cat. No.
32629 Metal Contact Cement to achieve a secure, permanent bond at all connections, and Connector Sleeves (
rail connect sleeve) to join cap rails. Sold in 120" (3.05 m) lengths; 168" available.
Glass securing recommendations: For 1/2" (12 mm) glass use Cat. No. GR5PV Cap Rail Vinyl and
95CBL Silicone. For 5/8" (16 mm) glass use 95CBL Silicone and shims. For 3/4" (19 mm) glass use 95CBL Silicone and
shims. Contact
CRL Technical Sales for application guidance or a quote.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
