CRL 316 Brushed Stainless 2" Square Glass Rail Standoff w/ Mount Plate

• High Grade 316 Stainless Steel square standoffs for glass railings — mounts to wood, concrete or steel
• Custom finishes available; two popular stainless finishes in stock

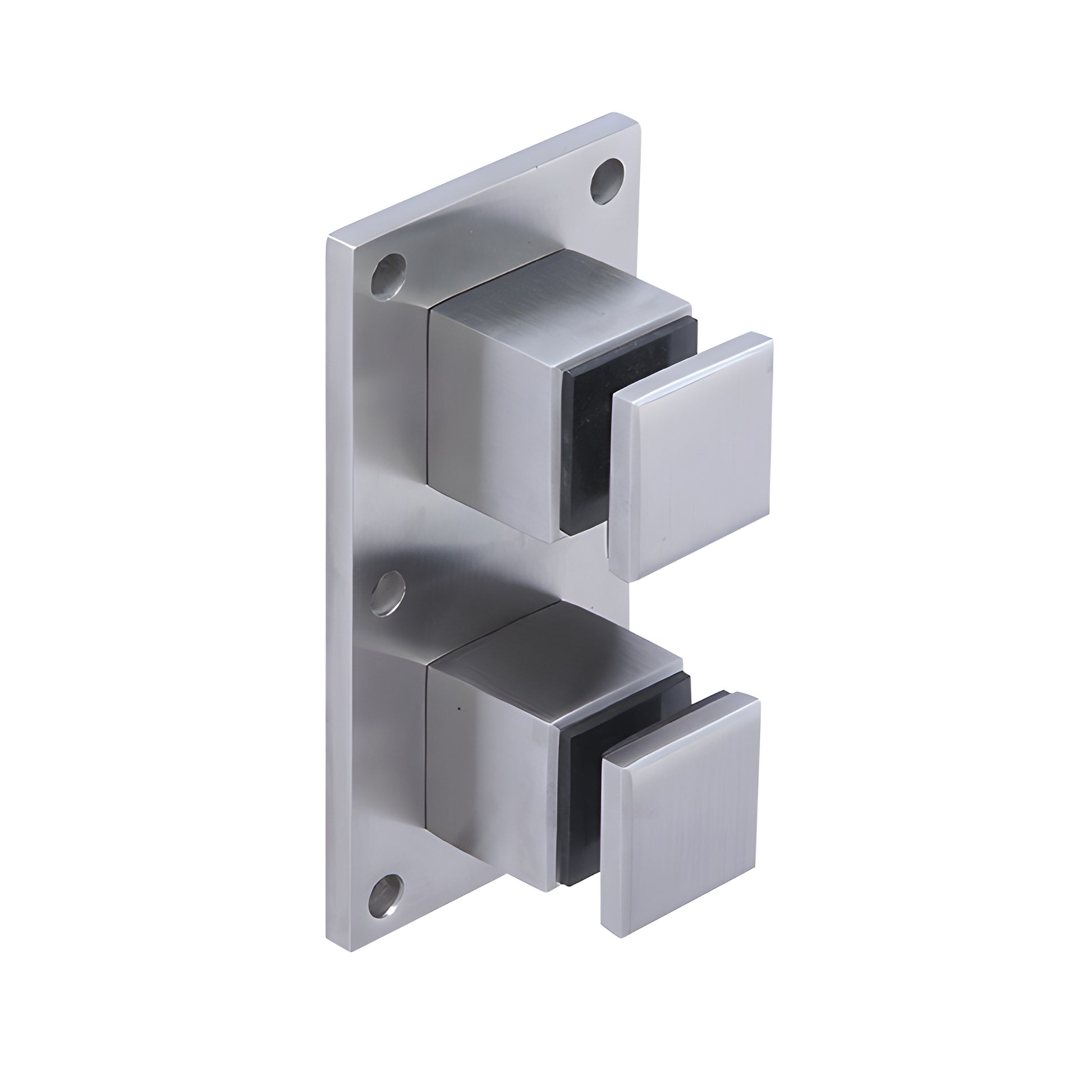

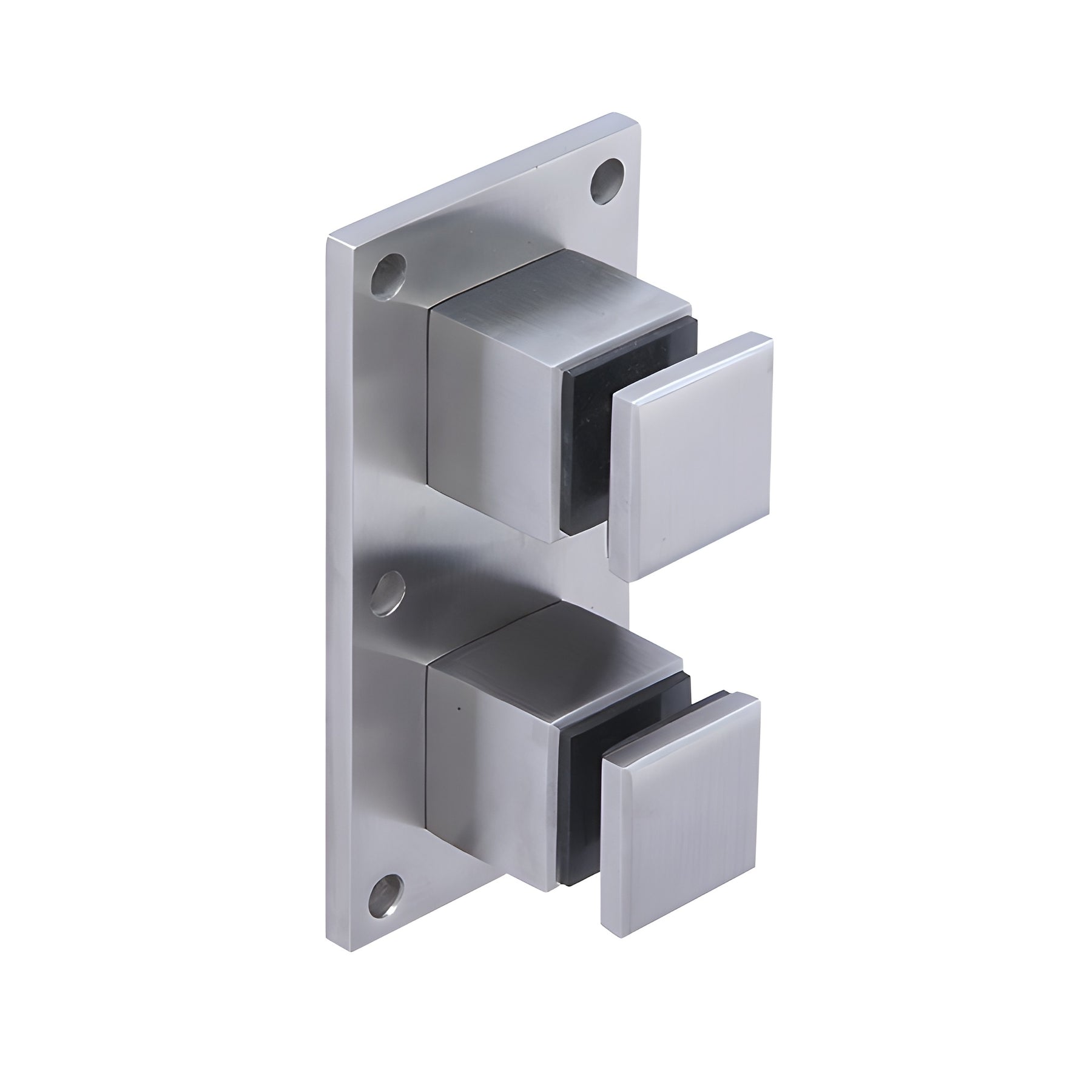

CRL Glass Rail Square Standoff Fittings (SKU: SS0B20BSC) can mount laminated glass up to 27/32" (21.52 mm) thick. This 316-grade stainless steel assembly features 2" (51 mm) square caps on threaded bolts to secure the glass. Each 2" (51 mm) square standoff is fastened to a 3/8" (10 mm) thick stainless steel plate that is pre-drilled for mounting to wood, concrete, or steel substrates. Ideal for glass railing, balustrade, and frameless glass applications where corrosion resistance and a clean modern look are required.

Key Differentiators:

• Marine-grade 316 stainless steel for improved corrosion resistance in exterior and coastal installations
• Pre-drilled 3/8" (10 mm) mounting plate for faster installation
• Square 2" (51 mm) cap design provides a contemporary aesthetic for glass railings and balustrades

SPECIFICATIONS:

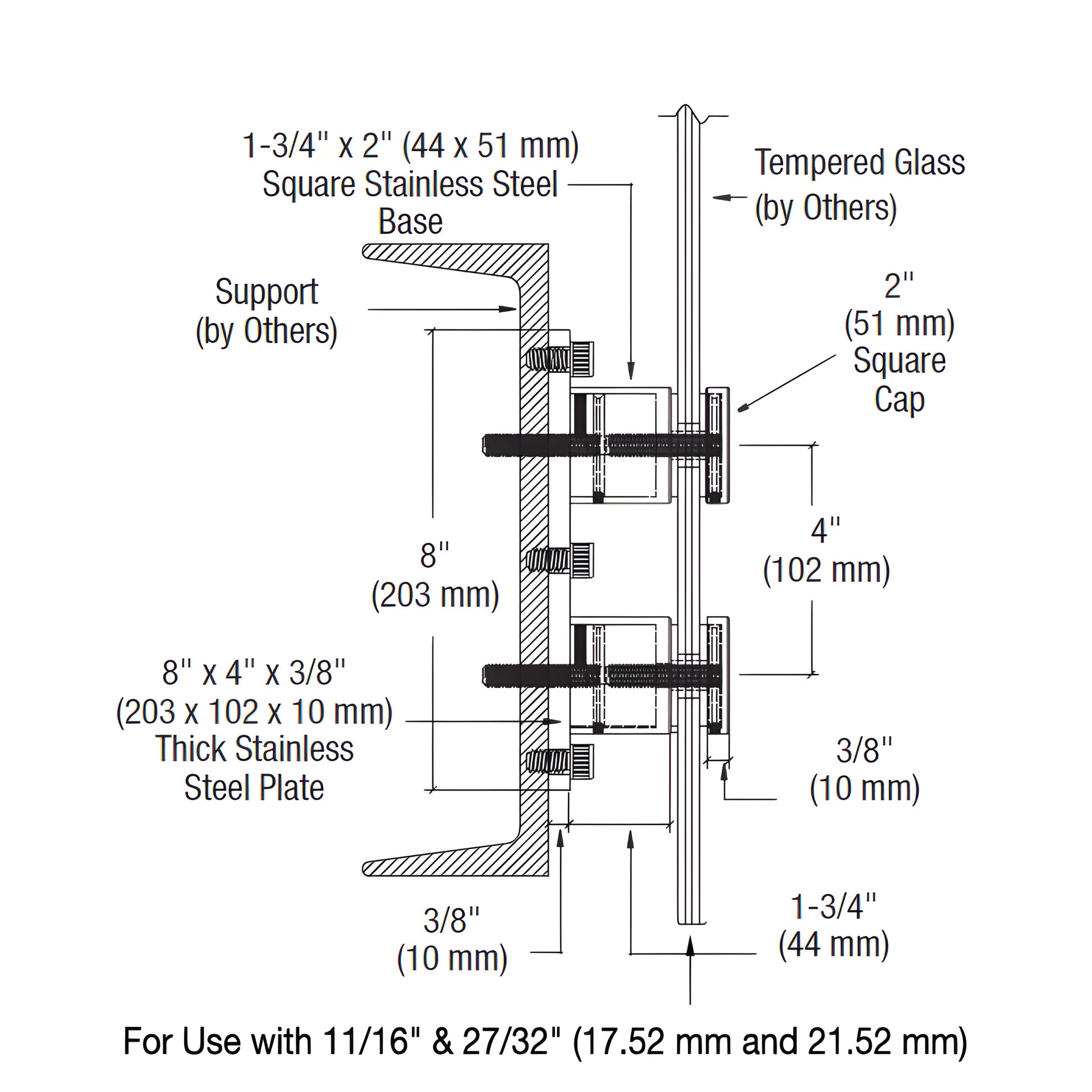

Glass Fabrication: Two 3/4" (19 mm) diameter holes per fitting
Hole spacing between standoffs: 4" (102 mm) — maximum spacing varies by use and mounting conditions

Product Warning:
For use with 11/16" & 27/32" (17.52 mm and 21.52 mm) laminated glass using Kuraray SentryGlas® interlayer. Do not use with raw or annealed glass.

NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.

Stainless Steel Advisory:

Need a custom finish or help with specs for your glass railing project? Contact CRL Customer Service to get a quote or technical assistance.
