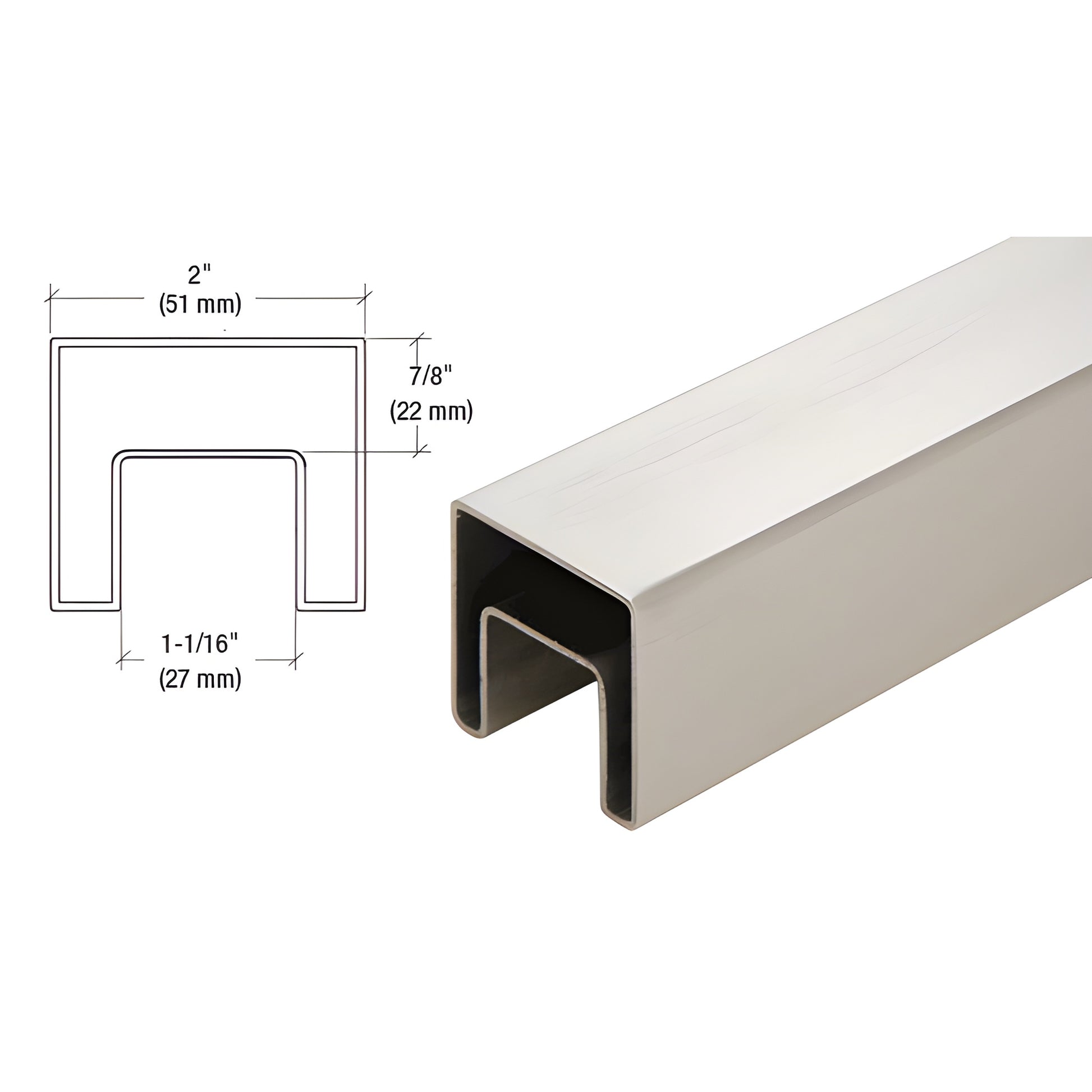

CRL 316 Stainless Steel 2" Square Roll-Formed Brushed Cap Rail 19'8"

• For 1/2" to 27/32" (12 to 21.52 mm) glass
• 316 Grade stainless steel
• 19'-8" (6 m) stock lengths available in two architectural finishes
• Designed for interior or exterior glass railing applications
• Connects to fabricated corners and end caps
• Cut-to-size, custom fabricated lengths, and custom finishes available on special order

CRL Roll Formed Square Cap Rails provide a cost-effective alternative to premium cap rails while delivering the look and performance required for glass railing systems. These 316 stainless steel cap rails support multiple glass thicknesses using interchangeable protective rubber inserts and are roll formed for uniform squareness, ensuring smooth hairline transitions at splices, corners, and end caps. Use only specified Roll Formed Square Cap Railing Connector Sleeves with Cat. No. 7649 Primer and Cat. No. 32629 Metal Contact Cement for a secure, permanent bond.

SRF15 Series — 1-1/2" (38 mm) square cap rail for 1/2", 9/16", and 5/8" (12, 13.52, 16 mm) glass.
SRF20 Series — 2" (51 mm) square cap rail for 1/2", 9/16", 5/8", 11/16", and 27/32" (12, 13.52, 16, 17.52, 21.52 mm) glass. (SKU: SRF20BS)

Product Warning:

NOTE: CRL Roll Formed cap rails, end caps, corners, connecting sleeves, and rubber inserts are style-specific and cannot be used with other CRL cap railing systems.

Stainless Steel Advisory:

For pricing, lead times, or to order SRF20BS 2" square cap rail for glass railing systems, contact CRL or your local distributor today.
