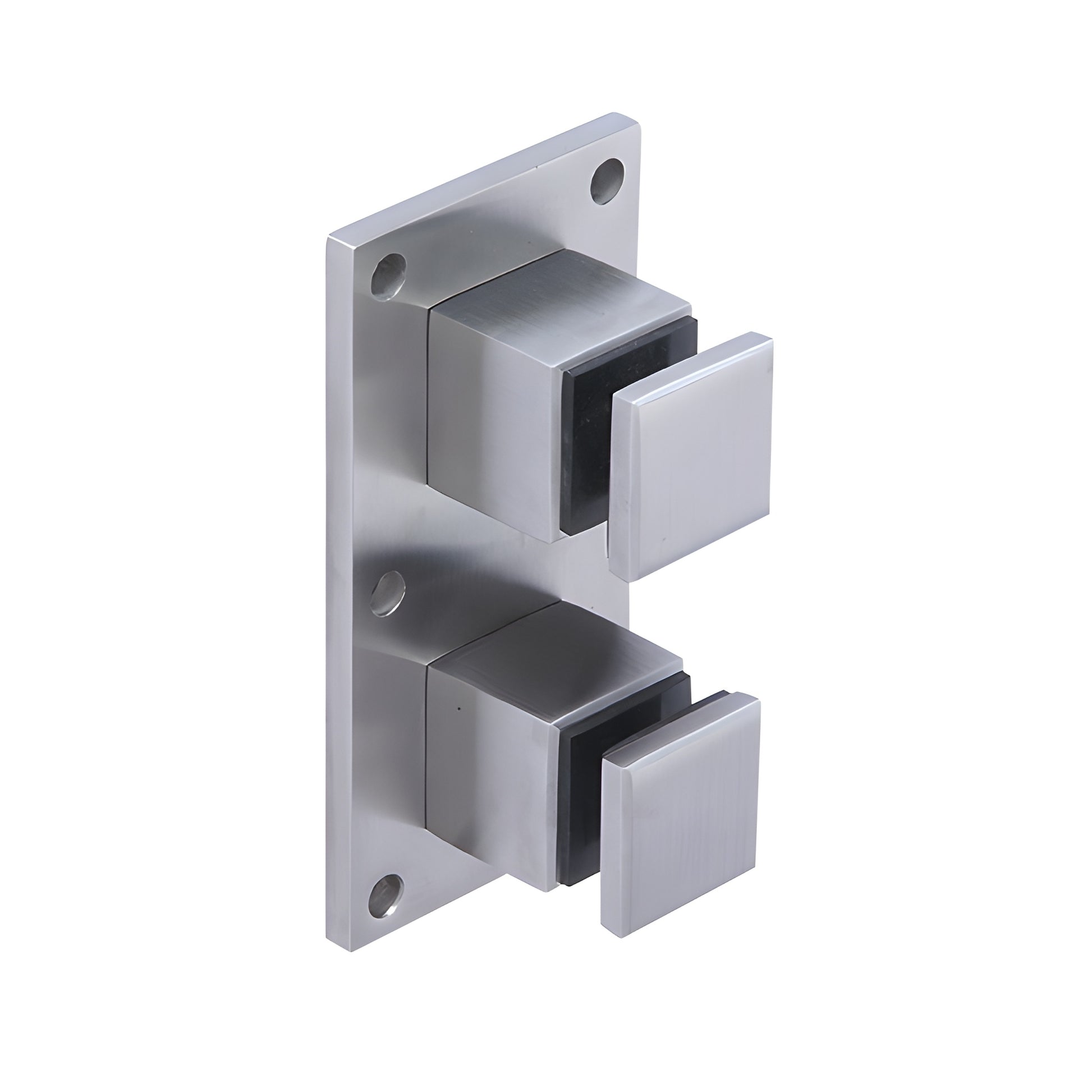

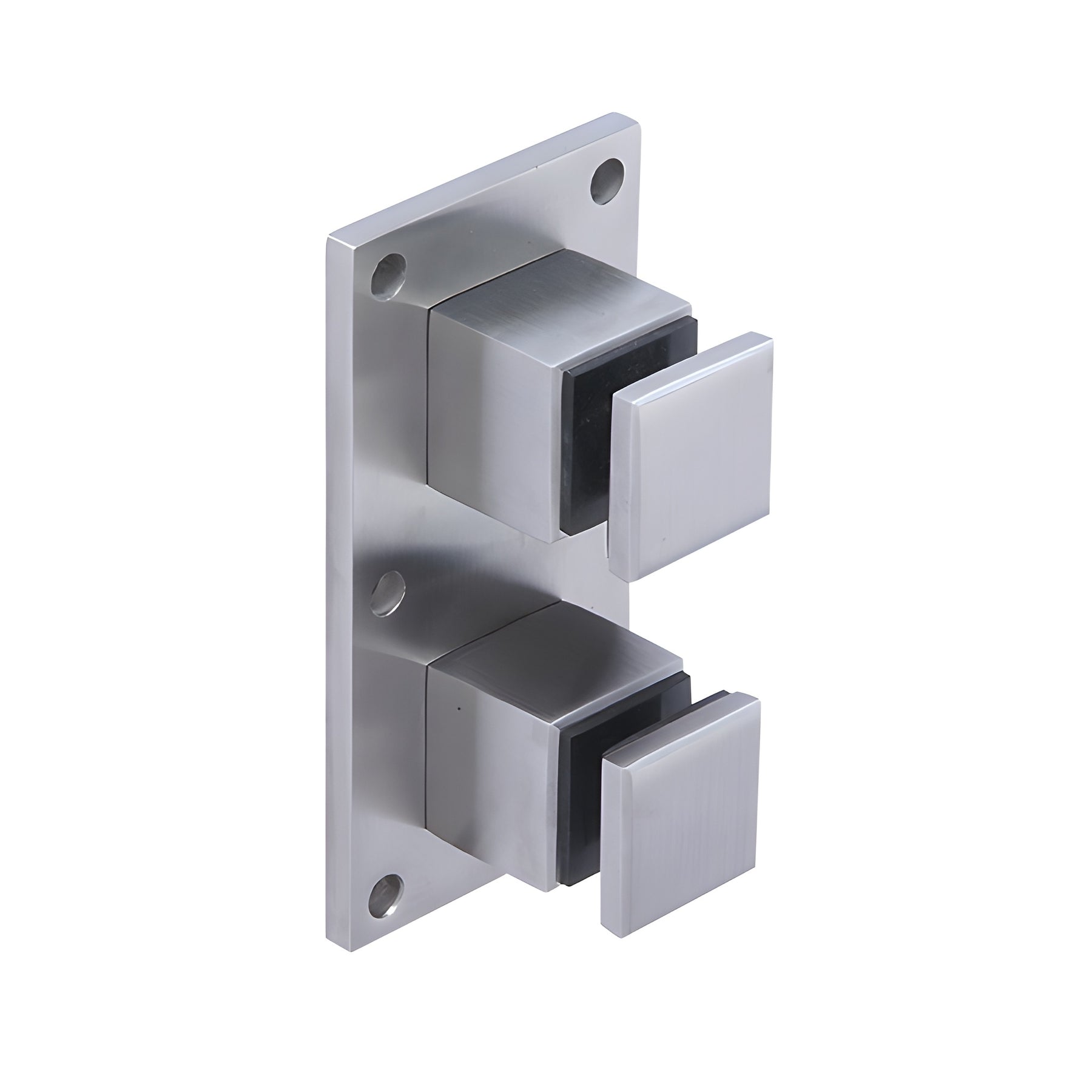

CRL 316 Brushed Stainless 2in Square Glass Standoff, Mounting Plate
CRL 316 Brushed Stainless 2in Square Glass Standoff, Mounting Plate
Regular price
$533.85 CAD
Regular price
Sale price
$533.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SS0B20BS
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Height
8 in. (203 mm)
Base Plate Length
4 in. (102 mm)
Base Plate Thickness
3/8 in. (10 mm)
Cap Height
2 in. (51 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Overview
- High Grade 316 Stainless Steel designed to mount to wood, concrete, or steel
- Custom finishes available; two popular stainless finishes in stock
CRL Glass Rail Square Standoff Fittings (SKU: SS0B20BS) are 316-grade stainless steel square standoffs for glass railing and balustrade installations. Each fitting secures laminated glass up to 27/32" (21.52 mm) thick using 2" (51 mm) square caps on threaded bolts. The standoffs attach to a pre-drilled 3/8" (10 mm) stainless steel mounting plate for secure installation on wood, concrete, or steel substrates. Ideal for exterior and interior glass rail systems requiring corrosion-resistant 316 stainless steel standoffs.
SPECIFICATIONS:
Glass Fabrication: Two 3/4" (19 mm) diameter holes per fitting
Spacing: Hole spacing between standoffs is 4" (102 mm); maximum spacing depends on use and mounting conditions
Product Warning:
For use with 11/16" & 27/32" (17.52 mm and 21.52 mm) laminated glass using Kuraray SentryGlas® interlayer. Do not use with raw or annealed glass.
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Stainless Steel Advisory:
316 Stainless Steel is highly corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Choose SS0B20BS 316 stainless steel square standoffs for durable, low-maintenance glass railing installations—contact CRL to order or request finish options.
Specifications
CAD Drawings - dwg
